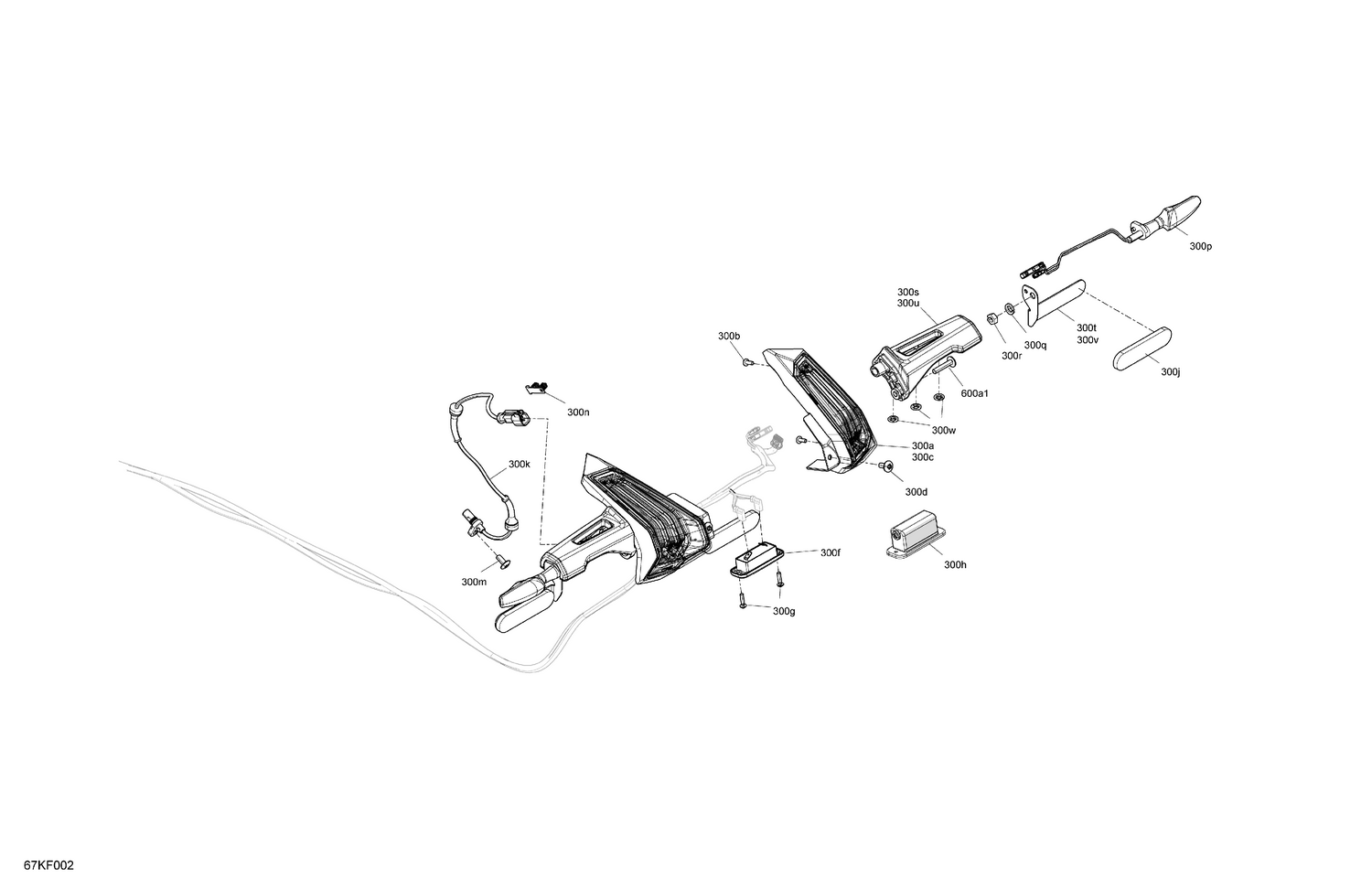

08- Electric - Taillights
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 300a | 710010213 | LH Rear Tail Light |
| 300b | 250001131 | Torx Truss PT K40 x 12 |
| 300c | 710010214 | RH Rear Tail Light |
| 300d | 250000789 | Torx Truss M6X14 |
| 300f | 710005501 | License Light |
| 300g | 250000287 | Flange Torx Screw K40 X 16 |
| 300h | 710008469 | Rear Connector Guard |
| 300j | 705015551 | Red, Reflector |
| 300k | 710007283 | Speed Sensor |
| 300m | 250000789 | Torx Truss M6X14 |
| 300n | 278002910 | Clip (double dart) |
| 300p | 710008471 | Amber, Turn Signal Light |
| 300q | 710006520 | Slotted Washer |
| 300r | 710006521 | Slotted Nut |
| 300s | 710006132 | LH Rear Turn Signal Support |
| 300u | 710006133 | RH Rear Turn Signal Support |
| 600a1 | 250000843 | Torx Truss Screw M6 X 30 |
