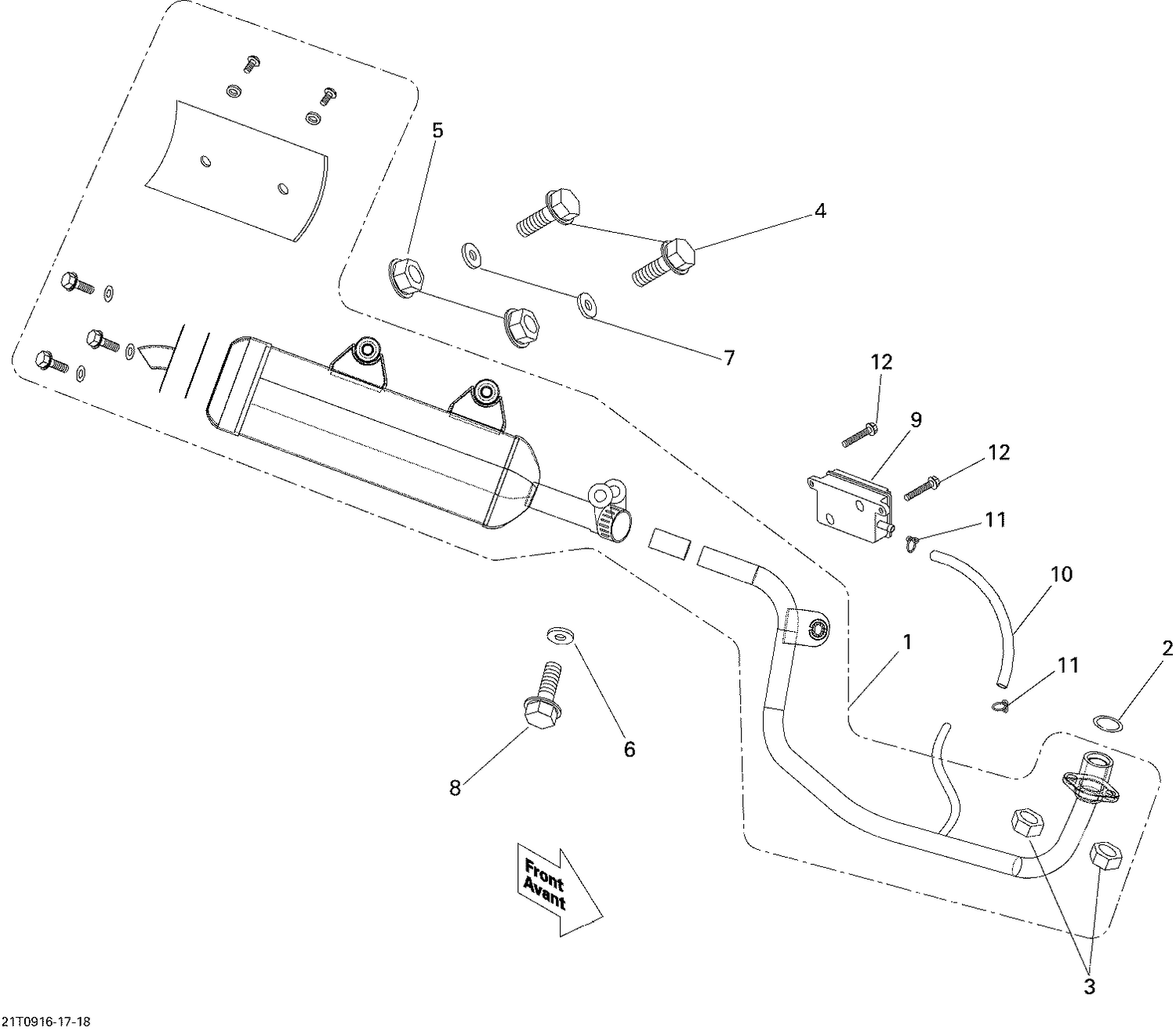

01- Exhaust System
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V18301DGF110LL | Muffler This part replaces V18301DGF060. |
| 2 | V18291MAD000 | Exhaust Pipe Gasket |
| 3 | V940010600001 | NUT M6 - Call your local BRP dealership This part replaces V9400106000. |
| 4 | 207683544 | Hex. Flange Screw M8 X 35 |
| 5 | 232581414 | Hex. Elastic Stop Nut M8 |
| 6 | 234181601 | Lock Washer 8 mm, Stainless |
| 7 | V941010816015LL | Washer This part replaces V941010816015. |
| 8 | 207684044 | Hex. Flange Screw M8 X 40 |
| 9 | V18350DGF02HLL | Air Cleaner Box This part replaces V18350DGF01H. |
| 10 | V18401DGF02HLL | Air Hose This part replaces V18401DGF00H. |
| 11 | V0940115101 | Clip |
