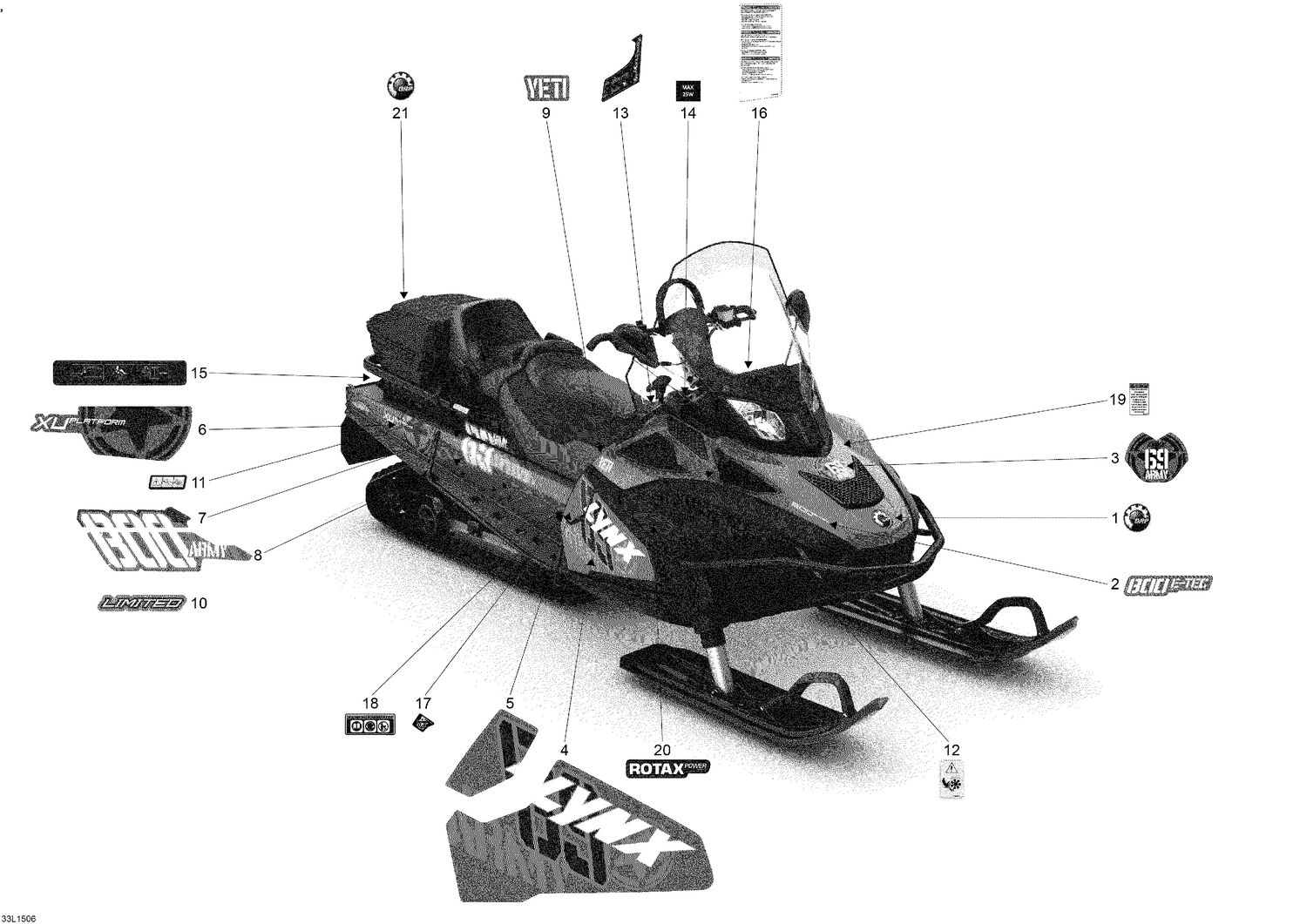

09- Decals
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516008739 | Logo 68mm "BRP" This part replaces 219903609. |
| 2 | 516006886 | Hood Decal |
| 3 | 516005955 | Hood Decal |
| 4 | 516005956 | LH Sidepanel Decal |
| 4 | 516005957 | RH Sidepanel Decal |
| 5 | 516005958 | LH Back Sidepanel Decal |
| 5 | 516005959 | RH Back Sidepanel Decal |
| 6 | 516005960 | LH Back Frame Decal |
| 6 | 516005961 | RH Back Frame Decal |
| 7 | 516006882 | LH Storage Box Decal |
| 7 | 516006883 | RH Storage Box Decal |
| 8 | 516006884 | LH Middle Frame Decal |
| 8 | 516006885 | RH Middle Frame Decal |
| 9 | 516005964 | LH/RH Accesspanel Decal |
| 10 | 516006902 | LH/RH Limited Decal |
| 11 | 516005111 | Backseat Instruction Decal |
| 12 | 516003923 | WARNING DECAL - Call your local BRP dealership |
| 13 | 516004294 | Transmission Instr. Label |
| 14 | 516003918 | Power Outlet Decal |
| 15 | 516003886 | WARNING DECAL, TOWING - Call your local BRP dealership |
| 16 | 516006403 | Instr./Warning (FI/SWE/EN) Decal |
| 17 | 516003925 | Oil Checking Label |
| 18 | 516003027 | WARNING DECAL, PICTOGRAM - Call your local BRP dealership |
| 19 | 516005583 | WARNING DECAL, INJECTORS - Call your local BRP dealership |
| 20 | 516006331 | Rotax Power Decal |
