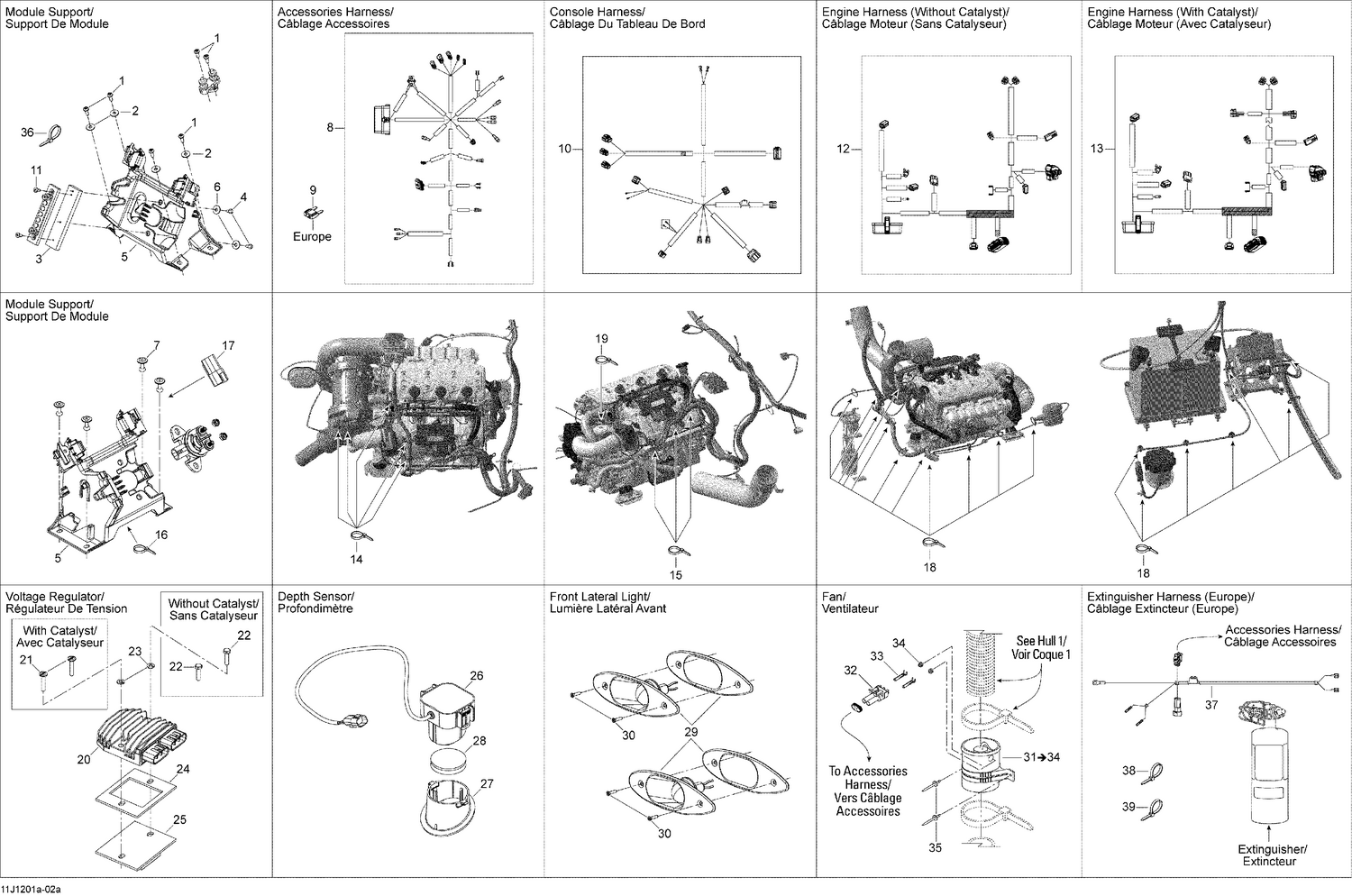

| Ref | Part Number | Description |
|---|
| 1 |
204100073 |
SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership |
| 2 |
234052600 |
Flat Washer 5 mm, Stainless |
| 3 |
Not |
Available As Spare Part - Plate 3/8" |
| 4 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 5 |
278002699 |
MODULE SUPPORT - Call your local BRP dealership |
| 6 |
234052600 |
Flat Washer 5 mm, Stainless |
| 7 |
293150123 |
Pop Rivet 3/16" |
| 8 |
278002661 |
Accessories Harness |
| 10 |
278002827 |
CONSOLE HARNESS - Call your local BRP dealership |
| 11 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 13 |
XXX |
Not Available As Spare Parts |
| 14 |
XXX |
Not Available As Spare Parts |
| 15 |
293750027 |
Tie-Rap 206 mm |
| 16 |
293750002 |
Tie Wrap 142 mm |
| 17 |
278002704 |
Diagnostic Connector This part replaces 278002148. |
| 18 |
414115200 |
Tie-Rap 180 mm |
| 19 |
293750002 |
Tie Wrap 142 mm |
| 20 |
710001103 |
Voltage Regulator |
| 21 |
XXX |
Not Available As Spare Parts |
| 23 |
211200025 |
Lock Washer 1/4” |
| 24 |
204471293 |
SEAL - Call your local BRP dealership |
| 25 |
204471296 |
RECTIFIER HEAT SINK - Call your local BRP dealership |
| 26 |
278002954 |
Depth Sensor This part replaces 278002336. |
| 27 |
278001994 |
Depth Sensor Base |
| 28 |
293550042 |
Gel Pad |
| 29 |
204470908 |
LATERAL LIGHT KIT - Call your local BRP dealership |
| 30 |
209941960 |
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership |
| 32 |
278000220 |
Male Connector, 2 Circuits |
| 33 |
278000223 |
Female Terminal |
| 34 |
278000218 |
Wire Seal |
| 35 |
293150123 |
Pop Rivet 3/16" |
| 36 |
293750027 |
Tie-Rap 206 mm |
