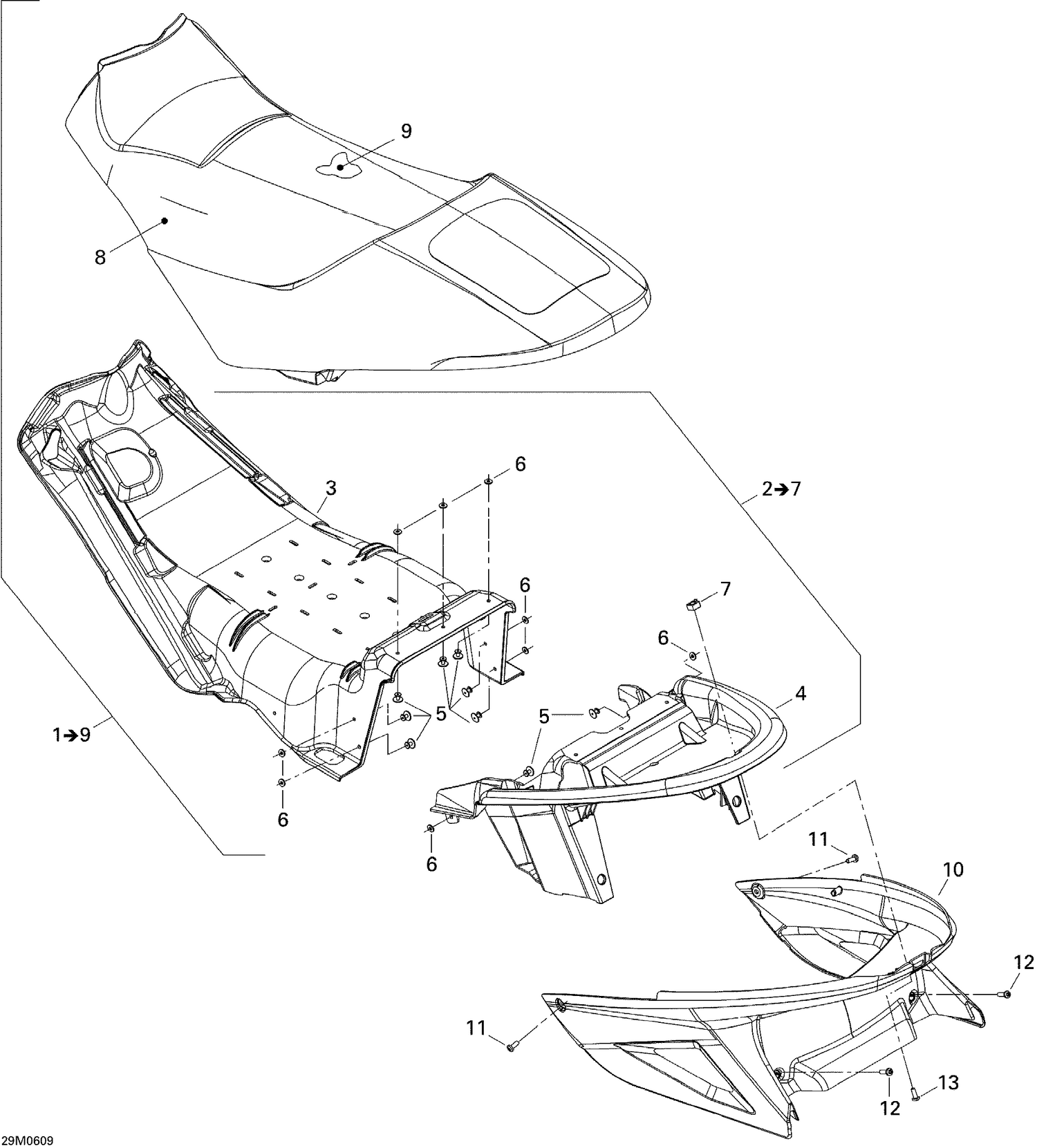

| Ref | Part Number | Description |
|---|
| 3 |
Not |
Available As Spare Part - Seat Base, Front |
| 4 |
Not |
Available As Spare Part - Seat Base, Rear |
| 5 |
293150104 |
Pop Rivet 3/16" This part replaces 390409600. |
| 6 |
517225900 |
Flat Washer |
| 7 |
708000046 |
NUT HOUSING ASS'Y M6 - Call your local BRP dealership |
| 9 |
510004216 |
Seat Foam |
| 10 |
510004628 |
TRUNK, BLACK - Call your local BRP dealership |
| 10 |
510004629 |
Coffre, Jaune, B-190 |
| 11 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 12 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
