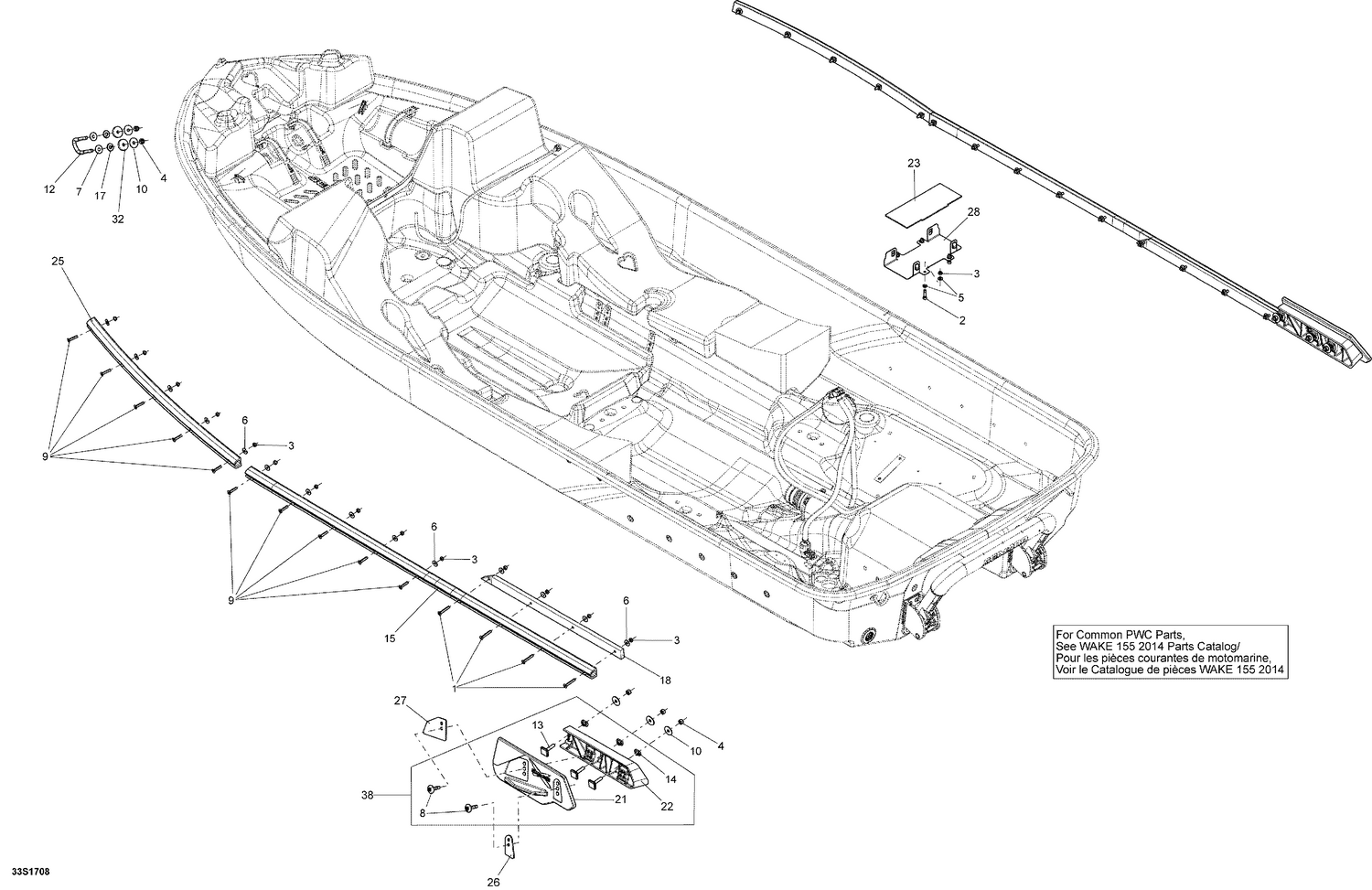

| Ref | Part Number | Description |
|---|
| 1 |
205364060 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 2 |
205562560 |
Socket Head Screw M6 X 25, Scotch Grip |
| 3 |
232561200 |
Brass Elastic Stop Nut M6 |
| 4 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 5 |
234061600 |
Stainless Flat Washer M6 |
| 6 |
234062600 |
Flat Washer M6, Stainless |
| 7 |
279000336 |
Flat Washer This part replaces 279000164. |
| 8 |
250000994 |
Torx-Head Screw M8 X 35 This part replaces 250000572. |
| 9 |
250000744 |
TORX SCEW M6 X 30 - Call your local BRP dealership |
| 10 |
250200175 |
Flat Washer 8 mm, Stainless This part replaces 250200011. |
| 12 |
292000933 |
U-Clamp |
| 13 |
292001471 |
Square Head Stud |
| 14 |
292001503 |
Push Nut |
| 15 |
292001657 |
ALUMINIUM RAIL - Call your local BRP dealership |
| 17 |
292001663 |
Flat Washer 8 mm, Nylon |
| 18 |
292001668 |
RAIL SPACER - Call your local BRP dealership |
| 21 |
292001871 |
RH Sponson This part replaces 292001426. |
| 21 |
292001872 |
Sponson LH This part replaces 292001427. |
| 22 |
292001873 |
RH Spacer Sponson This part replaces 292001428. |
| 22 |
292001874 |
Spacer Sponson LH This part replaces 292001429. |
| 23 |
292001743 |
Protector |
| 25 |
292001889 |
RAIL BENDED - Call your local BRP dealership This part replaces 292001775. |
| 26 |
292001804 |
SPONSON PLATE - Call your local BRP dealership |
| 27 |
292001805 |
SPONSON PLATE - Call your local BRP dealership |
| 28 |
292001836 |
Heat Exchanger Support |
| 32 |
293830037 |
Rubber Washer |
| 38 |
292001738 |
RH SPONSON - Call your local BRP dealership |
