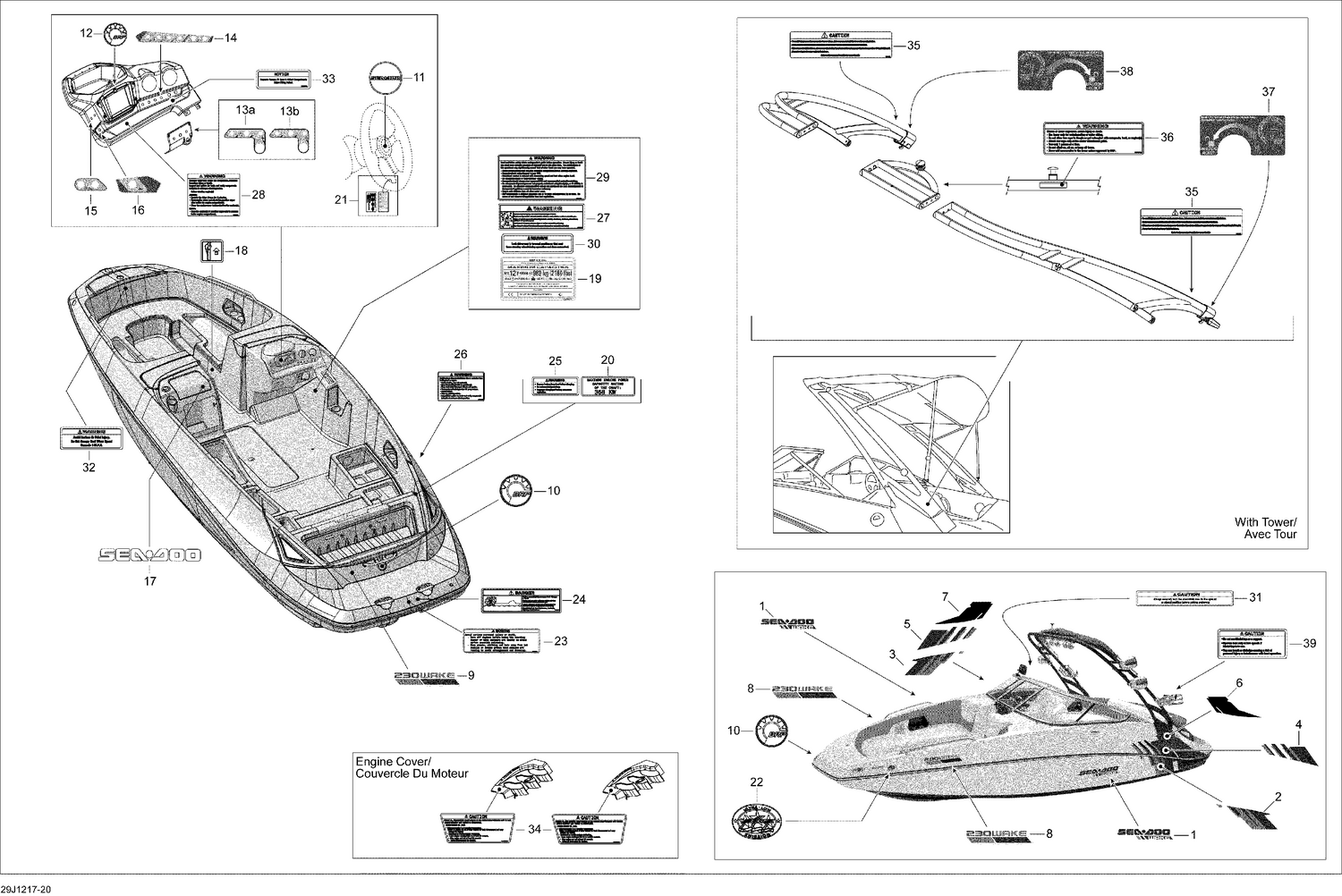

| Ref | Part Number | Description |
|---|
| 1 |
219903605 |
Logo, Sea-Doo Wake |
| 8 |
219903610 |
DECAL, 230 WAKE - Call your local BRP dealership |
| 9 |
219903610 |
DECAL, 230 WAKE - Call your local BRP dealership |
| 10 |
204901489 |
LOGO, BRP 94 MM - Call your local BRP dealership |
| 11 |
204901668 |
LOGO, SEA-DOO - Call your local BRP dealership |
| 12 |
704904615 |
BRP Logo13 mm This part replaces 704901270. |
| 14 |
219903569 |
DECAL SWITCH, RIGHT - Call your local BRP dealership |
| 15 |
219903566 |
Decal Switch, Upper Left |
| 16 |
219903628 |
DECAL SWITCH, LOWER LEFT - Call your local BRP dealership |
| 17 |
204901800 |
LOGO, SEA-DOO, GLOVE BOX - Call your local BRP dealership |
| 18 |
204900359 |
Extinguisher Decal |
| 19 |
219904011 |
CAPACITY LABEL - Call your local BRP dealership |
| 20 |
219903596 |
Power Capacity Label |
| 21 |
219902678 |
Star Label, Information |
| 22 |
219902679 |
Decal, Emission Control |
| 23 |
219903992 |
WARNING DECAL, LADDER - Call your local BRP dealership |
| 24 |
204901626 |
DANGER LABEL, CARBON MONOXIDE - Call your local BRP dealership |
| 25 |
204901330 |
WARNING DECAL, BATTERY - Call your local BRP dealership |
| 26 |
204902065 |
WARNING DECAL, FUEL - Call your local BRP dealership |
| 27 |
204901625 |
WARNING DECAL, CARBON MONOXIDE - Call your local BRP dealership |
| 28 |
219903475 |
WARNING DECAL, GASOLINE VAPOR - Call your local BRP dealership |
| 29 |
204902067 |
WARNING DECAL, NAVIGATION - Call your local BRP dealership |
| 30 |
204901347 |
WARNING DECAL, DRIVER SEAT - Call your local BRP dealership |
| 31 |
219903498 |
CAUTION DECAL, WINDSHIELD DOOR - Call your local BRP dealership |
| 32 |
204901424 |
WARNING DECAL, BOW SEAT - Call your local BRP dealership |
| 33 |
219904002 |
NOTICE DECAL, BALLAST - Call your local BRP dealership |
| 34 |
219904003 |
CAUTION DECAL, ENGINE OIL LEVEL - Call your local BRP dealership |
| 35 |
269800405 |
CAUTION LABEL, TOWER - Call your local BRP dealership |
| 36 |
204902068 |
WARNING LABEL, TOWER - Call your local BRP dealership |
| 37 |
219903499 |
LABEL-TOWER/LEVER-PORT - Call your local BRP dealership |
| 38 |
219903500 |
LABEL-TOWER/LEVER-STBD. - Call your local BRP dealership |
