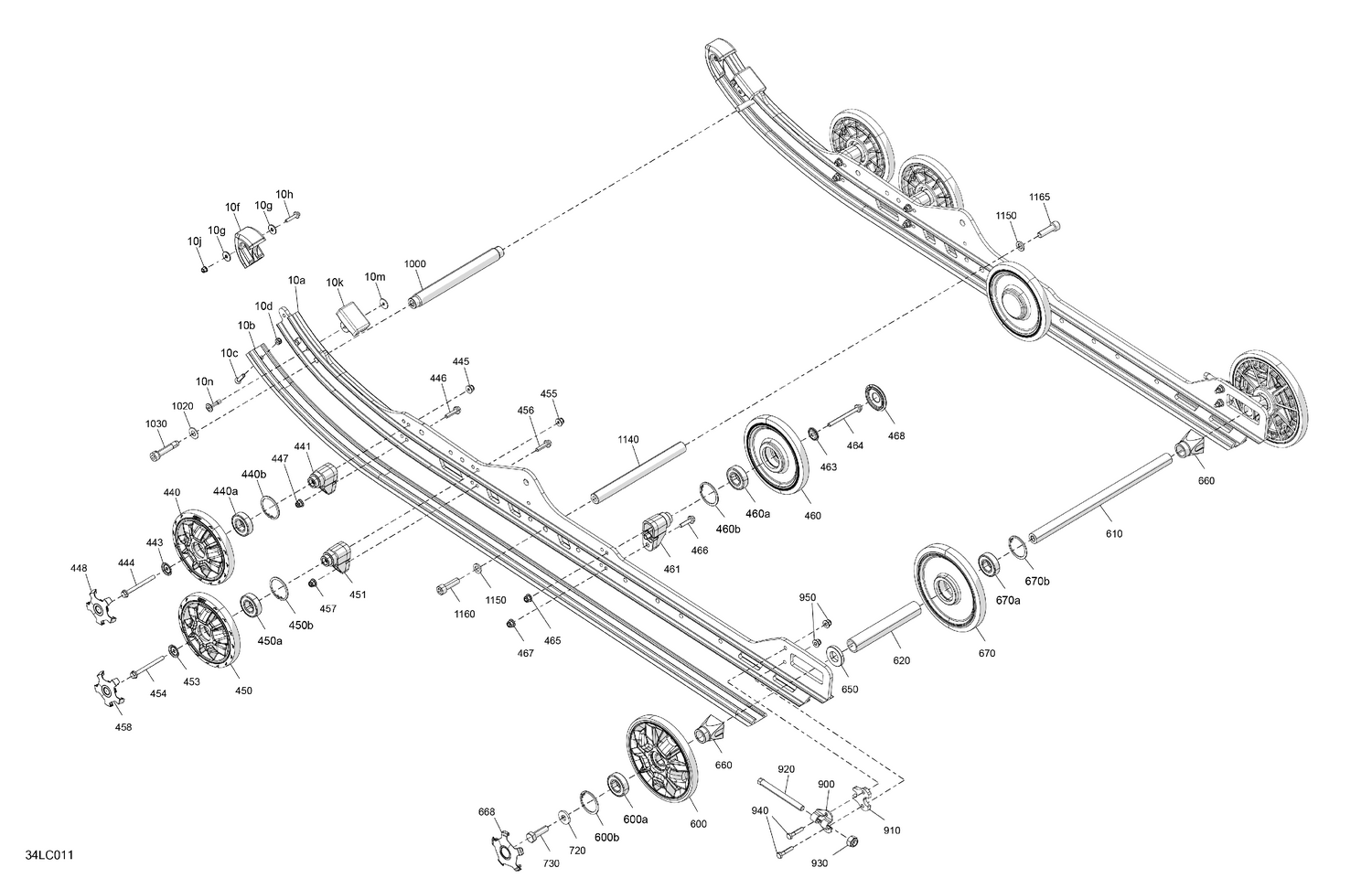

| Ref | Part Number | Description |
|---|
| 1 |
0341910 |
COUVRE-SUPPORT, de montage inférieur |
| 4 |
0911042 |
SCREW, Adapter to cylinder |
| 10a |
503196431 |
Rail Suspension 146 |
| 10b |
503191198 |
Black Slider Shoe 154" |
| 10c |
208562531 |
Phillips Screw M6 X 25 |
| 10d |
232561434 |
Elastic Stop Nut M6 |
| 10f |
503192299 |
Runner Protector |
| 10g |
250200140 |
Washer |
| 10h |
207652544 |
Hex. Flange Screw M5 X 25 |
| 10j |
233251434 |
Flanged Elastic Nut M5 |
| 10k |
503190576 |
Rubber Stopper |
| 10m |
503191273 |
Washer |
| 10n |
293150224 |
Rivet Pop 3/16 |
| 12 |
0334955 |
EXHAUST HOUSING, Inner, upper |
| 13 |
0320936 |
JOINT, boîtier échappement, inférieur |
| 14 |
0320961 |
JOINT, boîtier d'engrenages vers carter intérieur |
| 15 |
0320936 |
JOINT, boîtier échappement, inférieur |
| 18 |
0336301 |
GOUPILLE, carter vers bloc |
| 19 |
0342979 |
SPACER, Lower cover to exh hsg |
| 440a |
503190396 |
Ball Bearing |
| 440b |
415129371 |
Retaining Ring |
| 441 |
503193894 |
Casted Support |
| 443 |
503191820 |
Wheel Cup M6 |
| 444 |
250000944 |
Hex. Flange Screw M6 X 70 |
| 445 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 446 |
250000945 |
Hex. Flange Screw M6 X 25 |
| 447 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 448 |
503195347 |
Red, Wheel Cap |
| 450a |
503190396 |
Ball Bearing |
| 450b |
415129371 |
Retaining Ring |
| 451 |
503193894 |
Casted Support |
| 453 |
503191820 |
Wheel Cup M6 |
| 454 |
250000944 |
Hex. Flange Screw M6 X 70 |
| 455 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 456 |
250000945 |
Hex. Flange Screw M6 X 25 |
| 457 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 458 |
503195347 |
Red, Wheel Cap |
| 460a |
503190396 |
Ball Bearing |
| 460b |
415129371 |
Retaining Ring |
| 461 |
503193894 |
Casted Support |
| 463 |
503191820 |
Wheel Cup M6 |
| 464 |
250000944 |
Hex. Flange Screw M6 X 70 |
| 465 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 466 |
250000945 |
Hex. Flange Screw M6 X 25 |
| 467 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 468 |
503192771 |
Black, Wheel Cap |
| 600a |
503190396 |
Ball Bearing |
| 600b |
415129371 |
Retaining Ring |
| 610 |
503190429 |
Rear Axle |
| 620 |
503196317 |
Spacer |
| 650 |
503190432 |
Washer |
| 660 |
503190428 |
Rear Wheel Spacer |
| 668 |
503195350 |
Red, Wheel Cap |
| 670a |
503190396 |
Ball Bearing |
| 670b |
415129371 |
Retaining Ring |
| 720 |
503190439 |
Washer |
| 730 |
250000817 |
Hex Screw With Nilon Patch, M10 X 35 |
| 900 |
503192583 |
Tensioner |
| 910 |
503193250 |
Spacer |
| 920 |
230100054 |
Hex Screw M10 x 100 |
| 930 |
233601466 |
Elastic Locking Nut M10 |
| 940 |
207063054 |
Hex. Cap Screw M6 X 30 |
| 950 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 1000 |
503195015 |
Limiter Strap Shaft |
| 1020 |
503192496 |
Washer |
| 1030 |
205505054 |
Socket Screw |
| 1140 |
503191260 |
Axle Strap |
| 1150 |
503192496 |
Washer |
| 1160 |
205503554 |
Socket Head Screw M10 X 35 |
