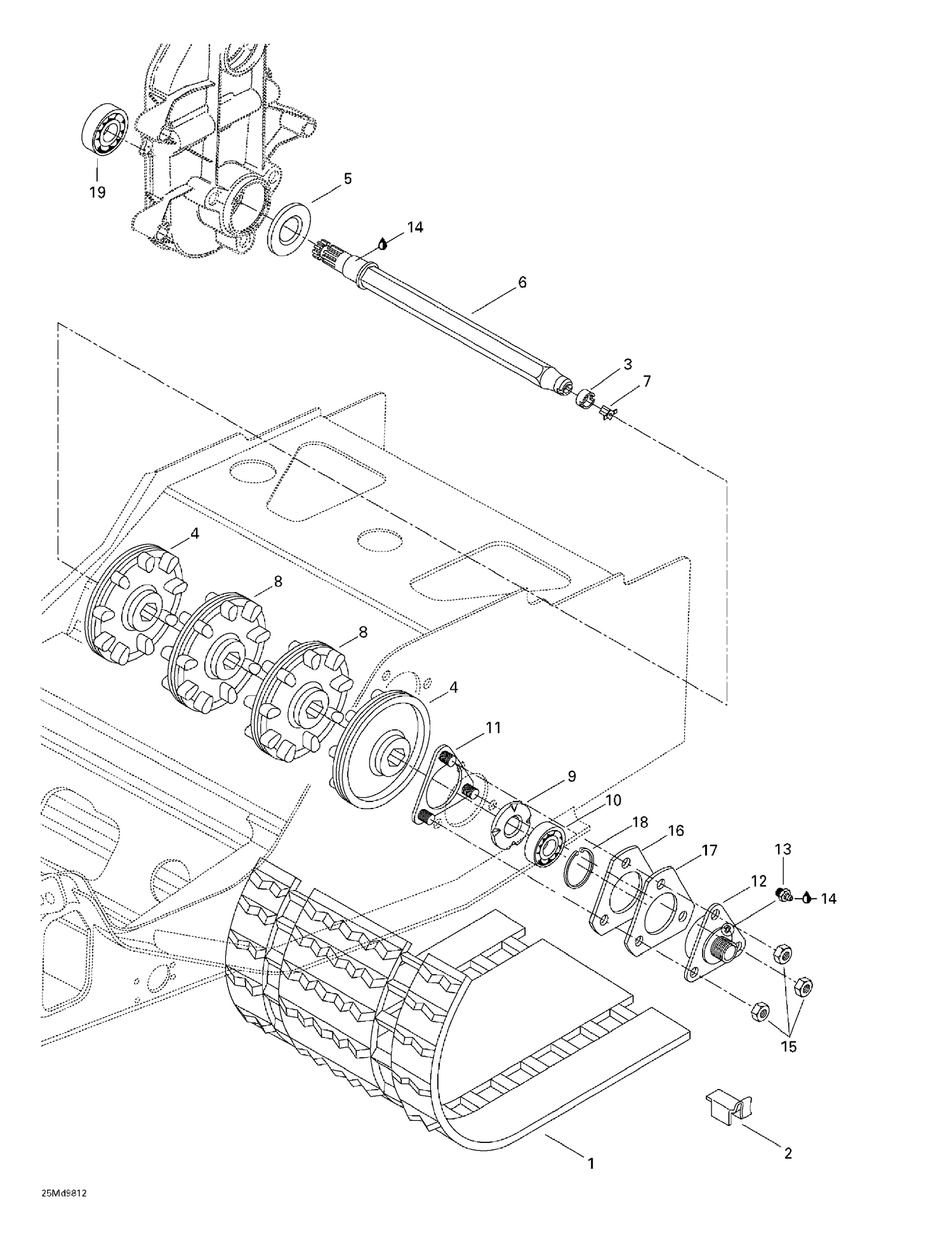

05- Drive Axle And Track
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 415129528 | Track Guide This part replaces 500003400. |
| 3 | 572097500 | Adaptor |
| 4 | 415085500 | Half Sprocket 9-Teeth |
| 5 | 504151918 | Oil Seal Ass'y This part replaces 581128500. |
| 6 | 501027300 | Drive Axle |
| 7 | 572010100 | SPEEDO DRIVE INSERT - Call your local BRP dealership |
| 8 | 414882600 | Sprocket (9 Teeth) |
| 9 | 501017400 | BEARING PROTECTOR - Call your local BRP dealership |
| 10 | 293350115 | Ball Bearing This part replaces 405404400. |
| 11 | 501024100 | Retainer Ring |
| 13 | 408200700 | Grease Fitting |
| 14 | 413706100 | LITHIUM GREASE, 400 GR - Call your local BRP dealership |
| 15 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 16 | 501024200 | Spacer |
| 17 | 501022200 | Spacer |
| 18 | 371910200 | CIRCLIP - Call your local BRP dealership |
