| Ref | Part Number | Description |
|---|
| 1 |
0386692 |
PISTON ASSY., Std |
| 1A |
0386691 |
PISTON ASSY., .030 O.S. |
| 2 |
0120110 |
RETAING RING |
| 2A |
0120110 |
RETAING RING |
| 3 |
0378432 |
RING SET , Std. |
| 3A |
0384336 |
REING SET, .030 O.S. |
| 4 |
0303333 |
PIN, Wrist |
| 5 |
0378280 |
CONNECTING ROD ASSEMBLY |
| 6 |
0307560 |
SCREW ROD CAP |
| 7 |
0307558 |
LOCKPALTE,Cap screw |
| 8 |
0120395 |
KEY |
| 9 |
0378371 |
LINDERS & NEEDLES, Rod |
| 10 |
0303278 |
SUPORT, Armature plate |
| 11 |
0332070 |
SCREW, Retaining plate This part replaces 0304442. |
| 12 |
0303277 |
RETAINING RING |
| 13 |
0316583 |
CAM, Magneto |

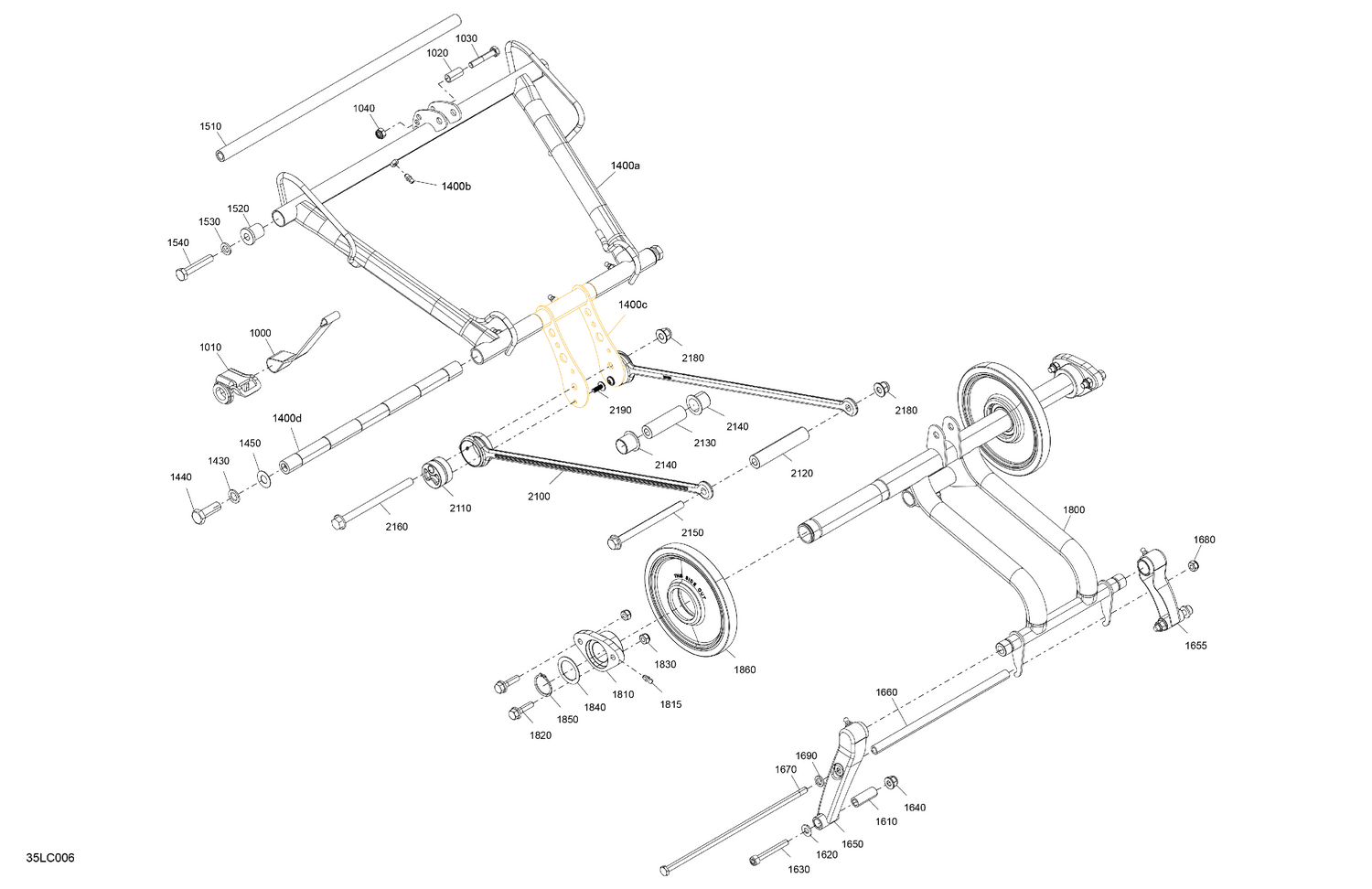

| 1000 |
503195777 |
Strap Stopper |
| 1010 |
503194867 |
Holder, Limiter Strap |
| 1020 |
503195579 |
Sleeve |
| 1030 |
207084544 |
Hex. Screw M8 X 45 |
| 1040 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1400a |
503196291 |
Front Arm |
| 1400b |
408200700 |
Grease Fitting |
| 1400c |
503195780 |
Rocker |
| 1400d |
503194641 |
Lower Shaft |
| 1430 |
503192491 |
Washer |
| 1440 |
250000537 |
Hex. Cap Screw M12 X 35 |
| 1450 |
706200281 |
Hardened Washer |
| 1510 |
503191391 |
Upper Shaft |
| 1520 |
503189324 |
Bushing |
| 1530 |
503191926 |
Washer |
| 1540 |
250000605 |
Hex. Screw S.GRIP M10 X 55 |
| 1610 |
503194726 |
Pivot Arm Axle |
| 1620 |
503192494 |
Washer |
| 1630 |
207586044 |
Hex. Flange Screw M8 X 60, Scotch Grip |
| 1640 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 1650 |
503195306 |
LH Rear Swing Ass'y |
| 1655 |
503195307 |
RH Rear Swing Ass'y |
| 1660 |
503195343 |
Spacer |
| 1670 |
503195342 |
Bolt M8 |
| 1680 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1690 |
250200111 |
Washer |
| 1800 |
503195959 |
Rear Arm Ass'y |
| 1810 |
503195042 |
Cushion |
| 1815 |
408200700 |
Grease Fitting |
| 1820 |
207683054 |
Hex. Flange Screw M8 X 30 |
| 1830 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1840 |
503195150 |
Shim Ring 30X42X1.0 |
| 1850 |
293370143 |
Circlip |
| 1860 |
503195041 |
Wheel Ass'y 170 MM |
| 2100 |
503195312 |
Link Rod Ass'y |
| 2110 |
503195337 |
Rod Shaft |
| 2120 |
503194457 |
Rod Shaft |
| 2130 |
503195030 |
Front Swing Shaft |
| 2140 |
503195184 |
Bushing |
| 2150 |
230603044 |
Hex. Flanged Screw DIN.6921 |
| 2160 |
230604044 |
Hex. Flanged Screw M10 X 140 |
| 2180 |
233201414 |
Hex. Flanged Elastic Nut M10 |
