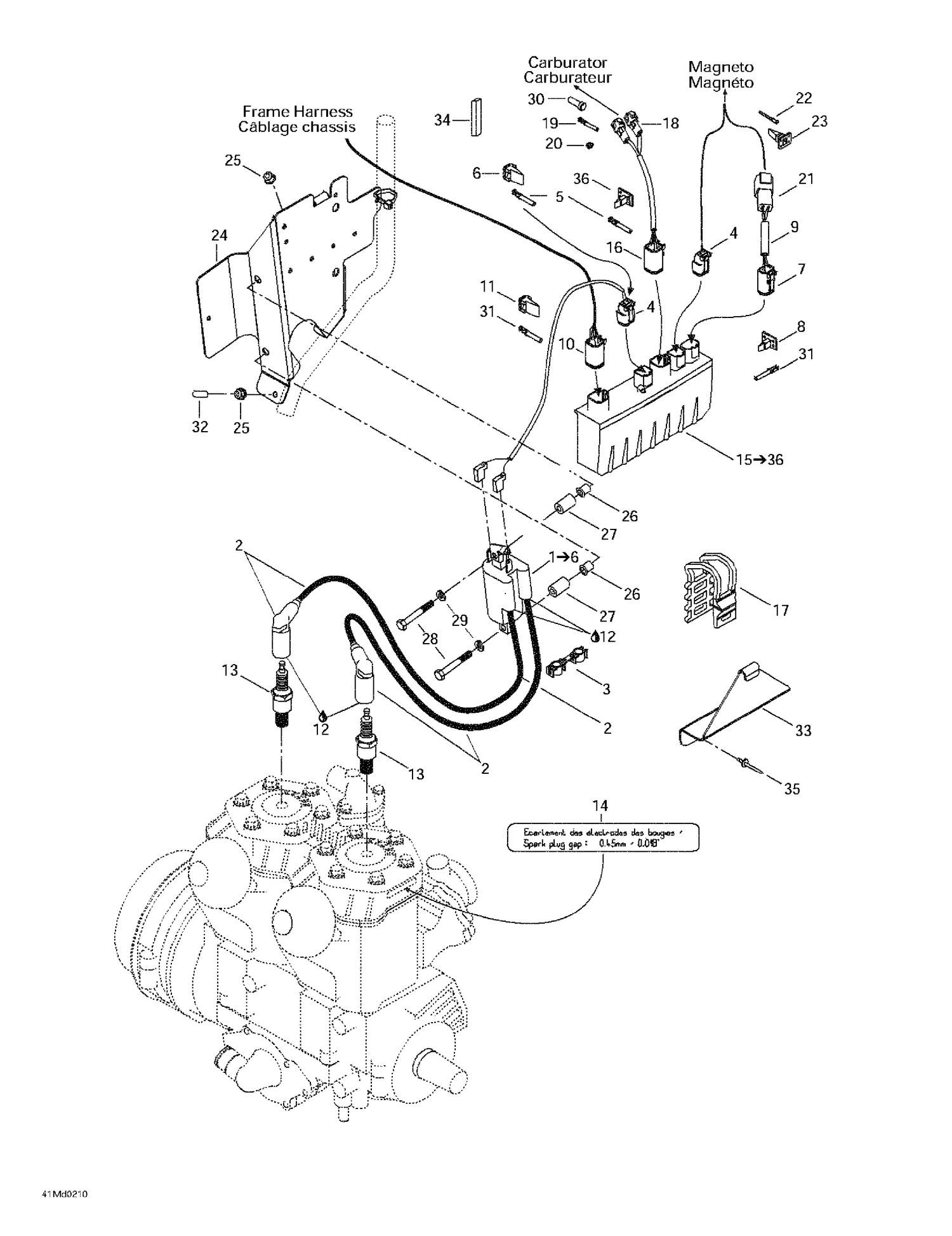

| Ref | Part Number | Description |
|---|
| 2 |
512059499 |
Cable Ass'y 515 mm |
| 3 |
410914600 |
Plastic Clip, Spark Plug Wire |
| 4 |
409207300 |
Female Connector, 2 Circuits |
| 5 |
278000632 |
Female Terminal |
| 6 |
409207100 |
FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership |
| 7 |
278001739 |
Mode/Set Switch |
| 8 |
278000738 |
Male Lock, 4 Circuits |
| 9 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 10 |
710001540 |
CONNECTOR_MALE 6 CAVITIES - Call your local BRP dealership This part replaces 278000736. |
| 11 |
515175705 |
Femele Lock |
| 12 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 13 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 14 |
516000986 |
Spark Plug Decal |
| 16 |
515175673 |
Male Housing, 6 Circuits |
| 17 |
570069700 |
LATCH - Call your local BRP dealership |
| 18 |
409209200 |
Female Terminal Housing, 2 Circuits |
| 19 |
409012100 |
Female Terminal |
| 20 |
409012300 |
Seal |
| 21 |
710000045 |
MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 22 |
409014800 |
MALE TERMINAL - Call your local BRP dealership |
| 23 |
710000046 |
MALE LOCK, 4 CIRCUITS - Call your local BRP dealership |
| 24 |
518322927 |
Electronic Module Support |
| 25 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 26 |
293450275 |
Insert This part replaces 415107300. |
| 27 |
517203200 |
Spacer |
| 28 |
207064544 |
Hex. Screw M6 X 45 |
| 29 |
234161471 |
Lock Washer M6, Black |
| 30 |
293000052 |
Sealing Cap |
| 31 |
278000632 |
Female Terminal |
| 32 |
293000025 |
Short Cap |
| 33 |
518322928 |
Plate |
| 34 |
219704353 |
Was 271000110 Protection Trim |
| 35 |
390402400 |
Pop Rivet 3/16" |
| 512059500 |
Cable |
Ass'y 595 mm 512059500 |
