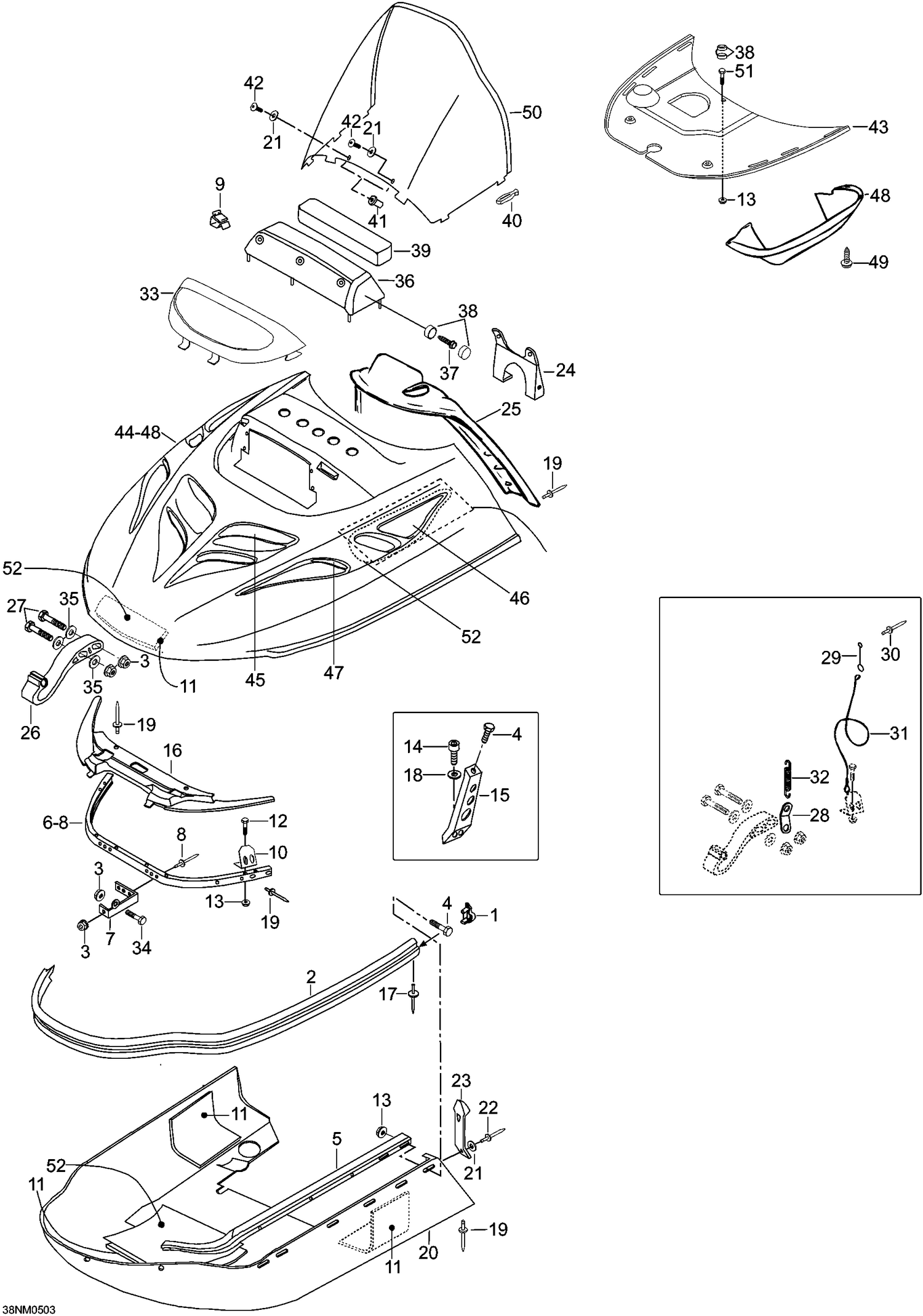

| Ref | Part Number | Description |
|---|
| 1 |
549096L |
Bumper Cap L.H. - Call your local BRP dealership |
| 1 |
549096R |
Plug R.H. |
| 2 |
5242798 |
Bumper |
| 3 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 4 |
40078 |
SCREW M6 x 22 DIN933m8.8Zne(1=10pcs - Call your local BRP dealership |
| 5 |
5242803 |
Guide side L.H. |
| 5 |
5242804 |
Guide RH - Call your local BRP dealership |
| 7 |
5342234 |
Hinge R.H. |
| 7 |
5342345 |
Hinge L.H. |
| 8 |
36083 |
Rivet |
| 9 |
414227300 |
Clip |
| 10 |
5443217 |
Guide, short |
| 11 |
414631900 |
Screw M5 x 16 |
| 12 |
40247 |
Elastic flanged nut M5 |
| 13 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 14 |
40332 |
Socket head screw M6 x 16 |
| 15 |
5342509 |
Support for bumper - Call your local BRP dealership |
| 16 |
5148319 |
Protector for hinge |
| 17 |
36097 |
Rivet Profix 4.0x13 Al musta(1=50pcs) - Call your local BRP dealership |
| 18 |
20052 |
Lock washer 6mm |
| 19 |
36036 |
Rivet |
| 21 |
20008 |
Rivet |
| 24 |
5347795 |
Rear hood |
| 25 |
605148419 |
Hinge welded |
| 26 |
5343075 |
Screw M6 x 50 |
| 27 |
40193 |
Spring plate |
| 28 |
5443123 |
Cable keeper |
| 29 |
605449395 |
CABLE KEEPER - Call your local BRP dealership |
| 30 |
36005 |
Washer |
| 31 |
5346947 |
Retainer cable |
| 32 |
5442675 |
Spring |
| 33 |
5246396 |
Lamp molding |
| 34 |
40084 |
Screw M6 x 45 |
| 35 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 36 |
605149010 |
INTAKE COVER - Call your local BRP dealership |
| 37 |
40901 |
Plastofast screw 5 x 20 |
| 38 |
282000 |
Nut protector |
| 39 |
605349056 |
FILTER - Call your local BRP dealership |
| 40 |
570023800 |
Latch |
| 41 |
28055 |
Well-nut |
| 42 |
40156 |
Slot sc. M5 x 20DIN7985m4.6Zne(1=10pcs) - Call your local BRP dealership |
| 43 |
5246742 |
HOOD CENTERPLATE - Call your local BRP dealership |
| 45 |
5142669 |
Middle grill - Call your local BRP dealership |
| 46 |
5242670 |
UPPER GRILLE LH - Call your local BRP dealership |
| 46 |
5242671 |
R.H. upper grill |
| 47 |
5242672 |
R.H. lower grill - Call your local BRP dealership |
| 47 |
5342673 |
L.H. lower grill |
| 48 |
5146986 |
Cooling channel - Call your local BRP dealership |
| 49 |
414644300 |
Black, Dart |
| 50 |
5147892 |
Windscreen |
| 51 |
40179 |
Screw M5 x 25 |
