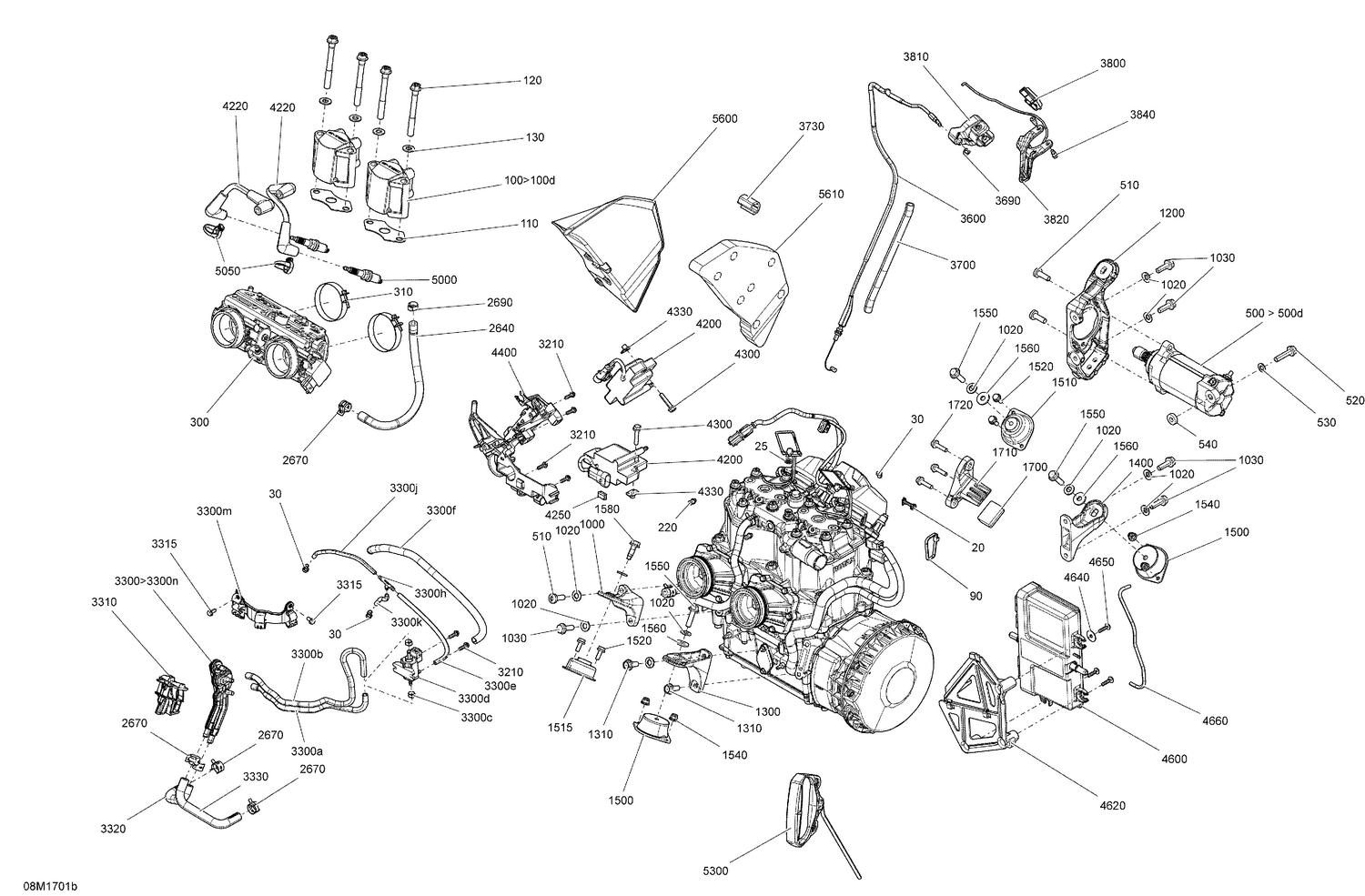

| Ref | Part Number | Description |
|---|
| 20 |
515177770 |
Locker |
| 25 |
732610072 |
Push Nut |
| 30 |
293750001 |
Tie Wrap 94 mm |
| 90 |
293750008 |
Tie Wrap 368 mm |
| 100a |
415129497 |
Crush Ring |
| 100b |
415129498 |
O-Ring |
| 100c |
415129499 |
O-Ring |
| 100d |
415129942 |
Fuel Injector Cover |
| 110 |
420430930 |
Gasket |
| 120 |
420441187 |
Torx Flange Screw M10 X 90 -SW 13/T50 |
| 130 |
234001410 |
Flat Washer 10 mm |
| 220 |
420924724 |
Hose Nipple |
| 300 |
420889201 |
Throttle Body |
| 310 |
293650158 |
Gemi Clamp |
| 500a |
415129441 |
Clutch Kit |
| 500b |
415129333 |
Brush Kit |
| 500c |
415129341 |
Starter Bolt |
| 500d |
415129342 |
O-Ring Kit |
| 510 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip |
| 520 |
207583544 |
Hex Flange Screw M8 X 35, Scotch Grip |
| 530 |
250200008 |
Flat Washer With Teflon 8 mm |
| 1000 |
512060478 |
Rear Support, PTO |
| 1020 |
250200146 |
Conical Spring Washer M8 |
| 1030 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 1200 |
512060712 |
FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699. |
| 1300 |
512060559 |
Rear Support, MAG |
| 1310 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 1400 |
512060469 |
Front Support, MAG |
| 1500 |
512060729 |
Rubber Mount |
| 1510 |
512061507 |
Vibration Damper This part replaces 512060387. |
| 1515 |
512060448 |
Rubber Mount |
| 1520 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 1540 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 1550 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 1560 |
503183200 |
Yellow, Washer |
| 1580 |
250000796 |
Hex. Flange Screw M8 X 1.25 X 25 |
| 1700 |
512060627 |
Stopper |
| 1710 |
512060576 |
Stopper Support |
| 1720 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 2640 |
512060944 |
Bleeder's Collector Outlet Hose |
| 2670 |
293650214 |
Norma Spring Clamp |
| 2690 |
293650046 |
Oetiker Clamp |
| 3210 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 3300a |
219704410 |
Polyurethane Hose 10000Mm Long |
| 3300b |
219704410 |
Polyurethane Hose 10000Mm Long |
| 3300c |
293650234 |
Crimp Clamp |
| 3300d |
270600005 |
Solenoid Valve This part replaces 512061078. |
| 3300e |
219704352 |
Was 420660574 Pressure Hose 280 mm |
| 3300f |
219704399 |
Was 409901700 Tubing (9 mm) |
| 3300h |
293710068 |
T-Fitting |
| 3300j |
219704352 |
Was 420660574 Pressure Hose 280 mm |
| 3300k |
219704352 |
Was 420660574 Pressure Hose 280 mm |
| 3300m |
512060827 |
Hose Support |
| 3300n |
512060930 |
SPRING - Call your local BRP dealership |
| 3310 |
512060769 |
Manifold Support |
| 3315 |
210251150 |
Hex Flange Screw M5 X 11 |
| 3320 |
512060695 |
LH Formed Hose |
| 3330 |
512060694 |
RH Formed Hose |
| 3600 |
512060611 |
Throttle Cable |
| 3690 |
414274500 |
Circlip |
| 3700 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 3730 |
512060313 |
Protector |
| 3800 |
512060859 |
Upper Housing |
| 3810 |
512060860 |
Lower Housing |
| 3820 |
512061250 |
Handle Ass'y This part replaces 512061051. |
| 3840 |
732601143 |
Flange Screw |
| 4200 |
512060953 |
Ignition Coil |
| 4220 |
512061126 |
Ignition Cable, 177mm long |
| 4250 |
710000992 |
Clip |
| 4300 |
250000253 |
Hex. Flange Screw M6 X 1.0 X 30 |
| 4330 |
293100003 |
Nut Welded, M6 |
| 4400 |
512060888 |
Ignition Coils Support |
| 4600 |
512060780 |
Calibrated Module |
| 4620 |
512060858 |
Calibrated Module Support |
| 4640 |
250200040 |
Flat Washer |
| 4650 |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 4660 |
219704709 |
NEEDS DESCRIPTION This part replaces 219704409. |
| 5000 |
415130430 |
Spark Plug NGK PZFR6F This part replaces 415129375. |
| 5050 |
512060993 |
Clamp |
| 5600 |
512060847 |
Noise Shield |
