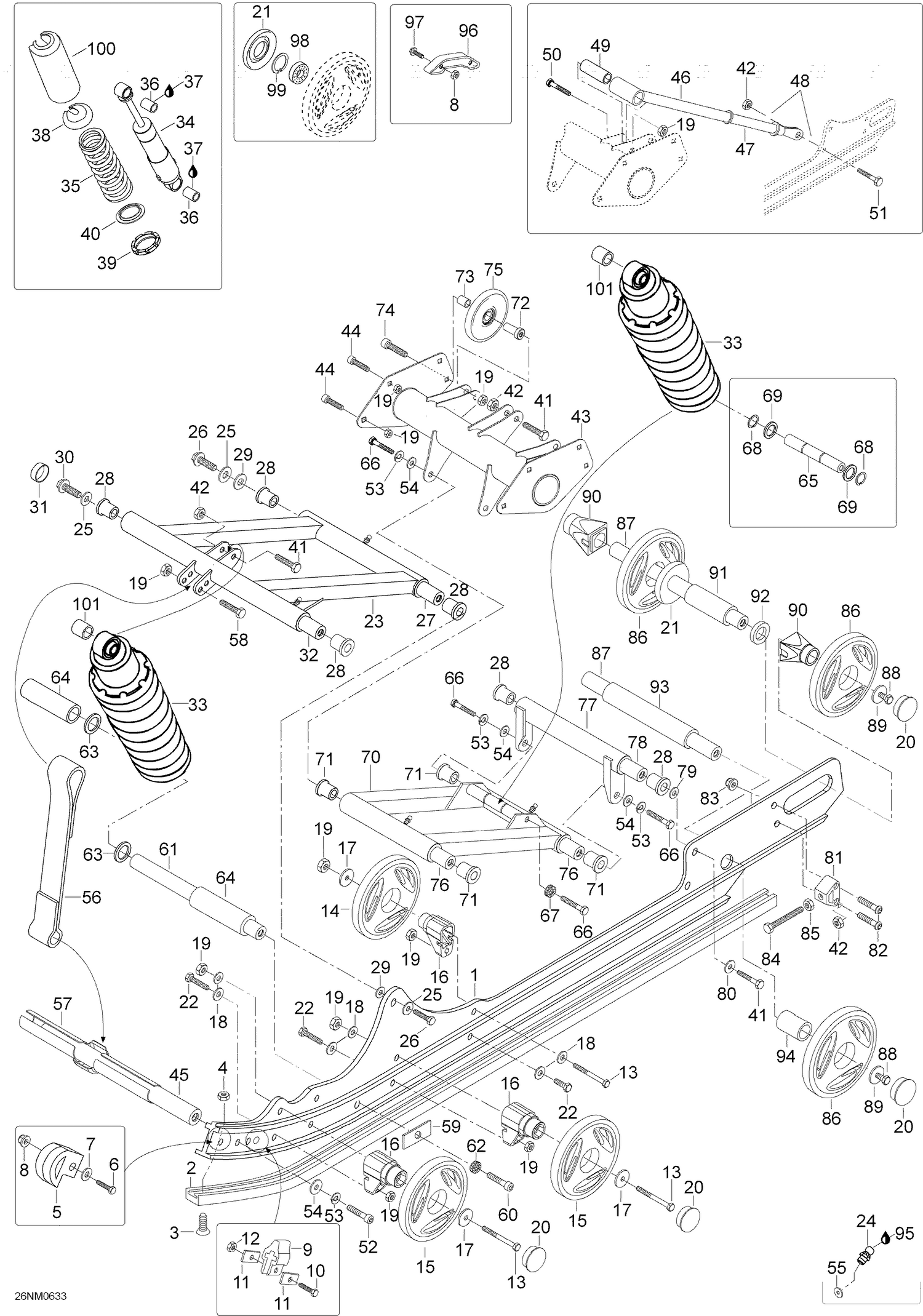

08- Rear Suspension

08- Rear Suspension

Parts (100)

RefPart NumberDescription
1 605253361 Runner
2 605353362 Shoe
3 40059 Socket head screw M6 x 60
4 33010 Lock Nut M6 (1=10Pcs)
5 605348954 Runner protector
6 40031 Hex. screw M6 x 25
7 20003 Washer A6,4
8 233261414 Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200.
9 5442328 STOPPER-RUBBER - Call your local BRP dealership
10 40032 Hex. screw M6 x 30
11 548470 Washer
12 33010 Lock Nut M6 (1=10Pcs)
13 40089 M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership
14 503191316 Wheel 141mm This part replaces 503190577.
15 503191313 Wheel 141 With Pattern Ass'y, Full Moon This part replaces 503190751.
16 605451906 Support
17 211200041 Washer 8mm
18 234081410 Flat Washer 8 mm This part replaces 20104.
19 232581414 Hex. Elastic Stop Nut M8 This part replaces 33011.
20 570063600 Protector
21 503190434 Labyrinth Seal
22 40037 Hex. screw M8 x 25
23 5145588 Front arm
24 34011 Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership
25 20090 Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership
26 40099 Hex. screw M12 x 45
27 605352383 Shaft
28 31024 Cushion
29 20040 Washer
30 40243 Hex. screw M12 x 60
31 5448025 Cap
32 5346135 Shaft
34 605352734 Shock, front arm
34 605352735 Shock, rear arm
35 25063 SPRING - Call your local BRP dealership
35 25073 Spring, front arm
36 31094 Cushion
37 320006 Loctite 641, 50ml
38 230076 Spring stopper
39 230078 Adjusting Cam
40 230049 Spring guide
41 40016 Hex. screw M10 x 45
42 33012 Elastic stop nut M10
43 605253615 Upper arm
44 205982086 SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership This part replaces 40351.
45 5343471 Shaft
46 5347851 Poker tube
48 5447853 SLIDE BEARING - Call your local BRP dealership
49 5447848 Bearing sleeve - Call your local BRP dealership
50 40011 Hex screw M8 x 60 DIN931(1=10pcs)e - Call your local BRP dealership
51 40042 Screw M10 x 35
52 40134 Screw Socket HD.DIN 912
53 20047 Shim B10 DIN127 -St Zne(1=10pcs) - Call your local BRP dealership
54 20105 Washer, hardened, 10mm
55 20003 Washer A6,4
56 605449385 Stopper strap
57 605349381 Retainer for stopper strap - Call your local BRP dealership
58 207084544 Hex. Screw M8 X 45 This part replaces 40008.
59 605449294 Support Plate
60 40371 Socket head screw M12 x 55
61 605350690 Shaft
62 20074 Lock washer 12mm
63 31013 Shim Ring
64 605349896 Sleeve
65 605451897 REARSHOCK SHAFT - Call your local BRP dealership
66 40014 Hex. screw M10 x 40
67 20068 Lock washer 10mm
68 293370056 Circlip 20X1.75 DIN471 This part replaces 31007.
69 31091 Shim ring 20x28x1 DIN 988(1=10pcs) - Call your local BRP dealership
70 605349313 Rear arm
71 31027 Cushion
72 5447945 Sleeve
73 5447946 Sleeve
74 605640006 Socket head screw M8 x 90
75 46027 Idler Wheel - Call your local BRP dealership
76 5346865 SHAFT - Call your local BRP dealership
77 5345535 Rear arm
78 5346900 Shaft
79 20116 Washer
80 512056700 Lock washer
81 5341633 Tensioner
82 40392 Socket head screw M8 x 45
83 233281414 Hex. Flange Elastic Nut M8 This part replaces 33201.
84 40239 Hex. screw M10 x 100
85 232006414 Hex. Nut M10 This part replaces 33004.
86 503191110 Idler fheel 165/Full Moon
87 503190429 Rear Axle
88 40050 Hex. screw M10 x 35
89 503190439 Washer
90 503190428 Rear Wheel Spacer
91 503196317 Spacer This part replaces 503190430.
92 503190432 Washer
93 605353255 Sleeve
94 605353256 Sleeve
95 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
96 503192731 SLIDING PAD - Call your local BRP dealership This part replaces 5343191.
97 207764044 BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces 40064.
98 293350115 Ball Bearing This part replaces 503190795.
99 371901700 CIRCLIP - Call your local BRP dealership
100 5346754 Shock protector
