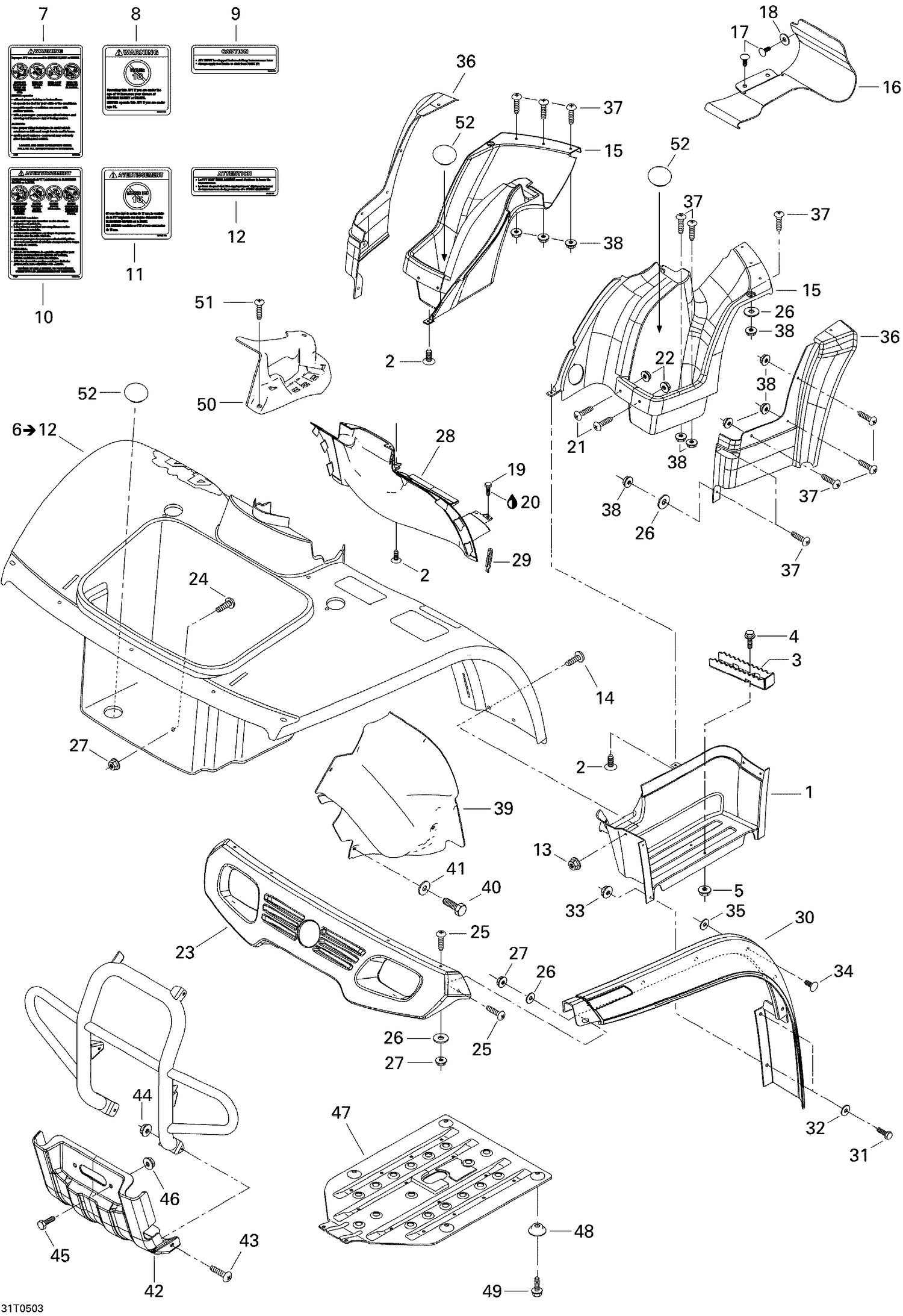

| Ref | Part Number | Description |
|---|
| 1 |
705000017 |
RH Footboard, Black |
| 1 |
705000018 |
LH FOOTBOARD, BLACK - Call your local BRP dealership |
| 2 |
293730011 |
Black, Dart |
| 3 |
705001083 |
Footrest, Black |
| 4 |
207662554 |
Hex. Flange Screw M6 X 25 This part replaces 207662584. |
| 5 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 7 |
704900001 |
Warning Decal, Death And Injuries |
| 8 |
704900011 |
Warning Decal, Under 16 Years Old |
| 9 |
704900434 |
Caution Decal, Lever And 4wd Switch This part replaces 704900007. |
| 10 |
704900002 |
Warning Decal, Death And Injuries |
| 11 |
704900012 |
Warning Decal, Under 16 Years Old |
| 12 |
704900008 |
Caution Decal, Transmission Selector |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 14 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 15 |
705000842 |
RH Rear Fender |
| 15 |
705000843 |
LH Rear Fender |
| 16 |
705000413 |
Air Shield |
| 17 |
390402000 |
Pop Rivet 3/16" |
| 18 |
391301600 |
Washer |
| 19 |
207661244 |
Hex. Flange Screw M6 X 12 |
| 20 |
293800060 |
Loctite 243, 10 ml |
| 21 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 22 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 23 |
705000011 |
Front Fascia, black |
| 24 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 25 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 26 |
224060201 |
Flat Washer |
| 27 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 28 |
705000010 |
Tank Cover |
| 29 |
570023800 |
Windshield Latch |
| 30 |
705001576 |
LH FRONT MUDGUARD - Call your local BRP dealership |
| 30 |
705001577 |
RH FRONT MUDGUARD - Call your local BRP dealership |
| 31 |
207162044 |
Hex. Screw M6 X 20 |
| 32 |
224060201 |
Flat Washer |
| 33 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 34 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 35 |
234082410 |
Flat Washer 8 mm |
| 36 |
705000224 |
LH Protector |
| 36 |
705000225 |
RH Protector |
| 37 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 38 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 39 |
705000133 |
LH TANK PROTECTOR - Call your local BRP dealership |
| 39 |
705000134 |
RH TANK PROTECTOR - Call your local BRP dealership |
| 40 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 41 |
224061201 |
Flat Washer |
| 42 |
705000135 |
Front Protection Plate, black |
| 43 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 44 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 45 |
207602544 |
Hex. Flange Screw M10 X 25 |
| 46 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 47 |
705200535 |
Skid Plate |
| 48 |
705200533 |
CUP - Call your local BRP dealership |
| 49 |
207581646 |
Hex. Flange Screw M8 X 16, Scotch Grip |
| 50 |
705000081 |
Lever Indicator |
| 51 |
414745900 |
Tuflock Phillips Plastic Screw |
