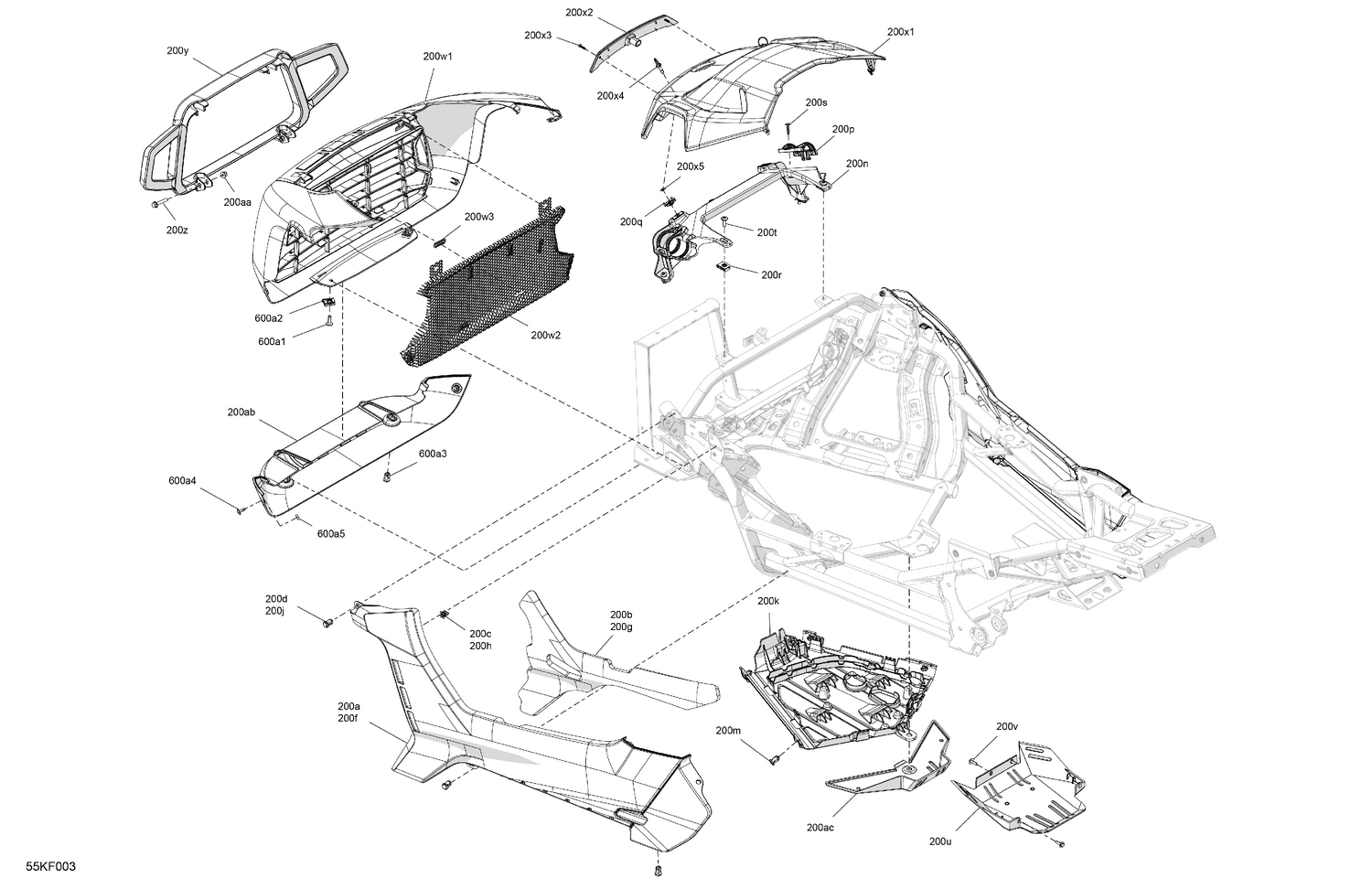

07- Body - Lower Section
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 200a | 219800524 | LH Rocker Panel Kit |
| 200aa | 233261466 | Hex. Flange Elastic Nut M6 |
| 200ab | 705016170 | Lower Bumper Trim |
| 200ac | 705212405 | Front Molded Skid Plate |
| 200b | 705013940 | LH Rocker Acoustic Foam |
| 200c | 517302785 | Edge Clip |
| 200d | 293150230 | Tuflok Plastic Rivet |
| 200f | 219800525 | RH Rocker Panel Kit |
| 200g | 705013941 | Acoustic Foam |
| 200h | 517302785 | Edge Clip |
| 200j | 293150230 | Tuflok Plastic Rivet |
| 200k | 705012364 | Skid Plate |
| 200m | 293150230 | Tuflok Plastic Rivet |
| 200n | 705016204 | Front Tank Support Shock Absorber |
| 200p | 706004531 | Ext Tank Support Shock Absorber |
| 200q | 705016560 | Specialized Nut |
| 200r | 250100208 | Panel Nut M6 X 1.0 |
| 200s | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 200t | 250000722 | Torx Screw M6 X 20 |
| 200u | 705212406 | Rear Molded Skid Plate |
| 200v | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 200w1 | 705013345 | Deep Black, Front Fascia |
| 200w2 | 705018411 | Protective Grille |
| 200w3 | 705004838 | Flat Clip |
| 200x1 | 705016171 | Hood |
| 200x2 | 708400406 | Lighting Harness Connector Cap |
| 200x3 | 250001123 | Hex. Flange Screw K40 X 16 |
| 200x4 | 705016561 | Quarter Turn Fastener |
| 200x5 | 705016562 | Washer |
| 200y | 705016169 | Central Bumper Trim |
| 200z | 207663554 | Hex. Flange Screw M6 X 35 |
| 600a1 | 250000722 | Torx Screw M6 X 20 |
| 600a2 | 250100208 | Panel Nut M6 X 1.0 |
| 600a3 | 293150230 | Tuflok Plastic Rivet |
| 600a4 | 250001059 | Torx Truss Head Screw W Nylon M5X14 |
| 600a5 | 232852411 | Square Nut M5 X 0.8 |
