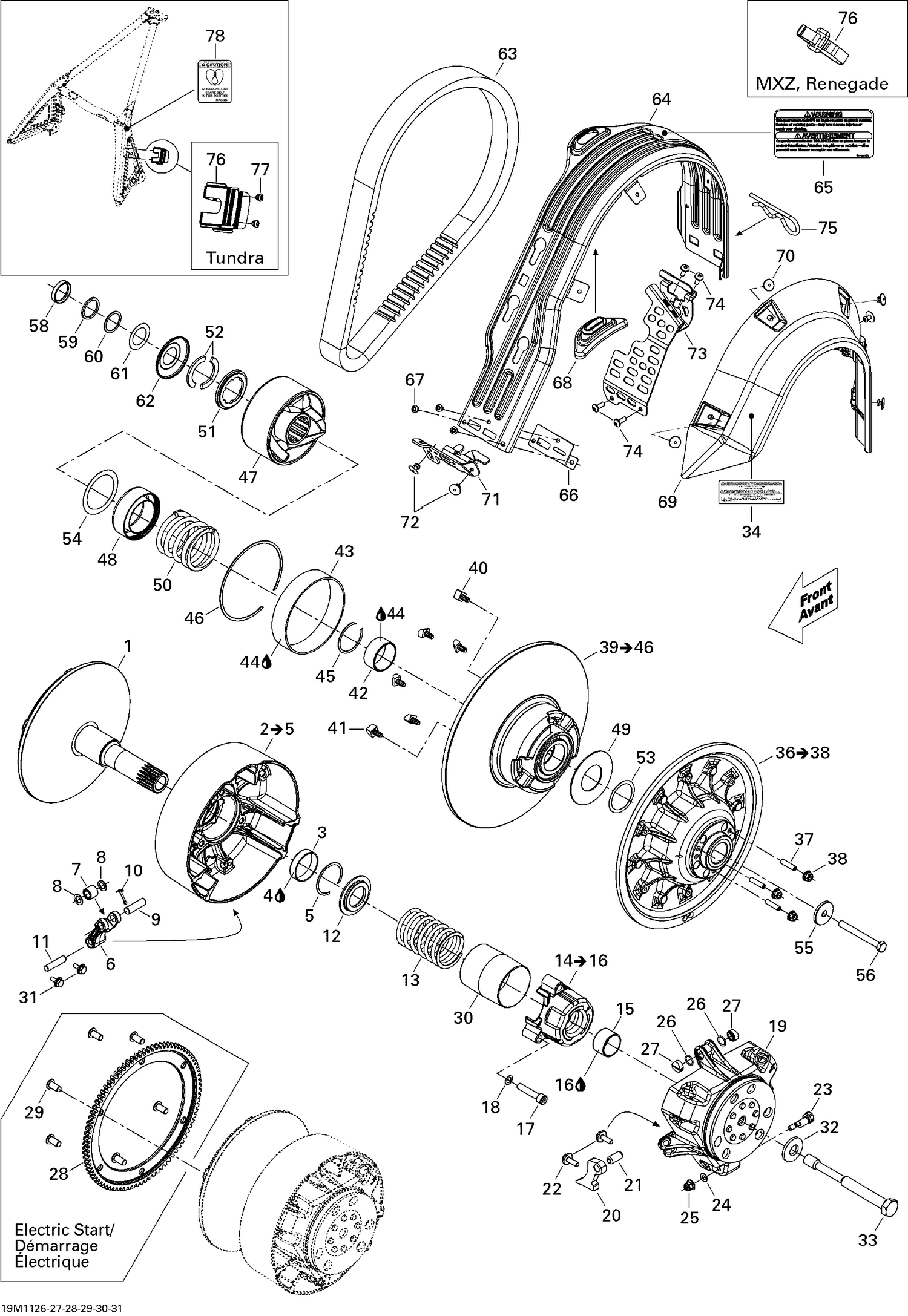

05- Pulley System
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 417222937 | Fixed Flange Ass'y |
| 3 | 417222758 | Bushing |
| 4 | 219702967 | Adhesive LOCTITE 680 - Call your local BRP dealership This part replaces 293800118. |
| 5 | 293370037 | Circlip |
| 6 | 417222671 | Lever |
| 7 | 417222947 | Roller |
| 8 | 417004302 | Stopper Washer |
| 9 | 417004309 | Pin |
| 10 | 250400060 | Cotter Pin This part replaces 732958001. |
| 11 | 417223164 | Lever Axle |
| 12 | 417222312 | Spring Seat |
| 13 | 414639000 | Spring, Blue/Orange |
| 15 | 417009204 | Bushing |
| 16 | 413703100 | Loctite 609, 10 ml |
| 17 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 18 | 250200009 | Lock Washer 8 mm |
| 19 | 417223441 | GOVERNOR CUP ASS'Y - Call your local BRP dealership |
| 20 | 417222515 | Ramp 412 |
| 21 | 250400050 | Spring Pin M10 X 22 |
| 22 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip |
| 23 | 417223501 | Calibration Screw This part replaces 417223460. |
| 24 | 417005600 | Washer |
| 25 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 26 | 732401030 | O-Ring |
| 27 | 417222992 | Slider Shoe |
| 30 | 417009205 | Guard |
| 31 | 250000412 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 32 | 250200006 | Spring Washer 14 mm |
| 33 | 417120000 | Drive Pulley Bolt |
| 34 | 516005503 | Decal English This part replaces 516004542. |
| 37 | 206262590 | SOCKET SET SCREW M6 X 25 - Call your local BRP dealership |
| 38 | 233061414 | Hex. Flange Nut M6 |
| 40 | 417126373 | REAR CAM SLIDER SHOE, RED - Call your local BRP dealership |
| 41 | 417126374 | Front Cam Slider Shoe, Black |
| 42 | 417126901 | BUSHING - Call your local BRP dealership |
| 43 | 417126902 | BUSHING - Call your local BRP dealership |
| 44 | 413408300 | Loctite, Black Max, 3 ml |
| 45 | 371911200 | CIRCLIP - Call your local BRP dealership |
| 46 | 417126878 | CIRCLIP - Call your local BRP dealership |
| 47 | 417126445 | CAM ASS'Y - Call your local BRP dealership |
| 48 | 417126381 | GUARD - Call your local BRP dealership |
| 49 | 504099600 | STOPPER WASHER - Call your local BRP dealership |
| 50 | 417127061 | Spring |
| 51 | 417126733 | SPACER - Call your local BRP dealership |
| 52 | 417126734 | HALF KEY - Call your local BRP dealership |
| 53 | 504112300 | SHIM - Call your local BRP dealership |
| 54 | 417126322 | SWIVEL ABUTMENT - Call your local BRP dealership |
| 55 | 517302322 | Strength Washer |
| 56 | 207287544 | Hex. Cap Screw M8 X 75 |
| 58 | 417300399 | Spacer |
| 59 | 417300252 | Spacer |
| 60 | 417300265 | Spacer |
| 61 | 504112000 | Shim |
| 62 | 417300238 | PROTECTOR - Call your local BRP dealership |
| 63 | 417300367 | Drive Belt |
| 64 | 417300382 | Belt Guard |
| 65 | 516005509 | Safety Belt Guard Decal This part replaces 516004595. |
| 66 | 417300380 | Reinforcement |
| 67 | 390909200 | Avex Rivet |
| 68 | 417300381 | Guide |
| 69 | 417300356 | Side Protector |
| 70 | 293150103 | Pop Rivet 3/16" |
| 71 | 417300386 | Front Belt Guard Bracket |
| 72 | 293150104 | Pop Rivet 3/16" |
| 73 | 417300448 | BELT GUARD BRACKET - Call your local BRP dealership This part replaces 417300375. |
| 74 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 75 | 114045200 | Hair Pin |
| 76 | 508000599 | Velcro Strip |
| 77 | XXX | Not Available As Spare Parts |
