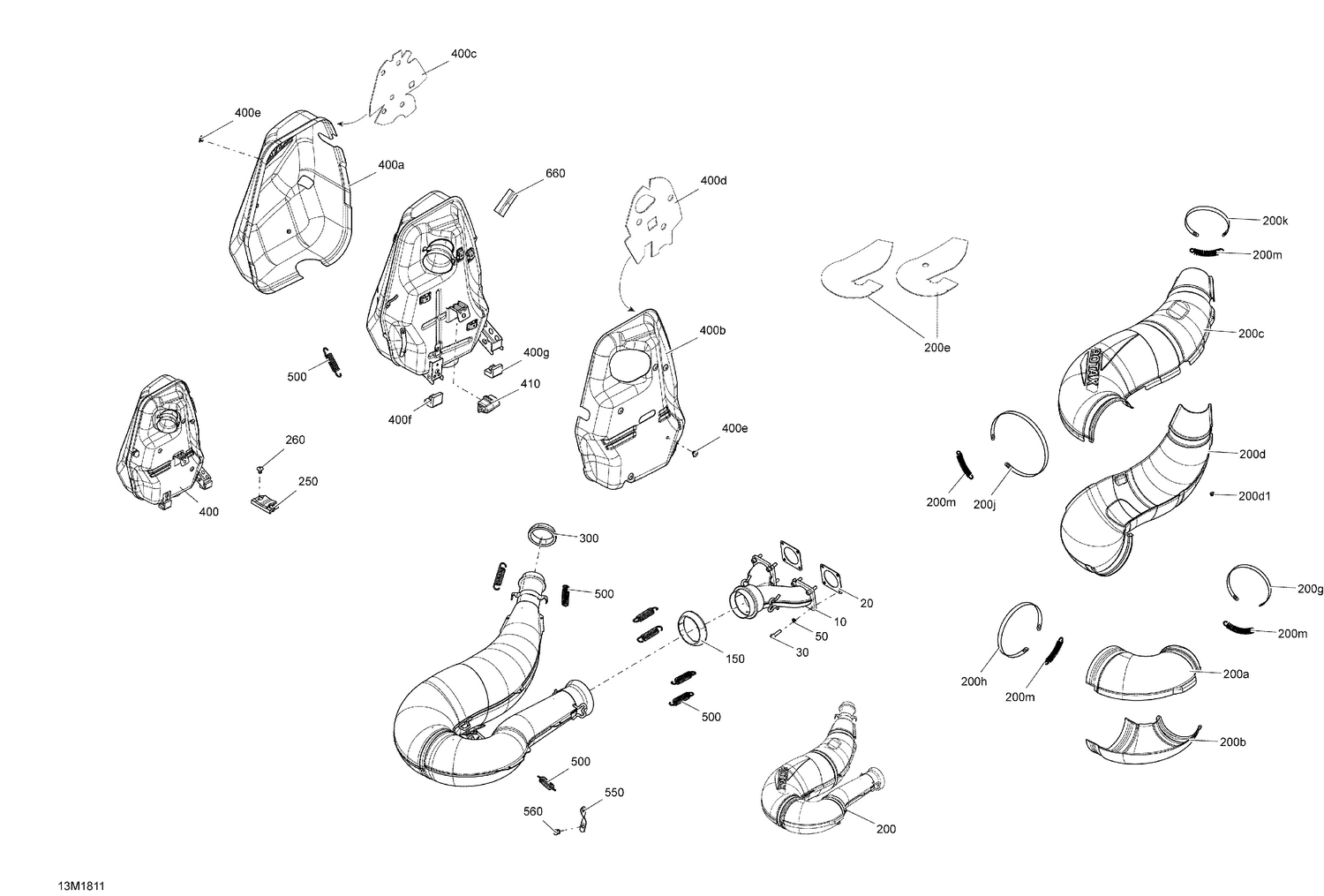

01- Exhaust - 800R E-TEC
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 420673374 | Exhaust Manifold |
| 20 | 420430482 | Gasket |
| 30 | 250000414 | Socket Head Screw M8 X 22 |
| 50 | 250200111 | Washer |
| 150 | 514053487 | Exhaust Gasket |
| 200a | 514054992 | Front Upper Half Enveloppe |
| 200b | 514054993 | Front Lower Half Enveloppe |
| 200c | 514055039 | Rear Upper Half Enveloppe |
| 200d | 514054990 | Rear Lower Half Enveloppe |
| 200d1 | 293150091 | Henrob Rivet |
| 200e | 514054487 | Insulating Wool |
| 200g | 514054408 | Retaining Strap |
| 200h | 514054409 | Retaining Strap |
| 200j | 514054410 | Retaining Strap |
| 200k | 514053499 | Retaining Strap |
| 200m | 514053643 | Spring |
| 250 | 514054275 | Bumper |
| 260 | 293150103 | Pop Rivet 3/16" |
| 300 | 514054174 | Exhaust Gasket |
| 400a | 514054986 | RH DEFLECTOR - Call your local BRP dealership |
| 400b | 514054967 | LH Deflector |
| 400c | 514054711 | RH Insulating Wool |
| 400d | 514054299 | LH Insulating Wool |
| 400e | 390910000 | Pop Rivet 3/16” |
| 400f | 514054274 | Lower Stopper |
| 400g | 514054496 | Lower Stopper |
| 410 | 514054606 | Upper Stopper |
| 500 | 415107100 | Spring |
| 550 | 514054975 | Spring Bracket, 8.0mm hole |
| 560 | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
