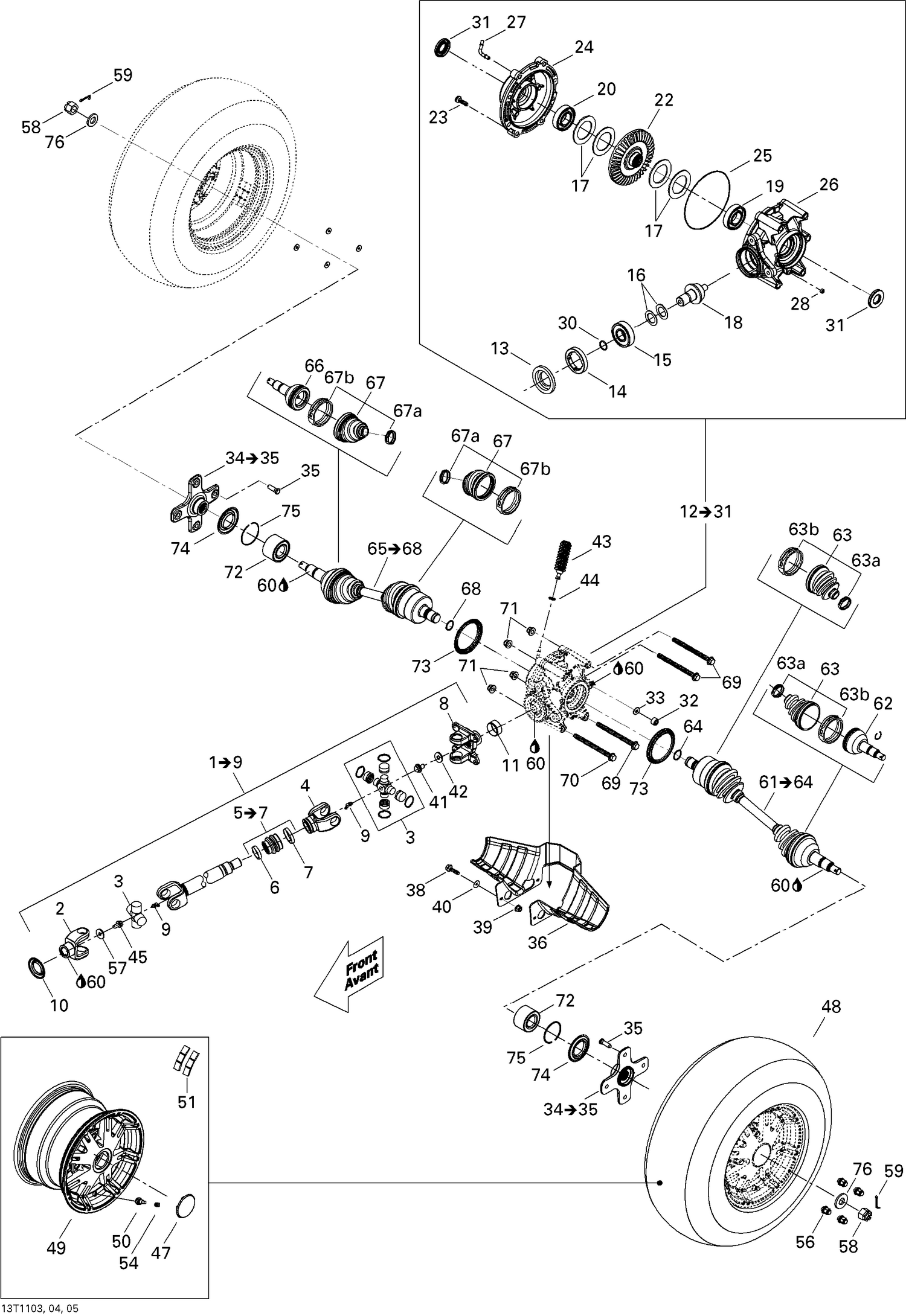

| Ref | Part Number | Description |
|---|
| 2 |
715900101 |
Fixe Yoke This part replaces 705500371. |
| 3 |
715900326 |
Universal Joint This part replaces 703000022. |
| 4 |
705501072 |
SLIDING JOINT - Call your local BRP dealership |
| 5 |
703500255 |
Rubber Boot Kit |
| 6 |
293650138 |
Oetiker Gear Clamp 44.0MM |
| 7 |
705400148 |
Collar |
| 8 |
705500526 |
DISC JOINT - Call your local BRP dealership |
| 9 |
705500841 |
GREASE FITTING - Call your local BRP dealership |
| 10 |
705501123 |
Protector |
| 11 |
705400036 |
Wear Ring |
| 13 |
705401481 |
Oil Seal This part replaces 705400027. |
| 14 |
705502059 |
Nut This part replaces 705500987. |
| 15 |
705500260 |
Ball Bearing |
| 16 |
705500075 |
Pinion Gear Shim .022" |
| 16 |
705501162 |
Pinion Gear Shim This part replaces 705501163. |
| 16 |
705502061 |
Pinion Gear Shim 1.67 mm This part replaces 703500049. |
| 17 |
705502060 |
Differential Shim 0.02 mm This part replaces 703500548. |
| 18 |
703500873 |
Gear-10/36 Too Kit This part replaces 705501570. |
| 19 |
705502737 |
Ball Bearing This part replaces 705500749. |
| 20 |
705502738 |
Ball Bearing This part replaces 705501389. |
| 22 |
703500873 |
Gear-10/36 Too Kit This part replaces 705501403. |
| 23 |
705401601 |
Screw This part replaces 705500892. |
| 24 |
705501507 |
REAR DIFFERENTIAL COVER - Call your local BRP dealership This part replaces 705501393. |
| 25 |
705500265 |
Seal |
| 26 |
705501395 |
PINION REAR COVER - Call your local BRP dealership |
| 27 |
705500893 |
VENT VALVE - Call your local BRP dealership |
| 28 |
705500894 |
Drain Plug |
| 30 |
705500267 |
O-Ring |
| 31 |
705501996 |
Oil Seal This part replaces 705501196. |
| 32 |
705500504 |
Fill Level Plug This part replaces 250400041. |
| 33 |
705500506 |
Copper Washer |
| 35 |
250300055 |
Wheel Stud M10 X 1.25 This part replaces 250300045. |
| 36 |
703500722 |
Protector Kit |
| 38 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 39 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 40 |
250200082 |
Flat Washer |
| 41 |
250001039 |
Hex Flange Screw M12 X 16 This part replaces 250000359. |
| 42 |
250200102 |
Flat Washer M12 |
| 43 |
705400552 |
Rubber Bellow This part replaces 705400352. |
| 44 |
293650042 |
Oetiker Clamp |
| 45 |
250001039 |
Hex Flange Screw M12 X 16 This part replaces 250000359. |
| 47 |
705400680 |
WHEEL CAP - Call your local BRP dealership |
| 50 |
705400193 |
Rim Valve With Cap |
| 54 |
293000110 |
Valve Cap |
| 56 |
250100185 |
Chrome Wheel Nut M10 X 1.25 This part replaces 250100082. |
| 57 |
250200102 |
Flat Washer M12 |
| 58 |
232291413 |
Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 59 |
250400036 |
Cotter Pin |
| 60 |
293550010 |
Synthetic Grease, 400 G |
| 62 |
705500980 |
CV JOINT - Call your local BRP dealership |
| 63 |
705500870 |
Boot Kit |
| 63a |
293650203 |
Oetiker Clamp (27,5mm) |
| 63b |
293650204 |
OETIKER CLAMP - Call your local BRP dealership |
| 64 |
705500845 |
CIRCLIP - Call your local BRP dealership |
| 66 |
705500980 |
CV JOINT - Call your local BRP dealership |
| 67 |
705500870 |
Boot Kit |
| 67a |
293650203 |
Oetiker Clamp (27,5mm) |
| 67b |
293650204 |
OETIKER CLAMP - Call your local BRP dealership |
| 68 |
705500845 |
CIRCLIP - Call your local BRP dealership |
| 69 |
230603036 |
HEX. FLANGED SCREW M10 X 130 - Call your local BRP dealership |
| 70 |
230603536 |
HEX. FLANGED SCREW M10 X 135 - Call your local BRP dealership |
| 71 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 72 |
293350150 |
Ball Bearing This part replaces 293350040. |
| 73 |
705501124 |
Wear Ring |
| 74 |
705501121 |
Wear Sleeve |
| 75 |
293370019 |
Circlip |
