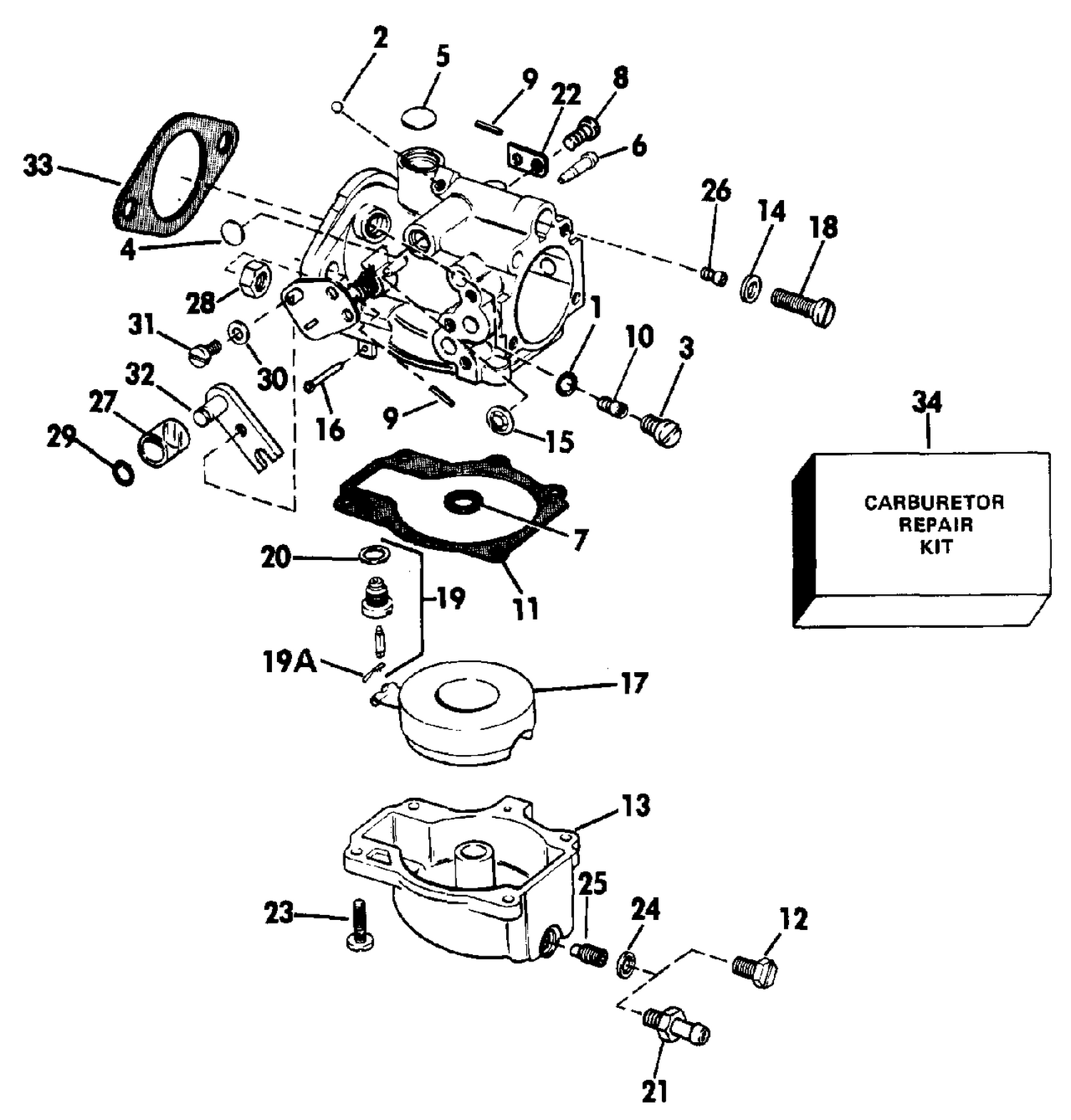

CARBURETOR - ALL 55 MODELS
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 0317501 | SCREW PLUG, Orifice |
| 10 | 0327342 | ORIFICE #46, 250 |
| 19A | 0336842 | CLIP, SPRING This part replaces 0603145. |
| 26 | 0318832 | O-RING, No. 35 |
| 27 | 0397499 | ROLLER & SLEEVE ASSY. |
| 28 | 0316355 | BUT, Carburetor mounting |
| 29 | 0308776 | O-RING |
| 32 | 0397036 | LEVER & PIN |
| 33 | 0325092 | GASKET |
| 0397603 | 0397603 | CARB ASSY., Upper |
| 0398072 | 0432137 | CARB ASSY., Lower This part replaces 0398072. |
