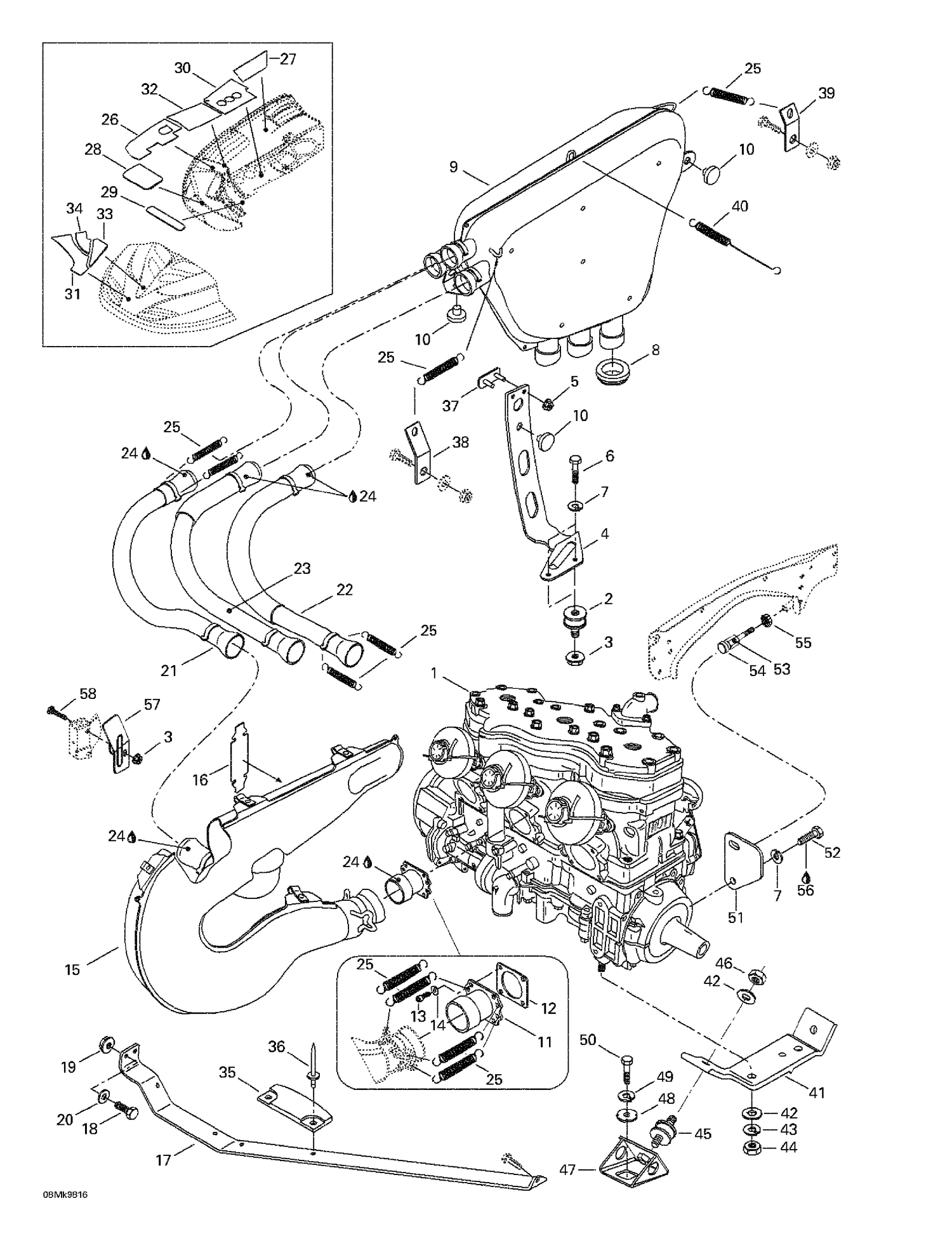

| Ref | Part Number | Description |
|---|
| 1 |
400800200 |
Engine <<809>> |
| 2 |
570016100 |
Rubber Mount |
| 3 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 228781045. |
| 4 |
514046800 |
Support (Muffler) |
| 5 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 6 |
222081265 |
Screw Hex. M8 x 12 |
| 7 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 8 |
570066200 |
Exhaust Grommet |
| 9 |
514046900 |
Muffler |
| 10 |
514053654 |
Rubber Bumper This part replaces 570048700. |
| 11 |
420978816 |
Exhaust Socket |
| 12 |
420850552 |
Gasket |
| 13 |
205062544 |
Socket Head Screw M6 X 25 This part replaces 222962565. |
| 14 |
234161471 |
Lock Washer M6, Black This part replaces 224761110. |
| 16 |
570068600 |
Rubber Pad |
| 17 |
514098900 |
RH Tuned Pipe Support |
| 18 |
207152044 |
Hex. Screw M5 X 20 This part replaces 222052065. |
| 19 |
233251434 |
Flange Elastic Nut M5 This part replaces 228751045. |
| 20 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 21 |
514097100 |
Tail Pipe (MAG) |
| 22 |
514097200 |
Tail Pipe (Central) |
| 23 |
514097300 |
Tail Pipe (PTO) |
| 24 |
293800090 |
Sealant, Loctite, 80 ml This part replaces 413710300. |
| 25 |
415107100 |
Spring |
| 26 |
514098000 |
Reflective Sheet |
| 27 |
415083800 |
RH Reflective Sheet |
| 28 |
415083900 |
Leaf Valve Ø16 X 0.114 (C36) |
| 29 |
415111900 |
Reflective Sheet |
| 30 |
415115000 |
Reflective Sheet |
| 31 |
415112300 |
RH Reflective Sheet |
| 32 |
415084000 |
Reflective Sheet |
| 33 |
415112500 |
RH Reflective Sheet |
| 34 |
415114800 |
RH Reflective Sheet |
| 35 |
570044100 |
Rubber Pad |
| 36 |
390406500 |
Pop Rivet 3/16" |
| 37 |
517294300 |
Bracket |
| 38 |
514049700 |
SPRING BRACKET - Call your local BRP dealership |
| 39 |
514051000 |
Spring Bracket |
| 40 |
415100300 |
Spring |
| 41 |
512055900 |
Engine Support (MAG) |
| 42 |
234001410 |
Flat Washer 10 mm This part replaces 224001211. |
| 43 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188. |
| 44 |
232006414 |
Hex. Nut M10 X 1.5 This part replaces 228001045. |
| 45 |
570127700 |
RUBBER MOUNT - Call your local BRP dealership |
| 46 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 47 |
512050900 |
Engine Support |
| 48 |
512056700 |
Lock Washer |
| 49 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188. |
| 50 |
207102544 |
Hex. Screw M10 X 25 This part replaces 222002565. |
| 51 |
512056000 |
STOPPER PLATE - Call your local BRP dealership |
| 52 |
207181644 |
Hex. Screw M8 x 16 This part replaces 222081665. |
| 53 |
512056900 |
Stopper Screw |
| 54 |
570049500 |
Stopper |
| 55 |
232120414 |
HEX. NUT M12 - Call your local BRP dealership This part replaces 228020045. |
| 56 |
293800005 |
Loctite 271, 10 ml This part replaces 413707400. |
| 57 |
514050800 |
Support |
| 415112400 |
Feuille |
Réflectrice GA 415112400 |
| 415112400 |
LH |
Reflective Sheet 415112400 |
| 415112600 |
Feuille |
Réflectrice GA 415112600 |
| 415112600 |
LH |
Reflective Sheet 415112600 |
| 415114900 |
Feuille |
Réflectrice GA 415114900 |
| 415114900 |
LH |
Reflective Sheet 415114900 |
| 512055902 |
Engine |
Support (PTO) 512055902 |
| 514098902 |
LH |
Tuned Pipe Support 514098902 |
