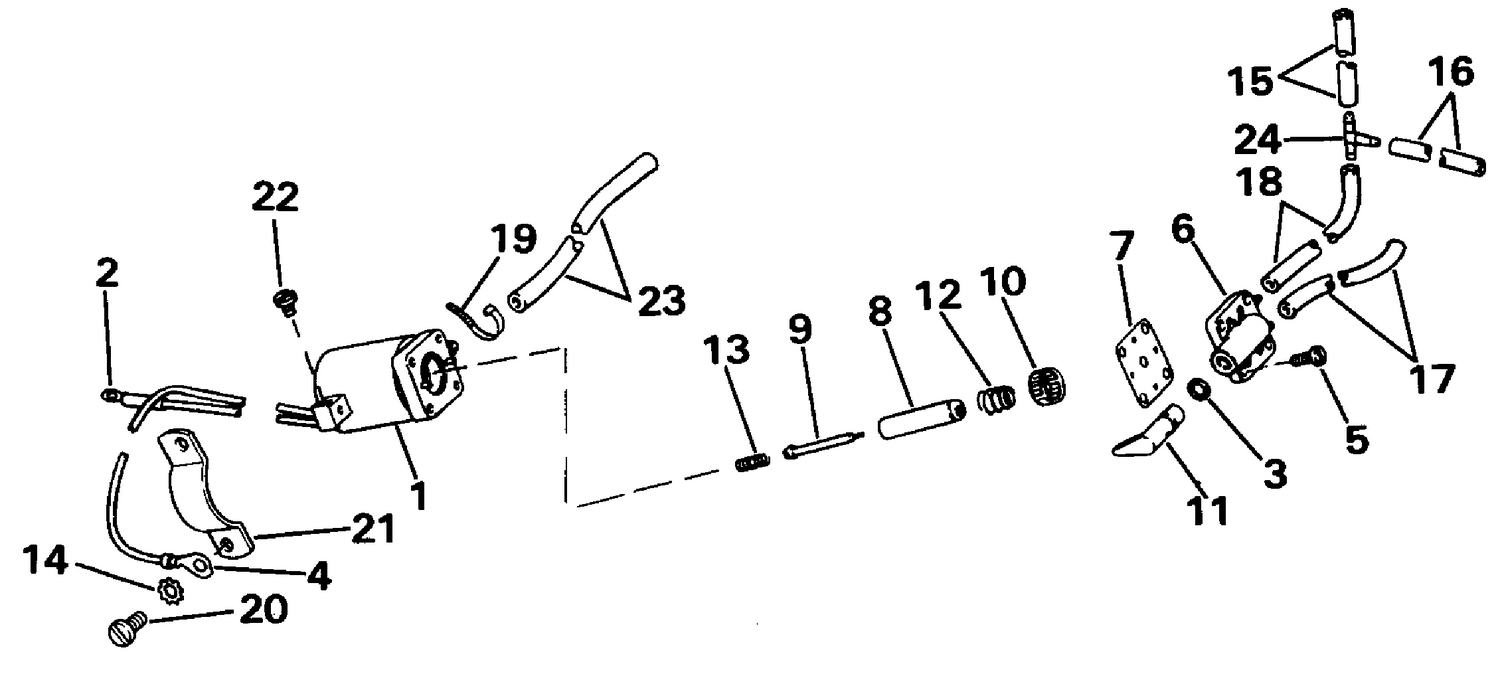

ELECTRIC PRIMER SYSTEM
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5007356 | Kit Ay This part replaces 0397909. |
| 6 | 0511807 | COVER&GASKET AY |
| 7 | 0333448 | GASKET |
| 15 | HOSE, | Tee to mid. carb. 6 in. (152mm) |
| 16 | HOSE, | Tee to lower carb. 1 in. (25mm) |
| 17 | HOSE, | Primer to upper carb. 12 in. (305mm) |
| 18 | HOSE, | Tee to primer, 2 1/4 in. (60mm) |
| 20 | 0304027 | VIS, arbre de commande de sens de marche |
| 21 | 0330153 | CLAMP, Water valve |
| 22 | 0329182 | VIS, borne |
| 23 | HOSE, | Primer to tee, 4 in. (102mm) |
