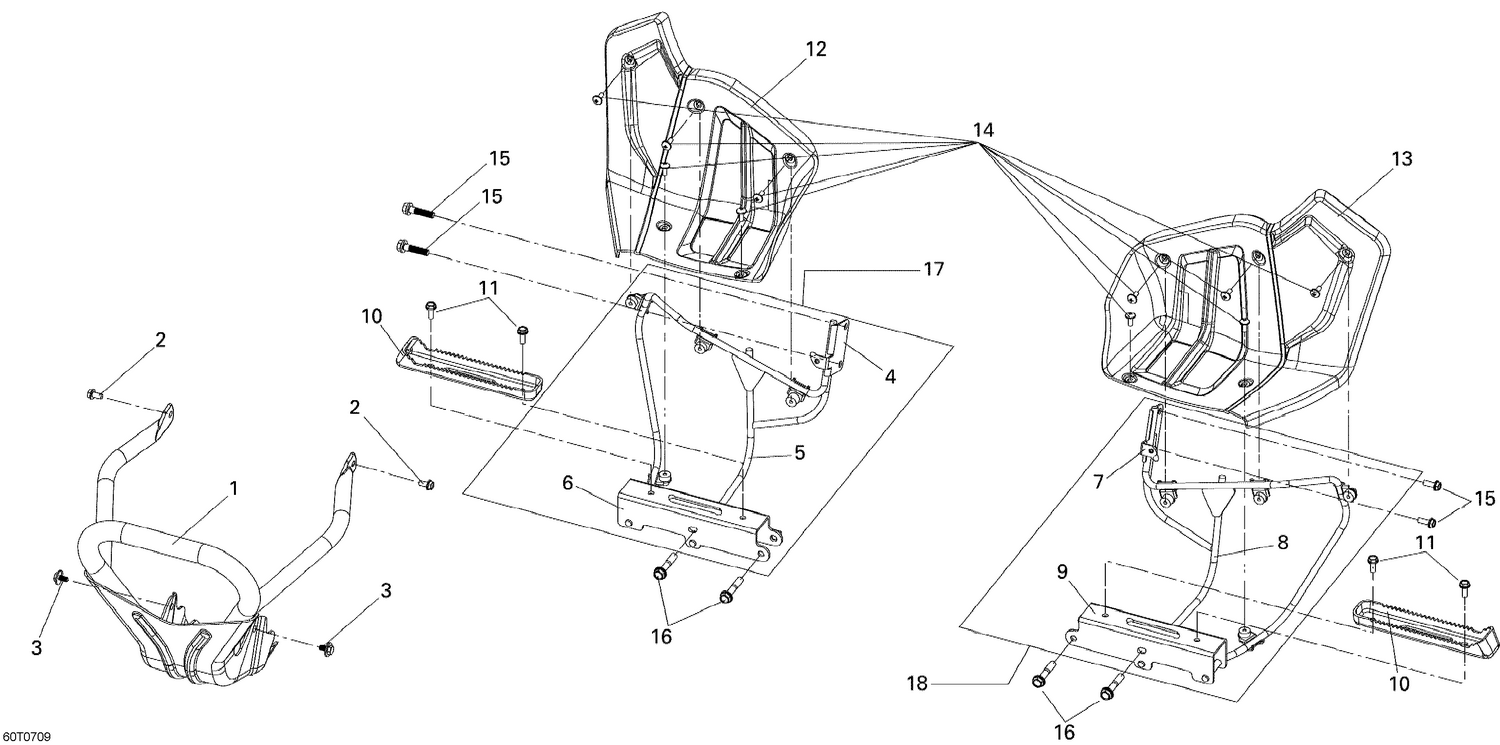

09- Front Bumper And Footrests
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S50400RCA000 | Front Bumper |
| 2 | S958010601207 | Flanged Bolt M6 X 12 |
| 3 | S958010801407 | Flanged Bolt M8 X 14 |
| 4 | NASP/NDPR | Not Available As Spare Parts |
| 5 | NASP/NDPR | Not Available As Spare Parts |
| 6 | NASP/NDPR | Not Available As Spare Parts |
| 7 | NASP/NDPR | Not Available As Spare Parts |
| 8 | NASP/NDPR | Not Available As Spare Parts |
| 9 | NASP/NDPR | Not Available As Spare Parts |
| 10 | S50620RCA000KB | Foot Peg This part replaces S50620RCA000. |
| 11 | S958010601607 | Flanged Bolt M6 X 16 |
| 12 | S64310RCA000 | RH Footrest |
| 13 | S64410RCA000 | LH Footrest |
| 14 | S90117H9A000 | Washer Screw |
| 15 | S958010601607 | Flanged Bolt M6 X 16 |
| 16 | S958010805007 | Flanged Bolt M8 X 50 |
| 17 | S5054ARCA000 | RH Footrest Bar |
