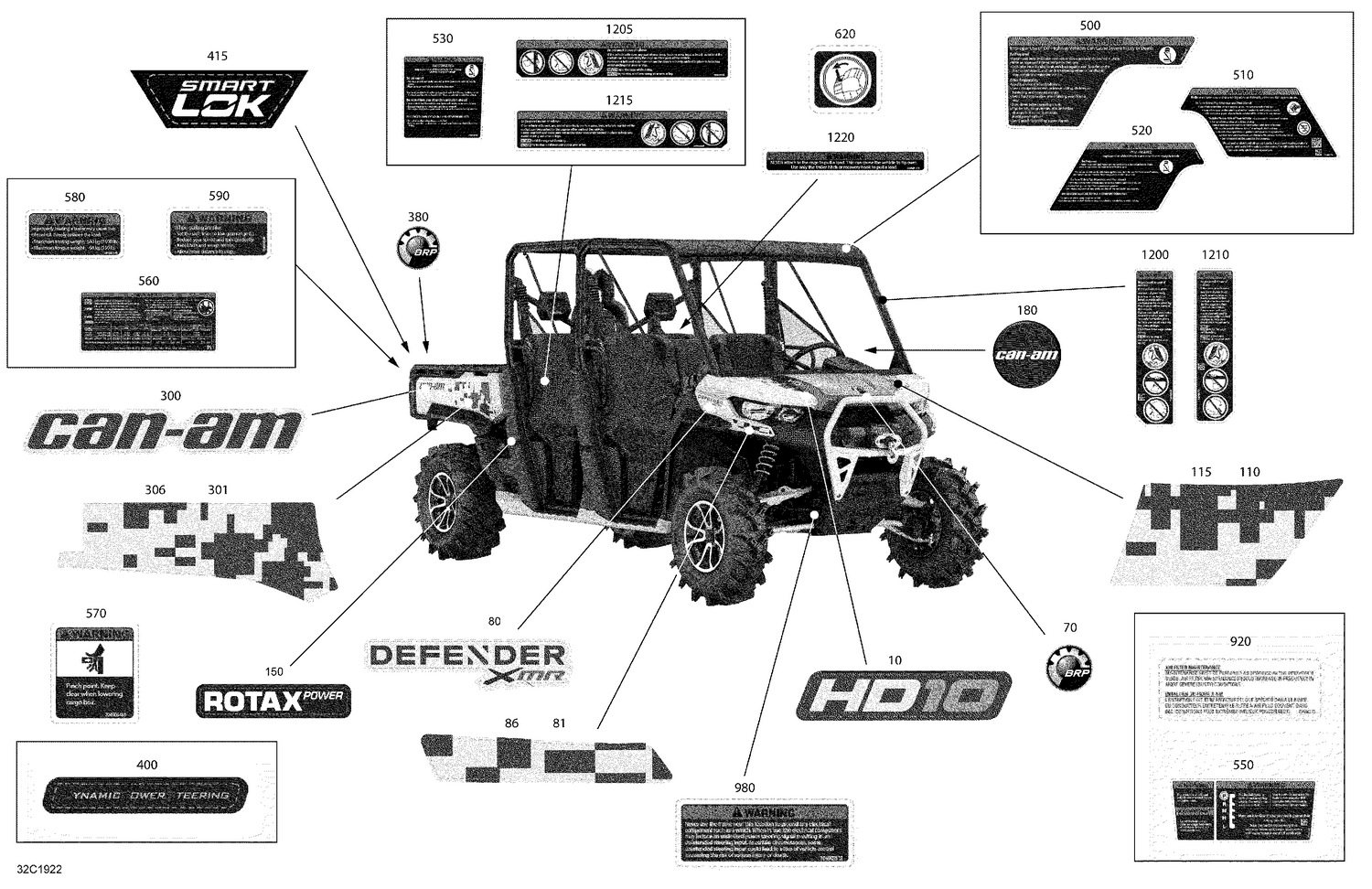

09- Decals - HD10 - XMR
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 704906740 | Hood Decal HD10 |
| 70 | 516008739 | BRP Logo 68mm |
| 80 | 704906520 | Lateral Decal Defender XMR |
| 81 | 704907221 | LH Front Side Decal |
| 86 | 704907222 | RH Front Side Decal |
| 110 | 704907217 | Decal Left Cover |
| 115 | 704907218 | Decal Right Cover |
| 150 | 704905524 | Decal ROTAX POWER |
| 180 | 704904274 | Can-Am Logo |
| 300 | 704906756 | CAN-AM Decal |
| 301 | 704907219 | LH Rear Side Decal |
| 306 | 704907220 | RH Rear Side Decal |
| 380 | 516008739 | BRP Logo 68mm |
| 400 | 704905637 | Decal "Dynamic Power Steering" |
| 415 | 704907186 | Decal "Smart Lok" |
| 500 | 704905476 | Warning Label Operator's Guide |
| 510 | 704907239 | Warning Decal Operating Guide |
| 520 | 704905487 | Warning Label Passenger |
| 530 | 704908557 | Rear Passenger Warning Decal This part replaces 704905800. |
| 550 | 704907712 | Warning Label Dashboard |
| 560 | 704907118 | Warning Label Cargo Load |
| 570 | 704905488 | Warning Label Injury |
| 580 | 704905479 | Warning Label Towing |
| 590 | 704905481 | Warning Label Trailer |
| 620 | 704906029 | Label Symbol |
| 920 | 707800373 | Air Filter Maintenance Decal |
| 980 | 704908273 | Ground And DPS Warning Label This part replaces 704905495. |
| 1200 | 704906768 | Roll Over Warning Label |
| 1205 | 704908558 | Roll Over Warning Label This part replaces 704905928. |
| 1210 | 704906769 | Roll Over Warning Label |
| 1215 | 704908559 | Roll Over Warning Label This part replaces 704905930. |
