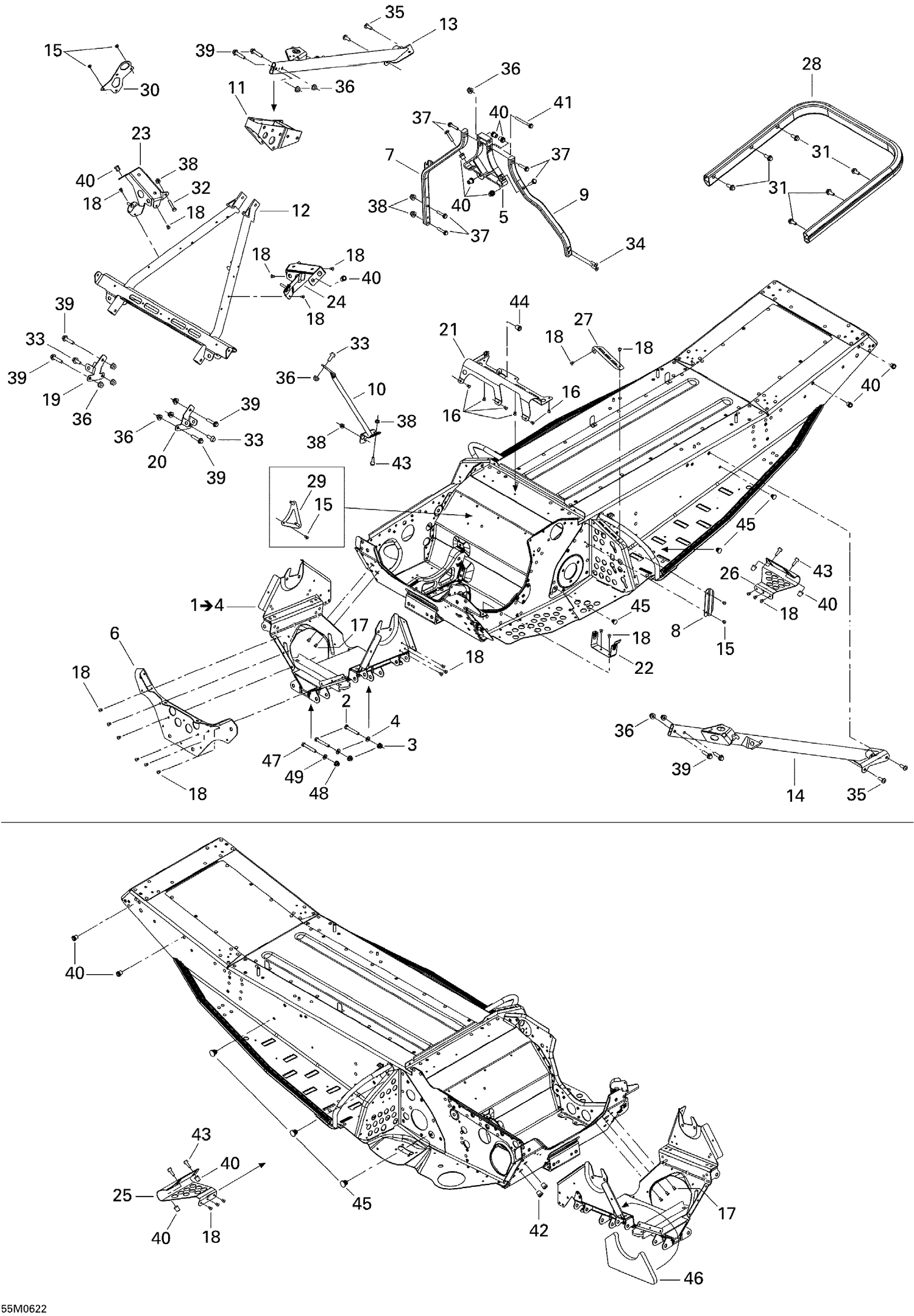

| Ref | Part Number | Description |
|---|
| 1 |
518325423 |
Cross Member This part replaces 518324694. |
| 2 |
207085544 |
Hex. Screw M8 X 55 |
| 3 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 4 |
234081410 |
Flat Washer 8 mm |
| 5 |
518324377 |
CENTER STIFFENER - Call your local BRP dealership |
| 6 |
518324726 |
Front Plate |
| 7 |
518324397 |
RH HANDLE SUPPORT - Call your local BRP dealership |
| 8 |
518317504 |
CABLE PROTECTOR - Call your local BRP dealership |
| 9 |
518324376 |
LH HANDLE SUPPORT - Call your local BRP dealership |
| 10 |
518323472 |
BRACE, BLACK - Call your local BRP dealership |
| 11 |
518323854 |
BRACKET BLOCK - Call your local BRP dealership |
| 12 |
518324739 |
UPPER CROSS MEMBER - Call your local BRP dealership |
| 13 |
518324182 |
RH MEMBER - Call your local BRP dealership |
| 14 |
518324183 |
LH Member |
| 15 |
390402200 |
Pop Rivet 3/16" |
| 16 |
390402400 |
Pop Rivet 3/16" |
| 17 |
390909100 |
Avex Rivet |
| 18 |
390909200 |
Avex Rivet |
| 19 |
518322461 |
RH SHOCK BRACKET - Call your local BRP dealership |
| 20 |
518322462 |
LH SHOCK BRACKET - Call your local BRP dealership |
| 21 |
518323532 |
INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership |
| 22 |
518322726 |
GUARD BELT BRACKET, BLACK - Call your local BRP dealership |
| 23 |
518324513 |
RH CONSOLE SUPPORT - Call your local BRP dealership |
| 24 |
518323536 |
LH Console Support |
| 25 |
518324391 |
RH TOE HOLD - Call your local BRP dealership |
| 26 |
518324392 |
LH TOE HOLD - Call your local BRP dealership |
| 27 |
518323105 |
PLATE, BLACK - Call your local BRP dealership |
| 28 |
518324655 |
Rear Bumper |
| 29 |
518324312 |
TRUNK BRACKET, BLACK - Call your local BRP dealership |
| 30 |
518324315 |
PLATE - Call your local BRP dealership |
| 31 |
236282084 |
Hex. Screw M8 X 20 |
| 32 |
207063544 |
Hex. Flange Screw M6 X 35 |
| 33 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 34 |
205862044 |
Socket Head Screw M6 X 20, Scotch Grip |
| 35 |
250000887 |
Pan Head Torx Screw M8 X 12 This part replaces 250000154. |
| 36 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 37 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 38 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 39 |
207683544 |
Hex. Flange Screw M8 X 35 |
| 40 |
293450275 |
Insert This part replaces 415107300. |
| 41 |
207687044 |
Hex. Flange Screw M8 X 70 |
| 42 |
293450166 |
Insert |
| 43 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 44 |
250100242 |
Threaded Insert M6 X 1.0 This part replaces 293450232. |
| 45 |
518321954 |
Panel Fastener |
| 46 |
518323453 |
RH FRONT FOAM - Call your local BRP dealership |
| 47 |
207085544 |
Hex. Screw M8 X 55 |
| 48 |
233281414 |
Hex. Flange Elastic Nut M8 |
