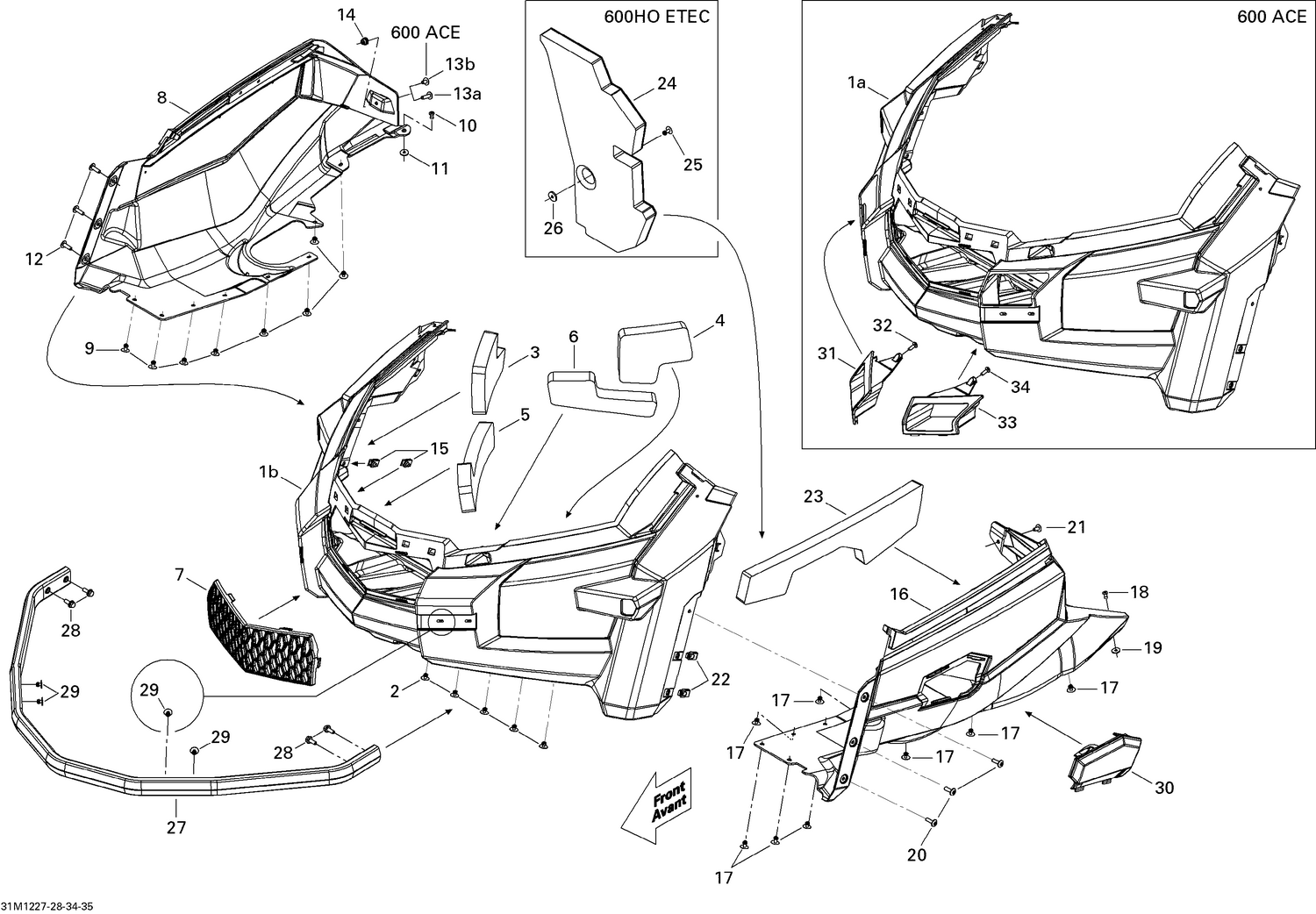

09- Bottom Pan — Parts Catalog

Ref	Part Number	Description
1a	502007362	Bottom Pan This part replaces 502007104.
1b	XXX	Not Available As Spare Parts
2	293150104	Pop Rivet 3/16"
3	502007204	RH Upper Bottom Pan Foam
4	502007205	LH Upper Bottom Pan Foam
5	502007206	RH Lower Bottom Pan Foam
6	502007207	LH Lower Bottom Pan Foam
7	502006887	Botton Pan Grille
8	502006965	Black RH Bottom Pan
9	293150104	Pop Rivet 3/16"
10	390402300	Pop Rivet 3/16"
11	517124300	Washer
12	250000722	Torx Screw M6 X 20 This part replaces 250000128.
13a	XXX	Not Available As Spare Parts
13b	250000995	Torx-truss M/s M6 X 10 This part replaces 250000210.
14	XXX	Not Available As Spare Parts
15	250100198	Panel Nut M6 X 1.0 This part replaces 250100113.
16	502006966	Black LH Bottom Pan
17	293150104	Pop Rivet 3/16"
18	390402300	Pop Rivet 3/16"
19	517124300	Washer
20	250000722	Torx Screw M6 X 20 This part replaces 250000128.
21	250000767	Torx Truss Screw M6 X 12 This part replaces 250000325.
22	250100198	Panel Nut M6 X 1.0 This part replaces 250100113.
23	502007208	LH Bottom Pan Foam
24	XXX	Not Available As Spare Parts
25	XXX	Not Available As Spare Parts
26	XXX	Not Available As Spare Parts
27	502006963	Anodized - Front Bumper
28	207661644	Hex. Flange Screw M6 X 16
29	293150104	Pop Rivet 3/16"
30	502006970	Black Bottom Pan Door
31	502007127	RH Air Inlet
32	250000720	Torx Screw K50 X 16 This part replaces 250000146.
33	502007128	LH Air Inlet
