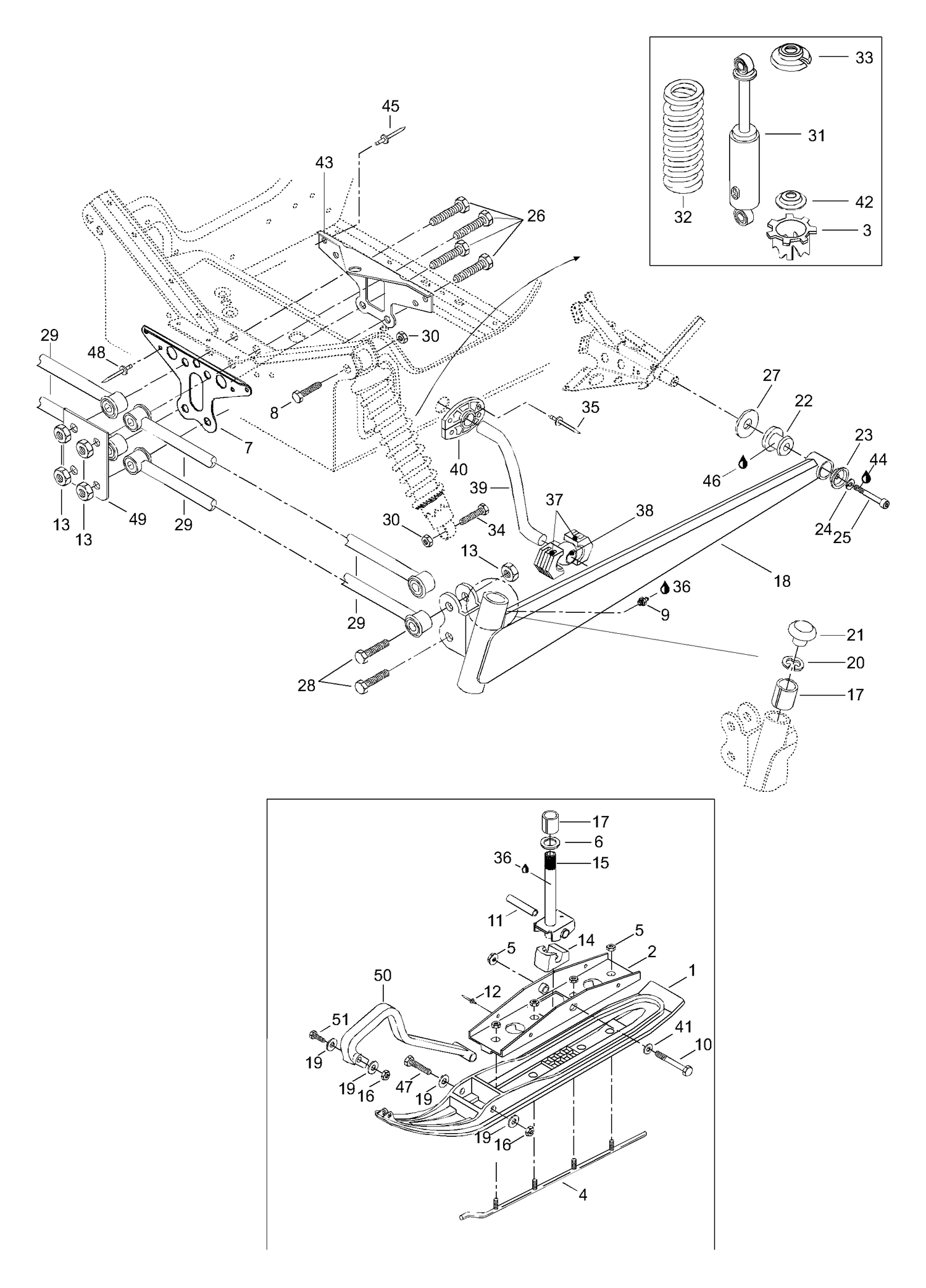

08- Front Suspension
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505070189 | Ski liner This part replaces 505070190. |
| 2 | 505070055 | Bridge assy |
| 3 | 505073625 | Adjustment Cam This part replaces 503183700. |
| 4 | 860501900 | CARBIDE RUNNER - Call your local BRP dealership |
| 5 | 33074 | NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership |
| 6 | 505070004 | WASHER - Call your local BRP dealership |
| 7 | 517254800 | Front link plate |
| 8 | 40019 | Screw M10x60 |
| 9 | 34011 | Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 10 | 40814 | Screw M10x110 |
| 11 | 506133300 | Sleeve |
| 12 | 390911100 | RIVET_POP 1/4 - Call your local BRP dealership |
| 13 | 232521414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 33013. |
| 14 | 505072018 | SKI STOPPER - Call your local BRP dealership This part replaces 506151233. |
| 15 | 506151234 | Ski leg |
| 16 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 17 | 505070003 | Sleeve |
| 18 | 505070378 | R.H. swing arm |
| 18 | 505070379 | L.H. swing arm |
| 19 | 234081410 | Flat Washer 8 mm This part replaces 20004. |
| 20 | 371910400 | CIRCLIP - Call your local BRP dealership |
| 21 | 572091300 | Cap |
| 22 | 570062200 | DAMPER - Call your local BRP dealership |
| 23 | 705007171 | Cup This part replaces 506115800. |
| 24 | 20014 | Spring washer |
| 25 | 40289 | Allen screw M8x25 |
| 26 | 40023 | Screw M10x100 |
| 27 | 503146700 | WASHER - Call your local BRP dealership |
| 28 | 401250 | Screw M12x50 |
| 29 | 580649700 | Arm |
| 30 | 33082 | Nut elastic M10 |
| 31 | 505070012 | Shock |
| 32 | 414976100 | Spring |
| 33 | 706200881 | Spring Stopper This part replaces 503140600. |
| 34 | 40018 | Screw M10x55 |
| 35 | 390402300 | Rivet |
| 36 | 413711500 | SYNTHETIC GREASE - Call your local BRP dealership |
| 37 | 572069800 | Block sliding |
| 38 | 506127300 | Ball joint |
| 39 | 506134100 | Stabilisator |
| 40 | 505070191 | Bushing |
| 41 | 732900049 | Washer |
| 42 | 503187500 | Spring guide |
| 43 | 517254900 | Rear link plate |
| 44 | 293800060 | Loctite 243, 10ml |
| 45 | 390909200 | Avex Rivet |
| 46 | 293550030 | Grease, Super Lube This part replaces 293550014. |
| 47 | 40869 | Screw M8x100 |
| 48 | 390404900 | Rivet |
