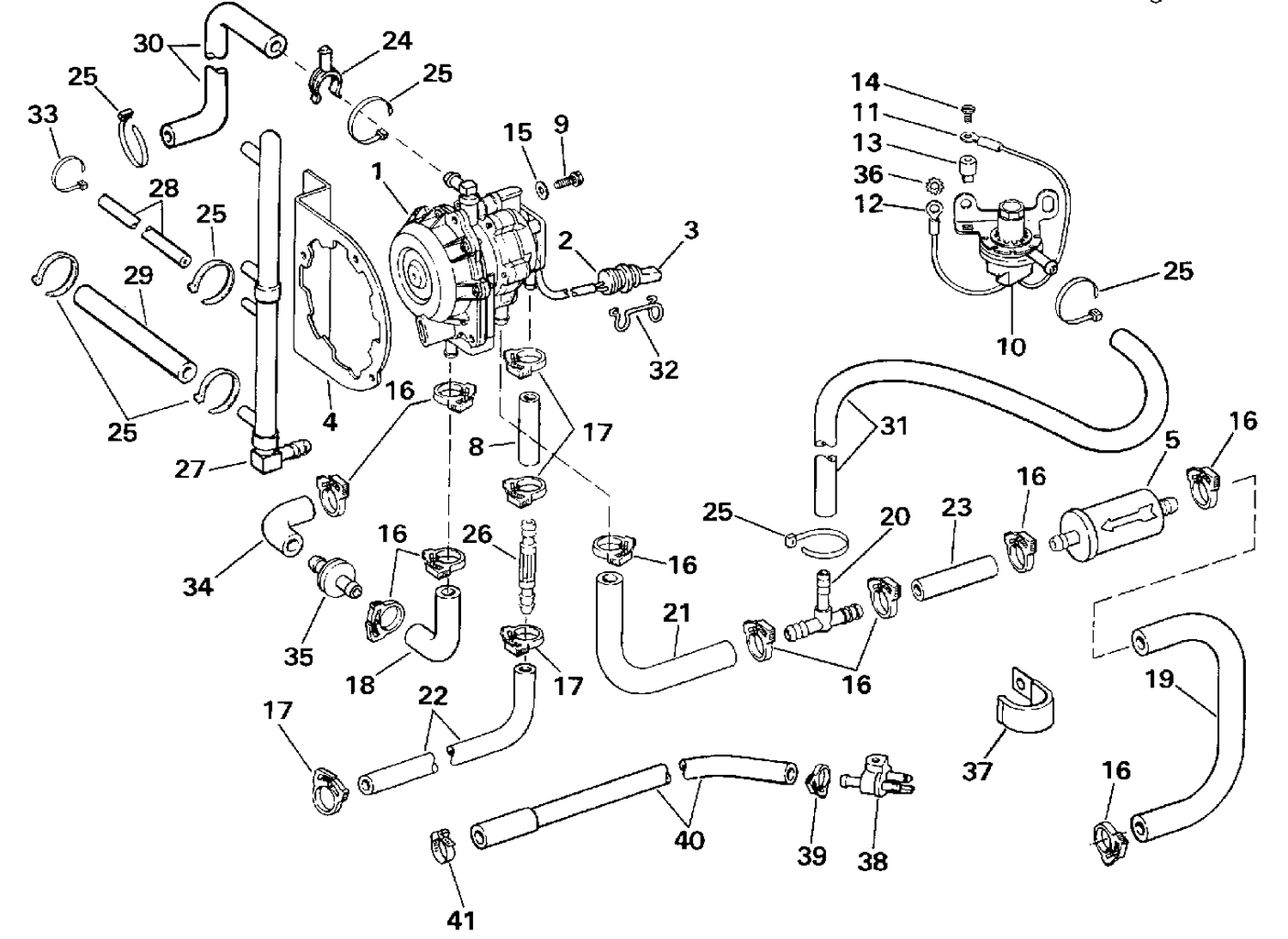

| Ref | Part Number | Description |
|---|
| 1 |
5007423 |
Kit Ay This part replaces 0174878. |
| 4 |
0331122 |
BRACKET, Fuel pump to manifold |
| 5 |
0398327 |
FILTER, MAP sensor |
| 8 |
HOSE, |
Sight tube to pump 1 1/2 in. (38mm) |
| 13 |
0328600 |
TERMINAL GROMMET |
| 14 |
0330448 |
SCREW, Switch lead |
| 17 |
0322654 |
PINCE RAPIDE, flexible d'huile |
| 18 |
0333446 |
FLEXIBLE, entrée d'eau |
| 19 |
0333381 |
HOSE, Connector to filter |
| 20 |
0329603 |
TEE, Fuel hose |
| 21 |
HOSE, |
Tee to fuel pump 4 1/2 in. (114mm) |
| 22 |
0333414 |
HOSE, Connector to sight tube |
| 23 |
HOSE, |
Filter to tee 1 1/2 in. (38mm) |
| 24 |
0329661 |
SUPPORT/BOUCHON |
| 25 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 26 |
0331623 |
FILTER AND HOSE ASSY. |
| 27 |
0390466 |
FUEL MANIFOLD ASSY |
| 28 |
HOSE, |
Manifold primer 6 3/4 in. (171mm) |
| 29 |
HOSE, |
Carb to manifold 6 1/2 in. (165mm) |
| 30 |
0333410 |
HOSE, Fuel connector to filter |
| 31 |
0332728 |
HOSE, Tee to # 3 carb. |
| 32 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 34 |
0333446 |
FLEXIBLE, entrée d'eau |
| 38 |
0393334 |
CONNECTEUR, carburant - mâle |
| 0398339 |
0398339 |
FUEL CONNECTOR & HOSE |
