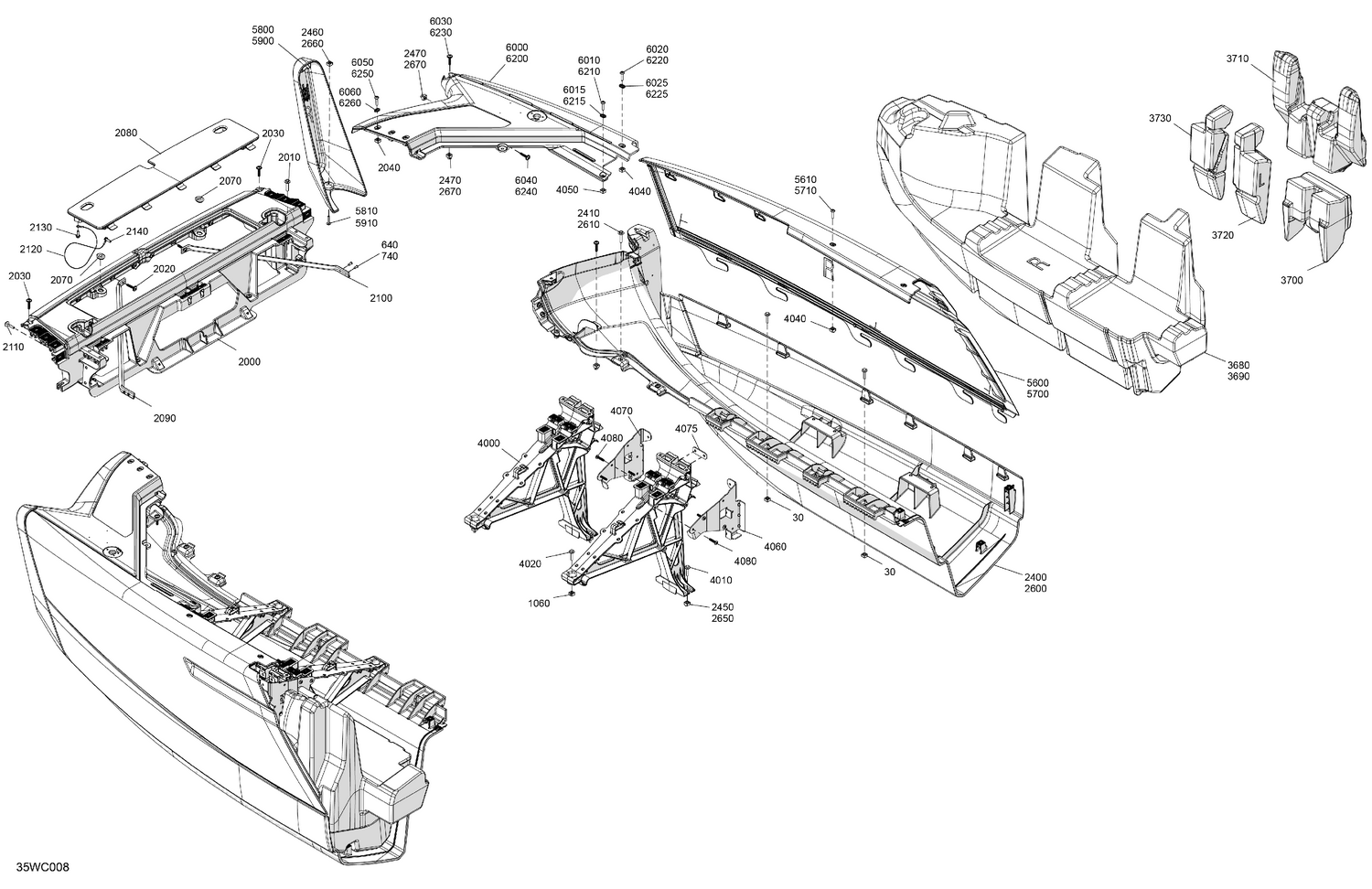

06- HULL - Front Deflector Float and Front Bumper
Parts (67)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 269502544 | Nut Housing M6 |
| 640 | 293150039 | Pop Rivet 3/16" |
| 740 | 293150039 | Pop Rivet 3/16" |
| 1060 | 269502544 | Nut Housing M6 |
| 2000 | 291006267 | Deflector Trim |
| 2010 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 2020 | 250001152 | Sems Plastite Torx Screw M6.81X35 |
| 2030 | 250001152 | Sems Plastite Torx Screw M6.81X35 |
| 2040 | 269502544 | Nut Housing M6 |
| 2070 | 705000321 | Oval Washer |
| 2080 | 291005403 | Access Cover |
| 2090 | 291005632 | LH Trim Reinforcement |
| 2100 | 291005640 | RH Trim Reinforcement |
| 2110 | 250001164 | Hex SEMS Screw M6X30 |
| 2120 | 291005711 | Retaining Cable |
| 2130 | 243162060 | Hex. Flange Screw M6.81 x 20 |
| 2140 | 243162060 | Hex. Flange Screw M6.81 x 20 |
| 2400 | 291004839 | LH Front Deflector Float |
| 2410 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 2450 | 269502544 | Nut Housing M6 |
| 2460 | 269502544 | Nut Housing M6 |
| 2470 | 291005889 | Platite Insert 6.81 |
| 2600 | 291006413 | RH Float Deflector This part replaces 291004841. |
| 2610 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 2650 | 269502544 | Nut Housing M6 |
| 2660 | 269502544 | Nut Housing M6 |
| 2670 | 291005889 | Platite Insert 6.81 |
| 3680 | 292002789 | LH Front Float |
| 3690 | 292002790 | RH Front Float |
| 3700 | 291005639 | Lower Float Support |
| 3710 | 291005845 | Upper Float Support |
| 3720 | 291005637 | LH Float Support |
| 3730 | 291005636 | RH Float Support |
| 4000 | 291004895 | Interlocking Tile Support |
| 4010 | 250000969 | Hex Screw SEMS M6X35, SS |
| 4020 | 250000969 | Hex Screw SEMS M6X35, SS |
| 4040 | 269502544 | Nut Housing M6 |
| 4050 | 269502544 | Nut Housing M6 |
| 4060 | 291006168 | Reinforcement Support |
| 4070 | 291006169 | Reinforcement Support |
| 4075 | 291005950 | Connecting Plate |
| 4080 | 250000879 | Plastite Torx Screw M6.81X30 |
| 5600 | 291005862 | Noen Yellow, LH Front Panel |
| 5610 | 250001116 | Screw-Torx Truss Cone Head M6X25 |
| 5700 | 291005864 | Noen Yellow, RH Front Panel |
| 5710 | 250001116 | Screw-Torx Truss Cone Head M6X25 |
| 5800 | 291005101 | LH Front Bumper |
| 5810 | 250001116 | Screw-Torx Truss Cone Head M6X25 |
| 5900 | 291005102 | RH Front Bumper |
| 5910 | 250001116 | Screw-Torx Truss Cone Head M6X25 |
| 6000 | 291005866 | Neon Yellow, LH Front Panel Trim |
| 6010 | 250001116 | Screw-Torx Truss Cone Head M6X25 |
| 6015 | 291003880 | Oval Washer |
| 6020 | 250001116 | Screw-Torx Truss Cone Head M6X25 |
| 6025 | 291003880 | Oval Washer |
| 6030 | 250001152 | Sems Plastite Torx Screw M6.81X35 |
| 6040 | 250001152 | Sems Plastite Torx Screw M6.81X35 |
| 6050 | 250001116 | Screw-Torx Truss Cone Head M6X25 |
| 6060 | 291003880 | Oval Washer |
| 6200 | 291005868 | Neon Yellow, RH Front Panel Trim |
| 6210 | 250001116 | Screw-Torx Truss Cone Head M6X25 |
| 6215 | 291003880 | Oval Washer |
| 6220 | 250001116 | Screw-Torx Truss Cone Head M6X25 |
| 6225 | 291003880 | Oval Washer |
| 6230 | 250001152 | Sems Plastite Torx Screw M6.81X35 |
| 6240 | 250001152 | Sems Plastite Torx Screw M6.81X35 |
| 6250 | 250001116 | Screw-Torx Truss Cone Head M6X25 |
