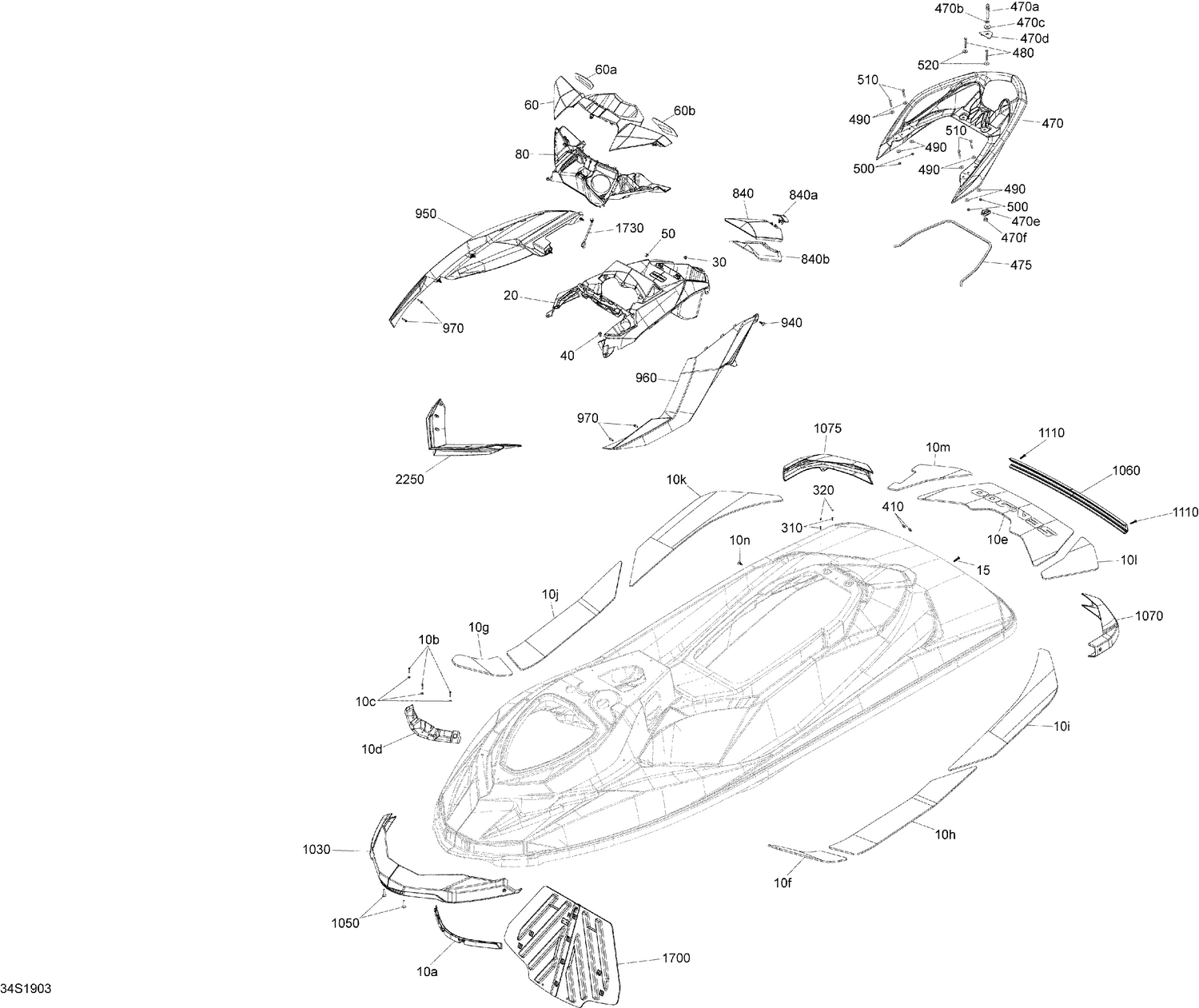

| Ref | Part Number | Description |
|---|
| 10b |
241142560 |
Hex. Flange Screw K40 X 25 |
| 10c |
234042600 |
Flat Washer 4 mm, Stainless |
| 10e |
291003096 |
Swim Platform Carpet |
| 10f |
291003058 |
Front Carpet LH |
| 10g |
291003059 |
Front Carpet RH |
| 10h |
291003060 |
Front Center Carpet LH |
| 10i |
291003329 |
Rear Center Carpet LH |
| 10j |
291003061 |
Front Center Carpet RH |
| 10k |
291003330 |
Rear Center Carpet RH |
| 10l |
291003062 |
Rear Carpet LH |
| 10m |
291003063 |
Rear Carpet RH |
| 20 |
291004276 |
Console |
| 30 |
293830005 |
Rubber Bumper |
| 40 |
293150123 |
Pop Rivet 3/16" |
| 50 |
293150186 |
Pop Rivet 3/16 |
| 60a |
291003090 |
Mirror RH, With Double-Face Tape |
| 60b |
291003091 |
Mirror LH, With Double-Face Tape |
| 80 |
291004271 |
Deep Black, Mirror Support |
| 310 |
293150016 |
Rivet 1/8" |
| 320 |
293000014 |
Black, Snap Cap |
| 410 |
293050001 |
Flat Washer M8.5 x 18 |
| 470a |
291003877 |
Stud Seat |
| 470b |
232100600 |
Hex. Jam Nut M10 |
| 470c |
234002600 |
Flat Washer 10 mm, Stainless |
| 470d |
269002125 |
Seat Stud Spacer |
| 470e |
269002126 |
SEAT STUD SUPPORT - Call your local BRP dealership |
| 470f |
232501200 |
Elastic Stop Nut M10, Brass |
| 475 |
219704378 |
Gasket 3000Mm Long |
| 480 |
207065060 |
Hex. Screw M6 X 50 |
| 490 |
234062600 |
Flat Washer M6, Stainless |
| 500 |
232561200 |
Brass Elastic Stop Nut M6 |
| 510 |
207164060 |
Hex. Screw M6 X 40 |
| 520 |
250200022 |
Flat Washer M6.6 X 22 |
| 840a |
264000164 |
Black, Latch This part replaces 264000091. |
| 840b |
293250236 |
Gasket |
| 940 |
293730006 |
Black, Dart |
| 970 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 1030 |
291004277 |
Front Bumper |
| 1050 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 1070 |
291004278 |
Black, Corner Bumper |
| 1075 |
291004279 |
Black, Corner Bumper |
| 1110 |
250001007 |
Screw Torx M6.81 X 30 |
| 1700 |
291004572 |
Divider Ass'y |
| 1730 |
269502111 |
Holding Strap |
