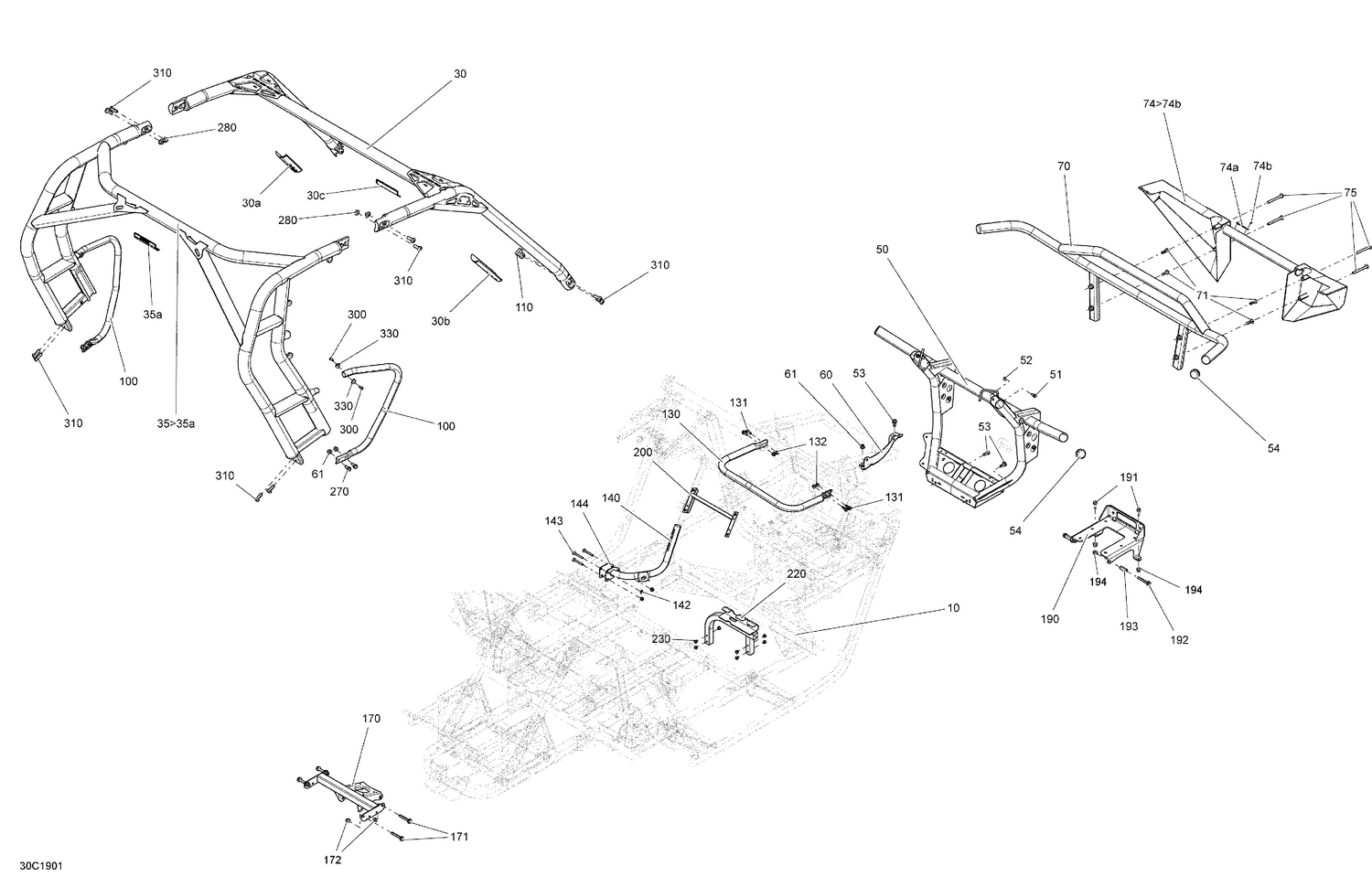

09- Frame — Parts Catalog

Ref	Part Number	Description
10a	705202602	Seat Support
50	705202995	Black Front Bumper
51	207661644	Hex. Flange Screw M6 X 16
52	233261414	Hex. Flange Elastic Nut M6 x 1.0
53	207582044	Hex. Flange Screw M8 X 20, Scotch Grip
54	705202455	Cap
60	705201721	Front Differential Support
61	233281414	Hex. Flange Elastic Nut M8
62	207582044	Hex. Flange Screw M8 X 20, Scotch Grip
110	705203415	Binding Block
130	705203332	Black Handle
131	207662046	Hex. Flange Screw M6 X 20
132	233261416	Elastic Flange Nut M6 X 1.0
140	705204399	Black Console Handle
142	233261416	Elastic Flange Nut M6 X 1.0
143	250000317	Torx Screw M6 X 50
144	705204606	Steel Plate
170	705203538	Differential Holder
171	207685544	Hex. Flange Screw M8 X 55
172	233281414	Hex. Flange Elastic Nut M8
200	705203330	Reinforcement Panel
230	293150096	Hemlock Rivet, 6.5 mm
280	233101464	Hex. Elastic Flange Nut , M10 X 1.5
300	250000789	Torx Truss M6X14
310	250000848	Screw Pan M10 X 30
330	705202223	Offset Washer
