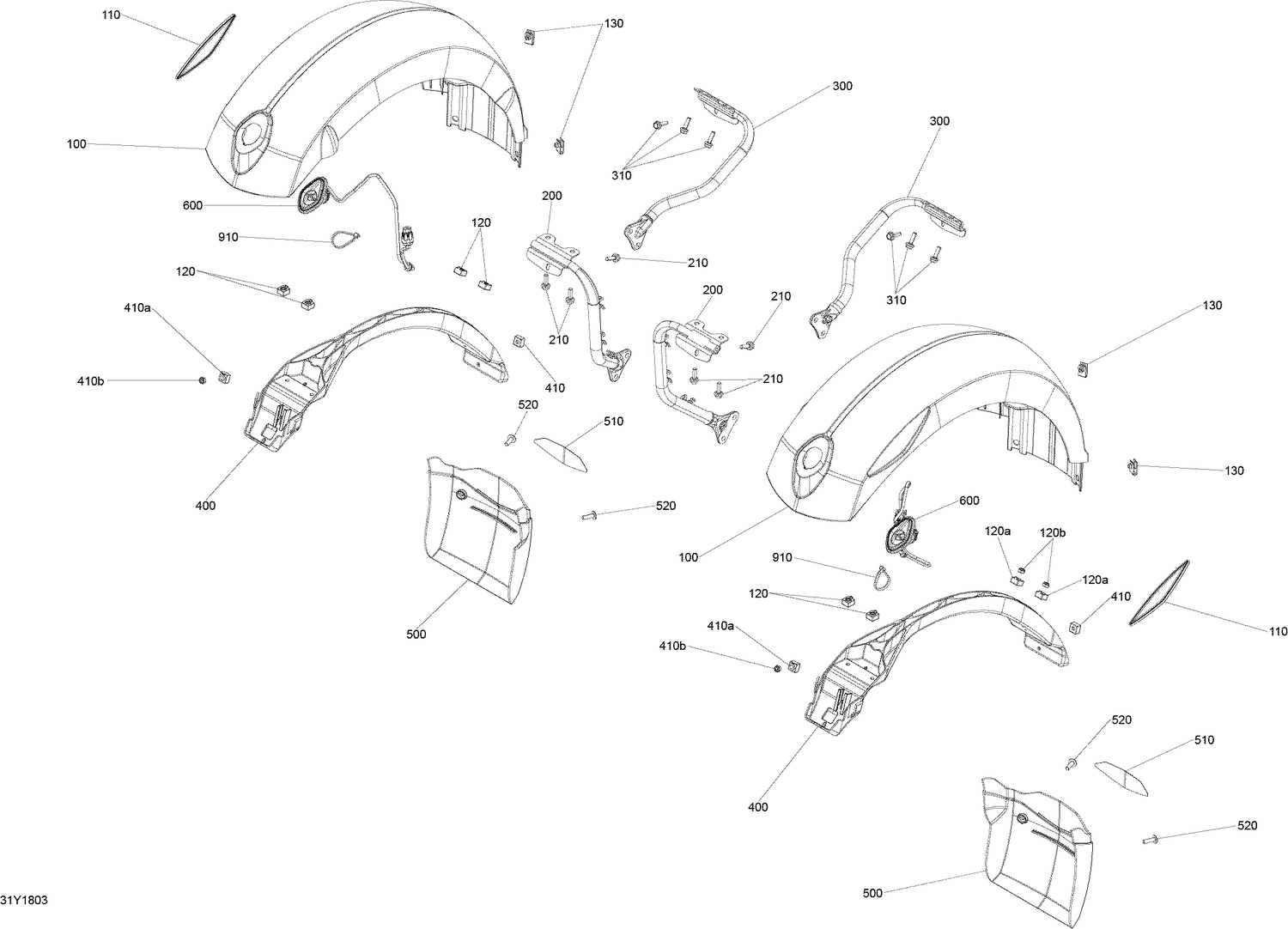

09- Body And Accessories - Fender
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 110 | 705002423 | Amber, Lateral Reflector |
| 120 | 269500725 | M6 Nut Housing Ass'y |
| 120a | 269500252 | M6 Nut Housing Ass'y |
| 120b | 232561600 | Hex. Elastic Stop Nut M6 |
| 130 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 200 | 705010102 | LH Painted Fender Front Support |
| 200 | 705010103 | RH Painted Fender Front Support |
| 210 | 207662054 | Hex. Flange Screw M6 X 20 |
| 300 | 705010100 | LH PAINTED FENDER REAR SUPPORT - Call your local BRP dealership |
| 300 | 705010101 | RH PAINTED FENDER REAR SUPPORT - Call your local BRP dealership |
| 310 | 207662054 | Hex. Flange Screw M6 X 20 |
| 400 | 705002389 | Central Front Fender Support |
| 410 | 269500725 | M6 Nut Housing Ass'y |
| 410a | 269500252 | M6 Nut Housing Ass'y |
| 410b | 232561600 | Hex. Elastic Stop Nut M6 |
| 500 | 705001767 | LH Mudguard |
| 500 | 705001768 | RH Mudguard |
| 510 | 704901160 | Reflective Stripe |
| 520 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 600 | 710003295 | Position Light |
