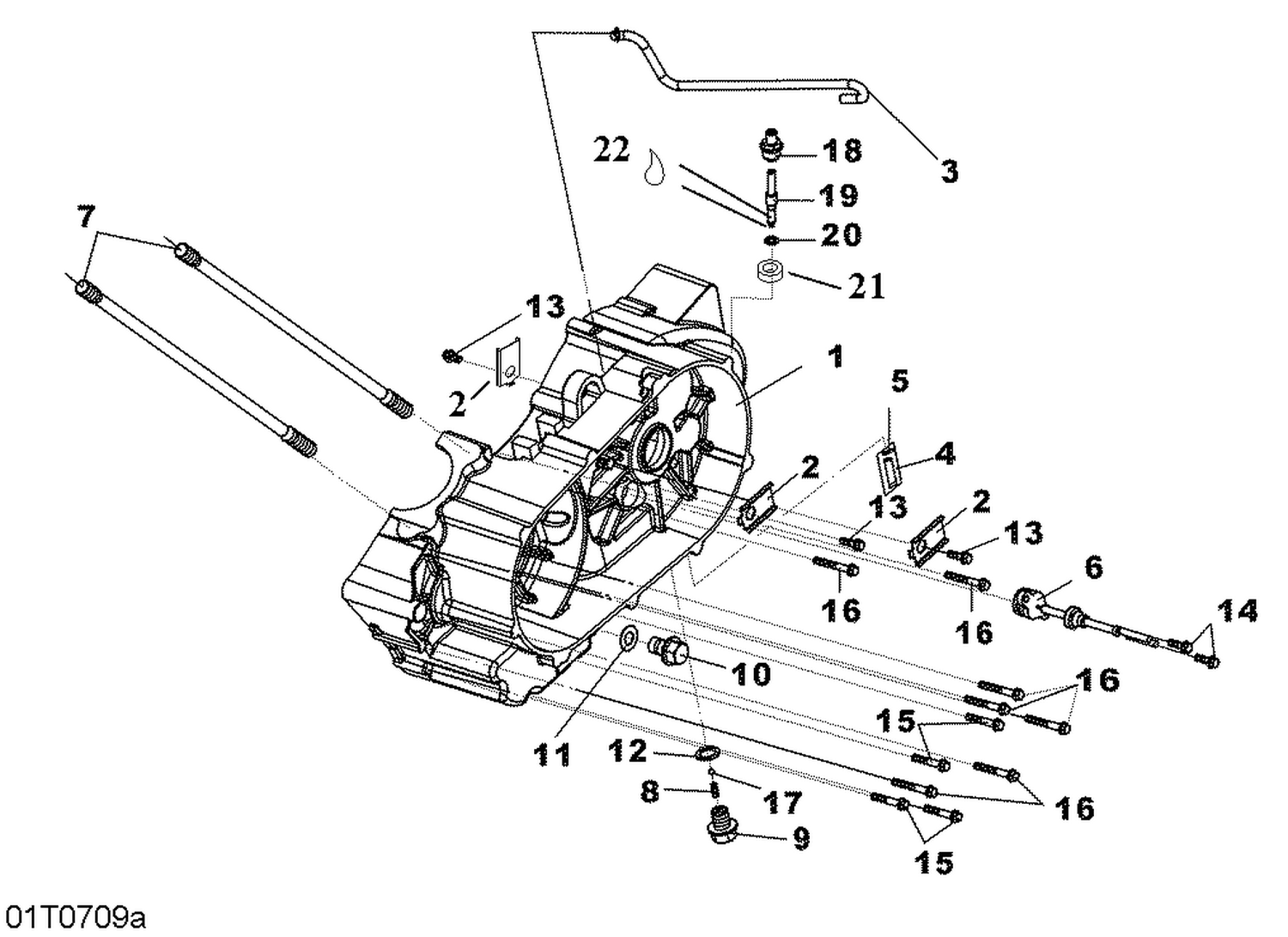

01- Left Crankcase Half
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S11200RB1000 | LH Crankcase Ass'y |
| 2 | S11205RB1000 | Setting Plate |
| 3 | S11221RB1000 | Breather Hose |
| 4 | S11230RA1000 | Drain Tube Ass'y |
| 5 | NASP/NDPR | Not Available As Spare Parts |
| 6 | S3575ARB1020 | Change Sw This part replaces S35759RB1000. |
| 7 | S90032HMA000 | Cylinder Stud |
| 8 | S90051RB1000 | Spring Fixed Catch |
| 9 | S90052RB1000 | Drain Plug Screw |
| 10 | S9280012000 | Drain Plug Screw |
| 11 | S9410912000 | Washer 12 mm |
| 12 | S9410914000 | Drain Plug Screw Washer 14 mm |
| 13 | S960010601200 | Hex. Flange Screw M6 X 12 |
| 14 | S960010601800 | Hex. Flange Screw M6 X 18 |
| 15 | S960010605000 | Hex. Flange Screw M6 X 50 |
| 16 | S960010607000 | Hex. Flange Screw M6 X 70 |
| 17 | S9621112000 | Steel Ball |
| 18 | S23434RCA000 | Gear Fixing Bolt |
| 19 | S23433RCA000 | METER GEAR - Call your local BRP dealership |
| 20 | S23435RCA000 | Thrust Washer |
| 21 | S91201RCA000 | OIL SEAL - Call your local BRP dealership |
