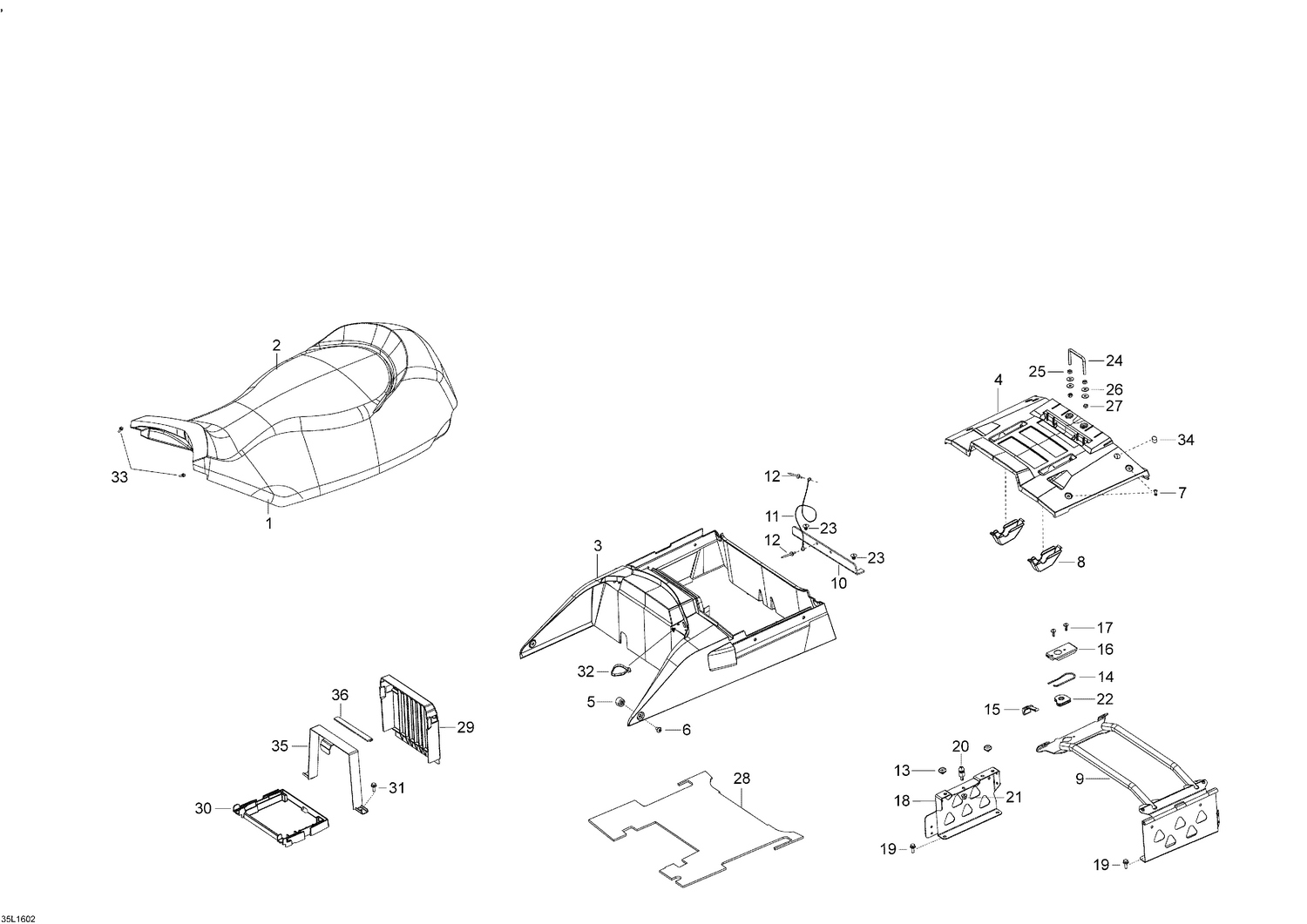

09- Seat
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510005999 | Front Seat Foam |
| 2 | 510005722 | Black Front Seat Cover |
| 3 | 510006243 | Storage Box This part replaces 510004874. |
| 4 | 510006244 | Storage Box Cover This part replaces 510005604. |
| 5 | 510005147 | Bushing |
| 6 | 250000675 | Torx Truss Screw M6 x 12 |
| 7 | 293150104 | Pop Rivet 3/16 |
| 8 | 510004999 | Cover |
| 9 | 510005714 | Fastening Tube |
| 10 | 510005156 | Cable Support Plate |
| 11 | 293750070 | Seat Retainer Cable |
| 12 | 390402200 | Pop Rivet 3/16 |
| 13 | 605452114 | Plug |
| 14 | 269700017 | Latch Spring |
| 15 | 510005072 | Puller |
| 16 | 510005698 | Lock Pin Cover |
| 17 | 250000676 | Forming Screw M5 x 16 |
| 18 | 510005845 | Locking Plate |
| 19 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 20 | 605452035 | LOCK PIN - Call your local BRP dealership |
| 21 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 22 | 510005044 | Lock Pin Guide |
| 23 | 293150104 | Pop Rivet 3/16 |
| 24 | 510004876 | FASTENER PIN - Call your local BRP dealership |
| 25 | 250000135 | Nut M6 |
| 26 | 20117 | Washer |
| 27 | 232561434 | Elastic Stop Nut M6 |
| 28 | 510005043 | Foam |
| 29 | 510005079 | Battery Cover |
| 30 | 515176804 | Battery Support |
| 31 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 32 | 605627000 | Tie Rap |
| 33 | 250000676 | Forming Screw M5 x 16 |
| 34 | 572051500 | Cap |
| 35 | 510005250 | Battery Strap (30Ah Battery) |
