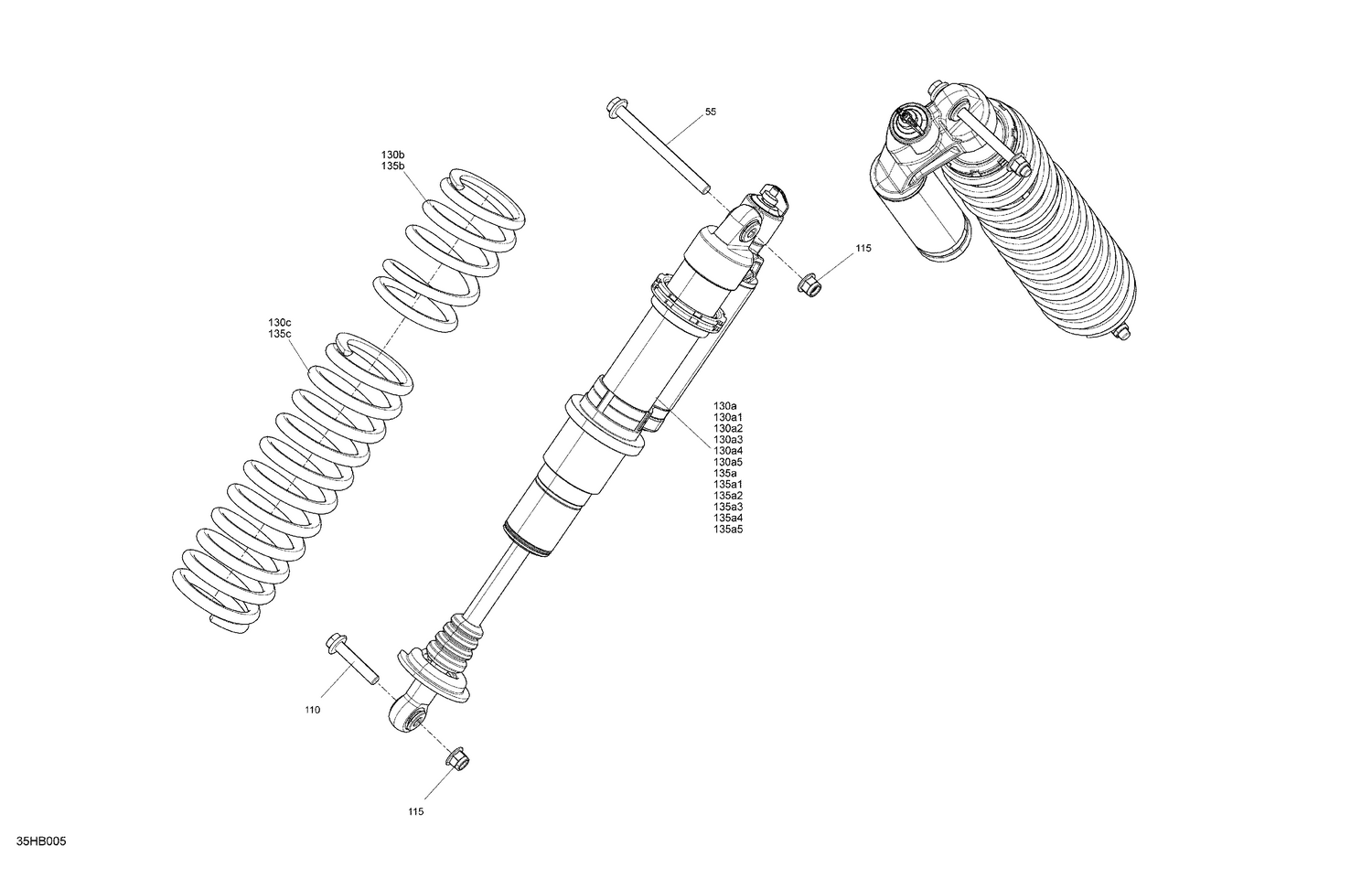

05- Suspension - Front Shocks
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 55 | 250000861 | Flange Screw M12 X 145 |
| 110 | 250000857 | Flange Screw M12 X 60 |
| 115 | 233221466 | Elastic Flange Nut M12 |
| 130a1 | 715900337 | Spherical Bearing |
| 130a2 | 715900338 | O-Ring Bushing |
| 130a3 | 715900480 | Circlip |
| 130a5 | 706004078 | Ball Joint |
| 130ad | 715900481 | Reducer |
| 130b | 706203505 | Red Front Spring |
| 130b | 706205333 | Deep Black, Compression Spring This part replaces 706202586. |
| 130c | 706202790 | Black Front Spring |
| 130c | 706202796 | Can-Am Red, Front Spring |
| 135a1 | 715900337 | Spherical Bearing |
| 135a2 | 715900338 | O-Ring Bushing |
| 135a3 | 715900480 | Circlip |
| 135a5 | 706004078 | Ball Joint |
| 135ad | 715900481 | Reducer |
| 135b | 706203505 | Red Front Spring |
| 135b | 706205333 | Deep Black, Compression Spring This part replaces 706202586. |
| 135c | 706202790 | Black Front Spring |
