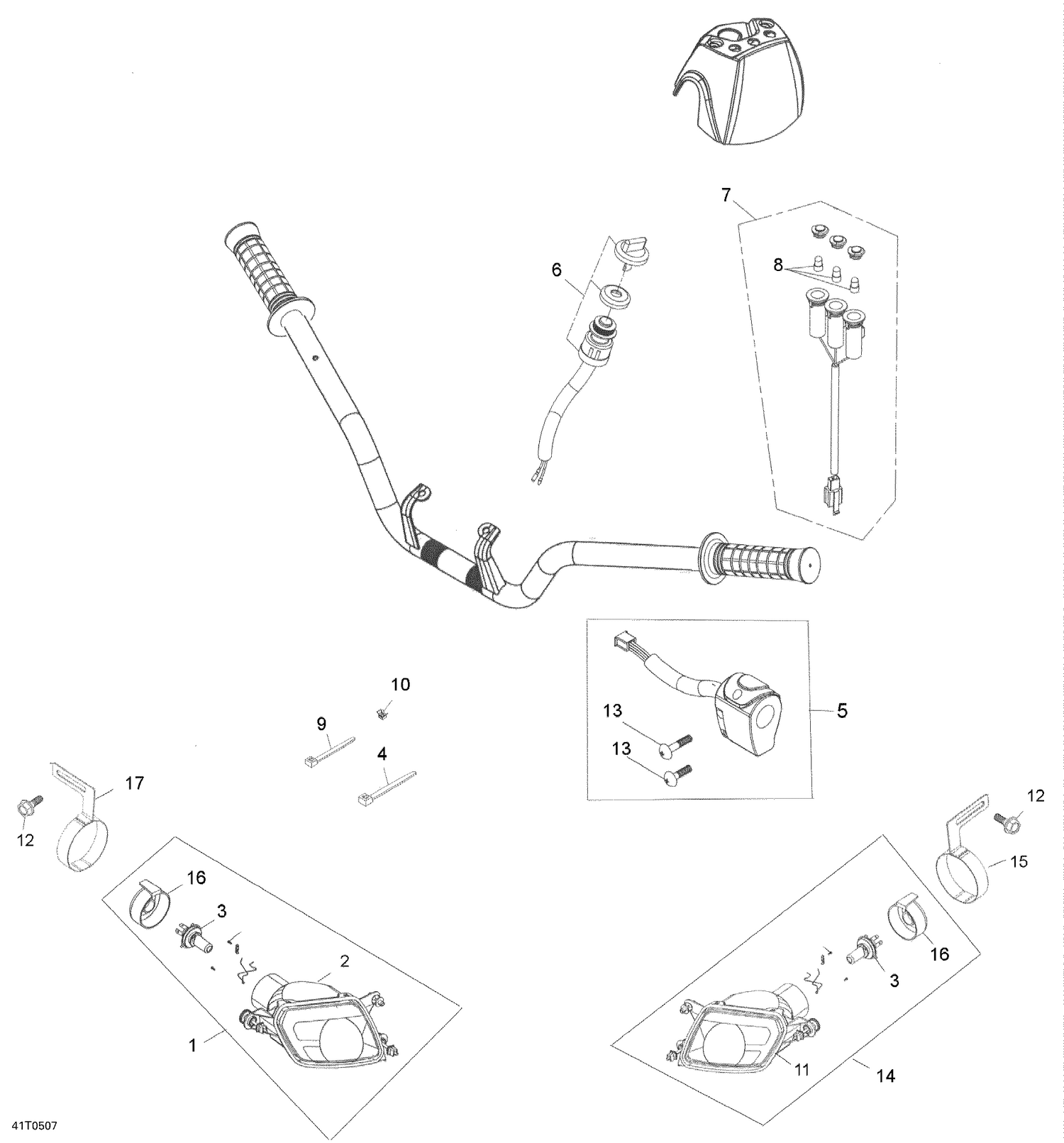

| Ref | Part Number | Description |
|---|
| 1 |
A33100179001 |
RH FRONT LIGHT ASSY - Call your local BRP dealership |
| 2 |
Not |
Available As Spare Part - Lamp Housing |
| 3 |
A34901179000 |
BULB - Call your local BRP dealership |
| 4 |
414115200 |
Tie-Rap 180 mm |
| 5 |
A35200179000 |
HANDLE - Call your local BRP dealership |
| 6 |
A35100179000 |
IGNITION SWITCH - Call your local BRP dealership |
| 6 |
Not |
Available As Spare Part - Blank Key |
| 7 |
A37250179000 |
PILOT LAMP - Call your local BRP dealership |
| 8 |
A34908179000 |
BULB - Call your local BRP dealership |
| 9 |
414115200 |
Tie-Rap 180 mm |
| 10 |
293730040 |
Mount Dart This part replaces 293730018. |
| 11 |
Not |
Available As Spare Part - Lamp Housing |
| 12 |
A901120601610 |
HEX.WASHER LADDER BOLT M6 X 16 - Call your local BRP dealership |
| 13 |
205453546 |
SOCKET SCREW M5 X 35 - Call your local BRP dealership |
| 14 |
A33200179001 |
LH front Light Ass'y |
| 15 |
A33154179000 |
LH HEAD LIGHT BRACKET - Call your local BRP dealership |
| 16 |
Not |
Available As Spare Part - Lamp Rubber |
