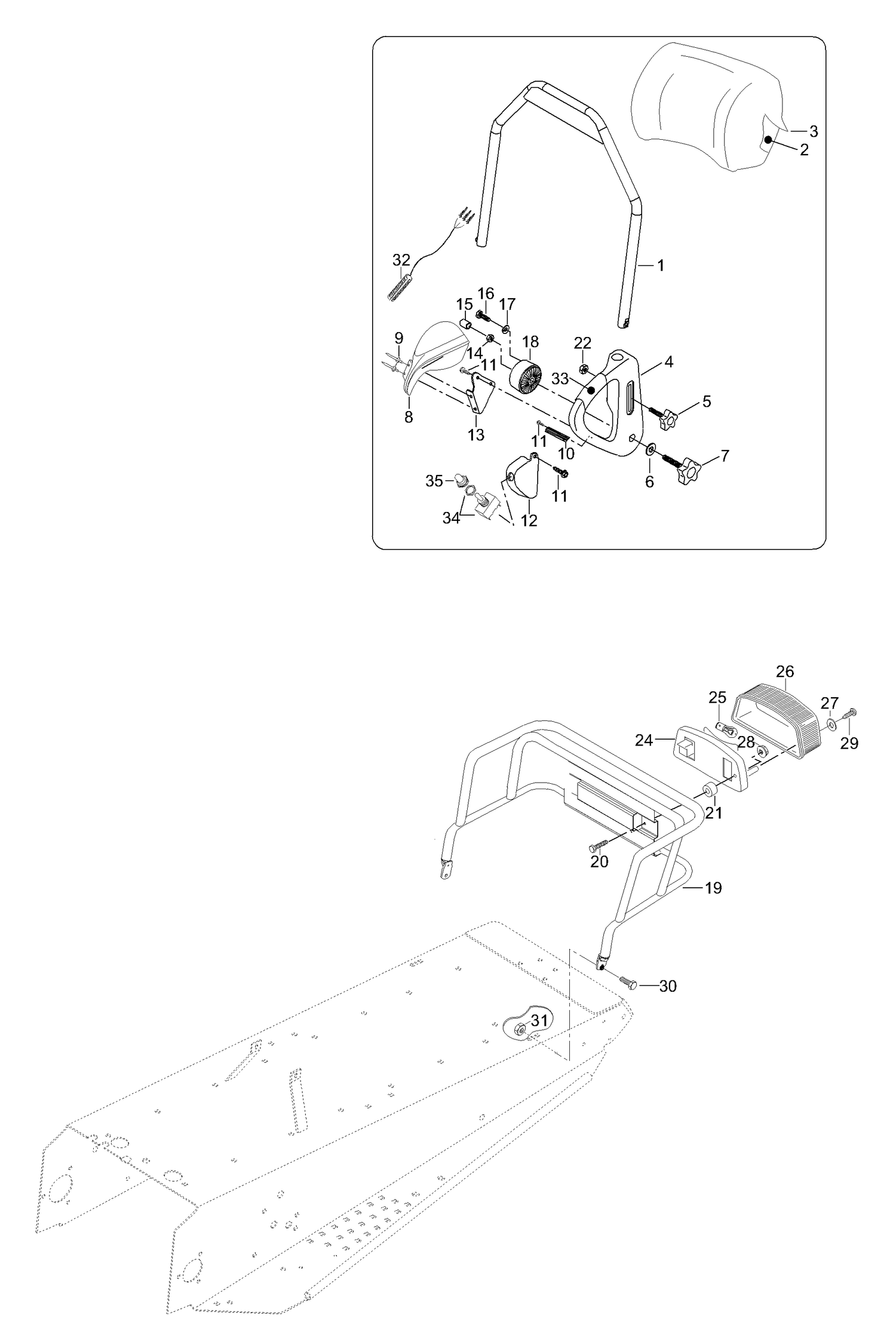

09- Body
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605249187 | Backrest |
| 2 | 605349172 | Foam |
| 3 | 605349174 | Cover |
| 4 | 510003542 | R.H. arm |
| 4 | 510003607 | L.H. arm |
| 5 | 510003533 | Male handle M8x35 |
| 6 | 20027 | Washer |
| 7 | 510003534 | Male handle M12x45 |
| 8 | 572089400 | RH Passengers hand grip shelter |
| 8 | 572089500 | LH Passengers hand grip shelter |
| 9 | 36037 | Rivet |
| 10 | 605349166 | Housing |
| 11 | 40847 | SCREW 4 - Call your local BRP dealership |
| 12 | 605348889 | Bracket |
| 13 | 605348911 | R.H. Bracket hand grip |
| 13 | 605348912 | L.H. Bracket hand grip |
| 14 | 33016 | Nut elastic M16 |
| 15 | 510003628 | Hose |
| 16 | 40037 | Screw M8x25 |
| 17 | 20072 | Lock washer |
| 18 | 510003707 | Pivot |
| 19 | 605249176 | Rack assy |
| 20 | 40065 | Locking screw M6x45 |
| 21 | 549103 | Sleeve |
| 22 | 33006 | Nut M8 |
| 24 | 414979400 | Taillamp housing |
| 25 | 520000758 | Bulb This part replaces 410504000. |
| 26 | 414513700 | Lens |
| 27 | 414516400 | Washer - Call your local BRP dealership |
| 28 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 29 | 209632540 | Phillips Tapping Screw M3.9 X 25 This part replaces 414516300. |
| 30 | 40336 | HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 31 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 32 | 605349534 | Heater |
| 33 | 605449165 | R.H. Grip |
| 33 | 605449536 | L.H. Grip |
| 34 | 410110700 | Switch |
