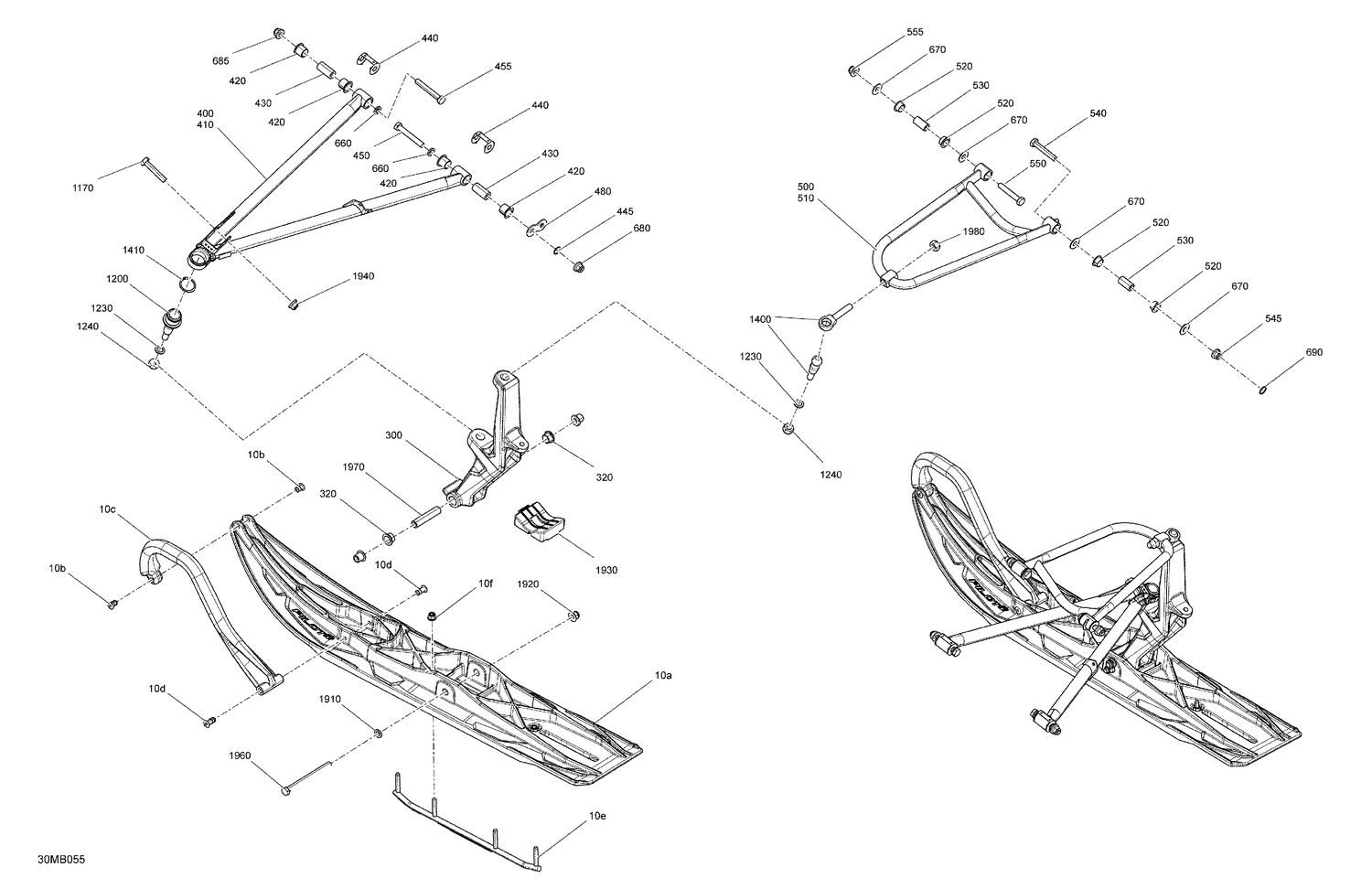

05- Suspension - Front
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 505074670 | Black, Racing Ski |
| 10b | 505071812 | Retainer 17mm long |
| 10c | 505074308 | Handle |
| 10d | 505072133 | Retainer 23mm Long |
| 10e | 860201697 | Runner Kit |
| 10f | 233281414 | Hex. Flange Elastic Nut M8 |
| 300 | 505075354 | Sunburst Yellow, Ski Leg |
| 320 | 505072690 | Leg Bushing |
| 400 | 505074655 | RH Lower Arm |
| 410 | 505074654 | LH Lower Arm |
| 420 | 503191766 | Cushion |
| 430 | 505072401 | Aluminum Bushing |
| 440 | 505072634 | Wear Plate |
| 445 | 505072448 | O-Ring |
| 450 | 250001024 | Screw Hex. M10 X 70 |
| 455 | 250001024 | Screw Hex. M10 X 70 |
| 480 | 505074424 | Rear Reinforcement |
| 500 | 505074899 | LH Upper Arm |
| 510 | 505074900 | RH Upper Arm |
| 520 | 505073018 | Bushing |
| 530 | 505072143 | Sleeve |
| 540 | 250001023 | Screw Hex. M10 X 60 |
| 545 | 250100165 | Hex. Flange Elastic Nut M10 |
| 550 | 250001023 | Screw Hex. M10 X 60 |
| 555 | 250100165 | Hex. Flange Elastic Nut M10 |
| 660 | 503189564 | Washer |
| 670 | 505072392 | Washer |
| 680 | 250100165 | Hex. Flange Elastic Nut M10 |
| 685 | 250100165 | Hex. Flange Elastic Nut M10 |
| 690 | 505072448 | O-Ring |
| 1170 | 207005554 | Hex Screw M10 X 1.5 X 55 |
| 1200 | 505074133 | Ball Joint |
| 1230 | 503192491 | Washer |
| 1240 | 232521464 | Hex Elastic Nut M12 X 1.25 |
| 1400 | 505072257 | Upper Ball Joint |
| 1410 | 293370098 | Snap Ring |
| 1910 | 503192496 | Washer |
| 1920 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 1930 | 505072594 | Ski Stopper |
| 1940 | 233201436 | Hex. Flange Elastic Nut M10 |
| 1960 | 250000703 | Hex. Screw M10 X 130 |
| 1970 | 505073691 | Ski Axle |
