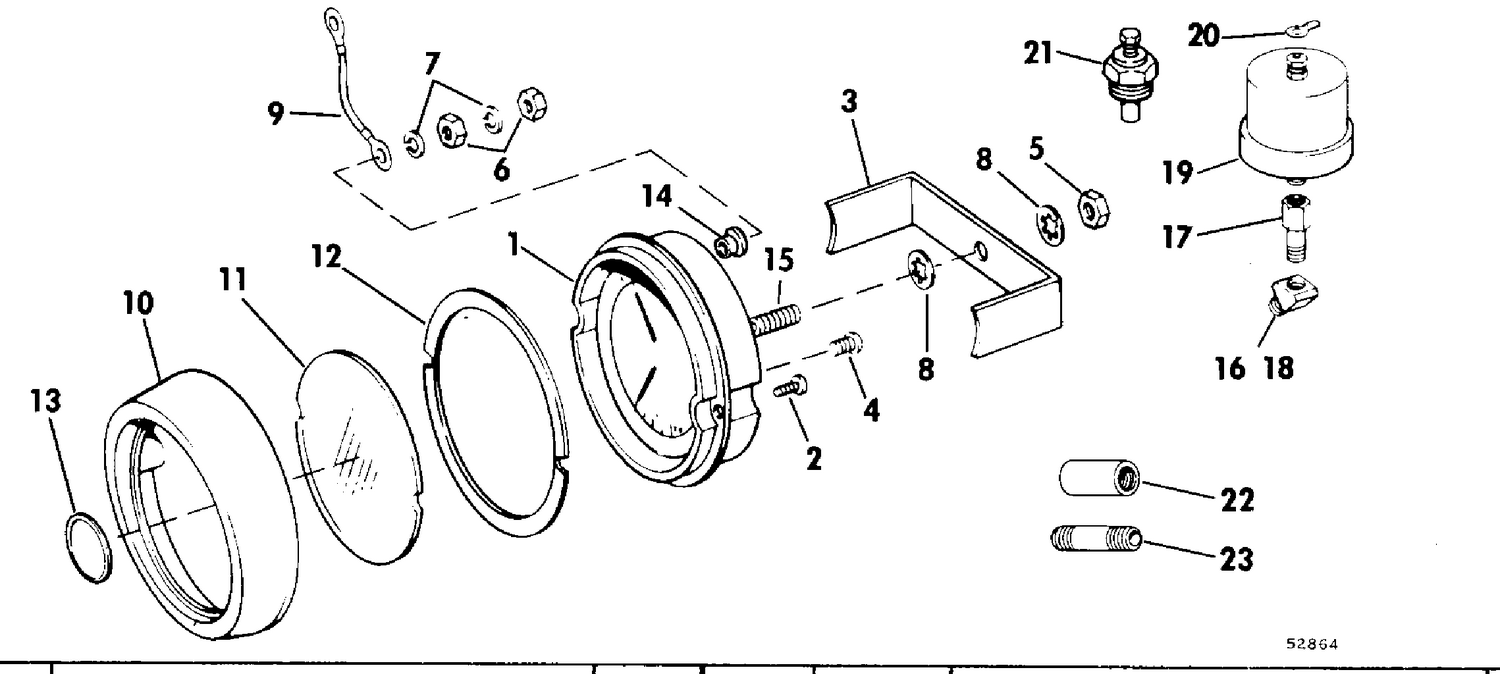

OIL PRESSURE-WATER TEMP GAUGE KIT-SUN SHIELDED
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0172083 | INSTRUMENT ASSY, Temp |
| 4 | 0313870 | SCREW |
| 7 | 0304141 | LOCKWASHER |
| 9 | 0172058 | CONNECTOR WIRE |
| 10 | 0121703 | U BOLT |
| 13 | 0121720 | BITTON,Trim |
| 14 | 0121649 | INSULATOR |
| 15 | 0122087 | STUD |
| 16 | 3855776 | ADAPTER, Oil sender This part replaces 0121688. |
| 17 | 0121687 | FITTING |
| 18 | 0121891 | ELBOW |
| 19 | 3853800 | OIL PRESSURE SENDER This part replaces 0172127. |
| 21 | 0171960 | SENDER, Water temperature |
| 22 | 0311086 | CONNECTOR, Pipe |
| 0172075 | 0172075 | OIL PRESSURE,Water temp. guage kit |
