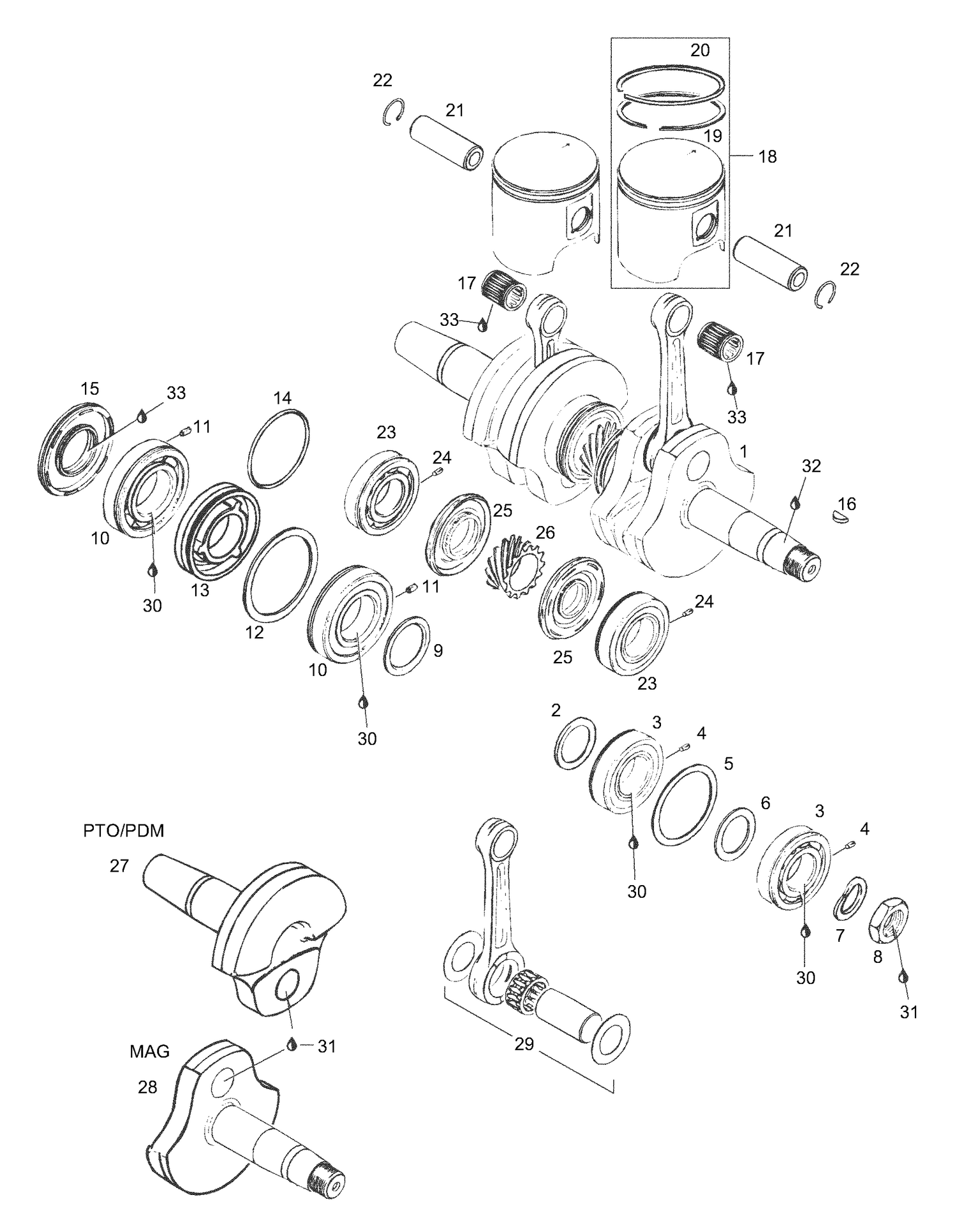

01- Crankshaft Assy
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420827445 | DISTANCE RING - Call your local BRP dealership |
| 3 | Not | Available As Spare Part - Floating piston - DOES NOT APPLY TO THIS MODEL |
| 4 | 420929972 | Dowel pin |
| 5 | 420827050 | RETAINING DISK - Call your local BRP dealership |
| 6 | 420427684 | ADJUSTMENT WASHER - Call your local BRP dealership |
| 7 | 420945759 | Lock washer |
| 8 | 420842239 | Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 9 | 420827760 | DISTANCE RING - Call your local BRP dealership |
| 11 | 420929972 | Dowel pin |
| 12 | 420927710 | Retaining disk |
| 13 | 420830294 | Labyrint sleeve |
| 14 | 420830370 | O-RING - Call your local BRP dealership |
| 15 | 420831952 | Oil Seal This part replaces 420831950. |
| 16 | 420246015 | Woodruff Key |
| 17 | 420832438 | Needle cage |
| 19 | 420915985 | Piston ring 69.50 mm |
| 19 | 420915986 | OVERSIZE RECTANGULAR RING 69.75 MM - Call your local BRP dealership |
| 20 | 420815045 | Piston ring 69.50 mm |
| 20 | 420815046 | Kolv ring 69.75 mm |
| 21 | 420916186 | GUDGEON PIN - Call your local BRP dealership |
| 22 | 420945735 | Piston circlip |
| 24 | 420929972 | Dowel pin |
| 25 | 420831990 | Oil seal |
| 26 | 420935748 | Central gear 14T |
| 27 | 420818660 | Crankshaft P.T.O.-side |
| 28 | 420818690 | Crankshaft MAG.-side |
| 29 | 420886955 | Repair kit (MAG side) |
| 29 | 420886956 | CRANKSHAFT REPAIR KIT (MAG SIDE) - Call your local BRP dealership |
| 30 | 420297434 | Loctite 15378 |
| 31 | 420897340 | Loctite 14486 |
| 32 | 293800060 | Loctite 243, 10 ml This part replaces 420899785. |
