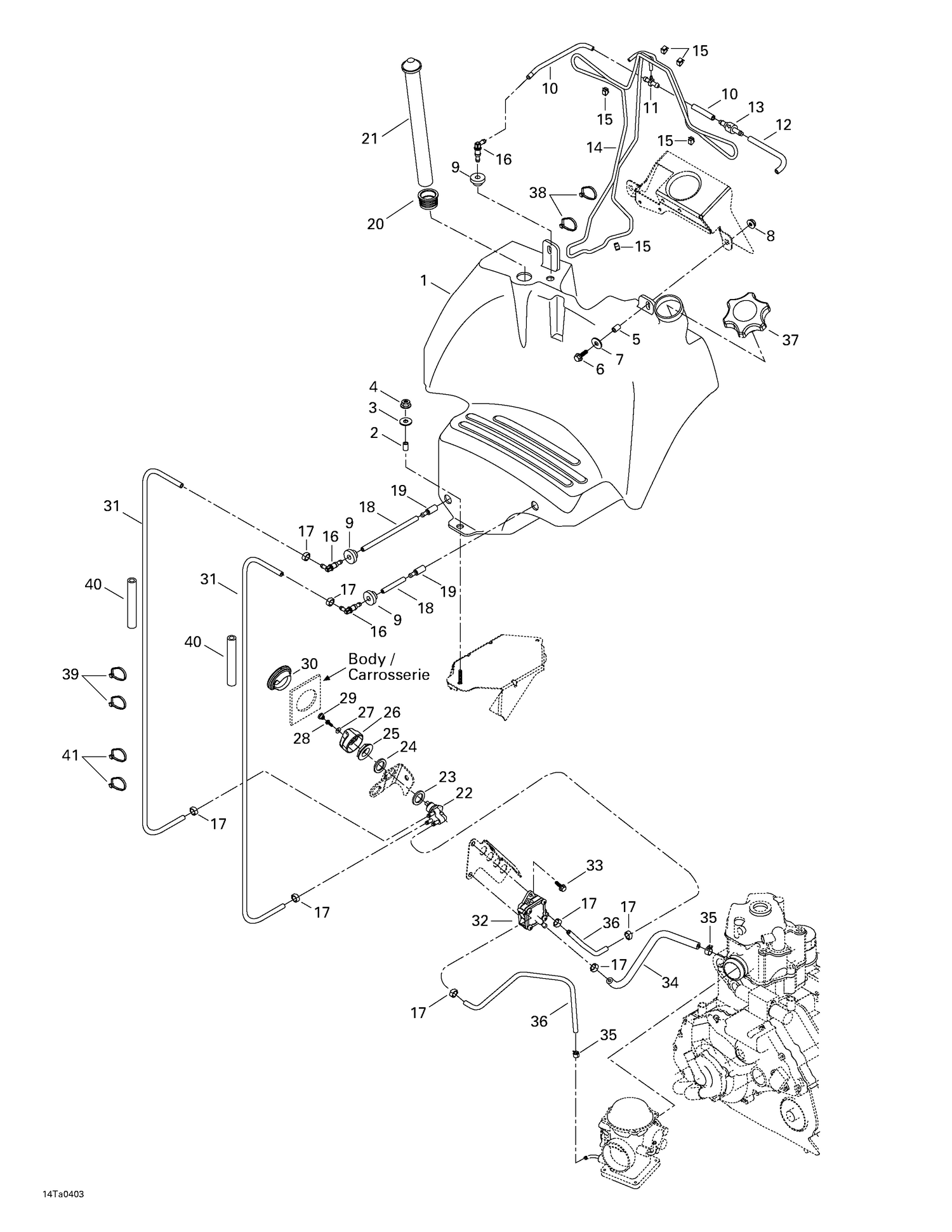

02- Fuel Tank
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 709000025 | FUEL TANK - Call your local BRP dealership |
| 2 | 293900028 | Bushing |
| 3 | 234082410 | Flat Washer 8 mm |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 |
| 5 | 293900104 | Bushing This part replaces 293900029. |
| 6 | 207662544 | Hex. Flange Screw M6 X 25 |
| 7 | 224061201 | Flat Washer |
| 8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 9 | 570045500 | Grommet |
| 10 | 219704410 | Polyurethane Hose 10000Mm Long |
| 11 | 414222500 | T-fitting |
| 12 | 709000029 | VENT HOSE - Call your local BRP dealership |
| 13 | 275500479 | CHECK VALVE - Call your local BRP dealership |
| 14 | 709000031 | VENT HOSE - Call your local BRP dealership |
| 15 | 414227300 | Clip |
| 16 | 414580600 | Elbow Male Connector |
| 17 | 293650042 | Oetiker Clamp |
| 18 | 219704410 | Polyurethane Hose 10000Mm Long |
| 19 | 414865700 | Fuel Filter |
| 20 | 293720058 | Grommet |
| 21 | 709000078 | FUEL GAUGE - Call your local BRP dealership |
| 22 | 275500098 | Fuel Valve |
| 23 | 293250004 | GASKET - Call your local BRP dealership |
| 24 | 250200015 | Washer |
| 25 | 212100009 | HEX. PLASTIC NUT - Call your local BRP dealership |
| 26 | 275500263 | FUEL VALVE KNOB, BLACK - Call your local BRP dealership |
| 27 | 234040600 | Flat Washer 4 mm |
| 28 | 208640860 | PHILLIPS SCREW M4 X 8 - Call your local BRP dealership |
| 29 | 275500241 | Black, Cap |
| 30 | 709000005 | Fuel Valve Grommet |
| 31 | 219704549 | Hose This part replaces 219704439. |
| 32 | 707200000 | FUEL PUMP - Call your local BRP dealership |
| 33 | 210261040 | Hex. Flange Screw M6 X 10 |
| 34 | 709000024 | HOSE - Call your local BRP dealership |
| 35 | 414415200 | Spring Clamp |
| 36 | 219704549 | Hose This part replaces 219704439. |
| 37 | 513033025 | Fuel Tank Cap |
| 38 | 293750002 | Tie Wrap 142 mm |
| 39 | 414115200 | Tie-Rap 180 mm |
| 40 | 219704400 | Was 409901800 Tubing (13 mm) |
