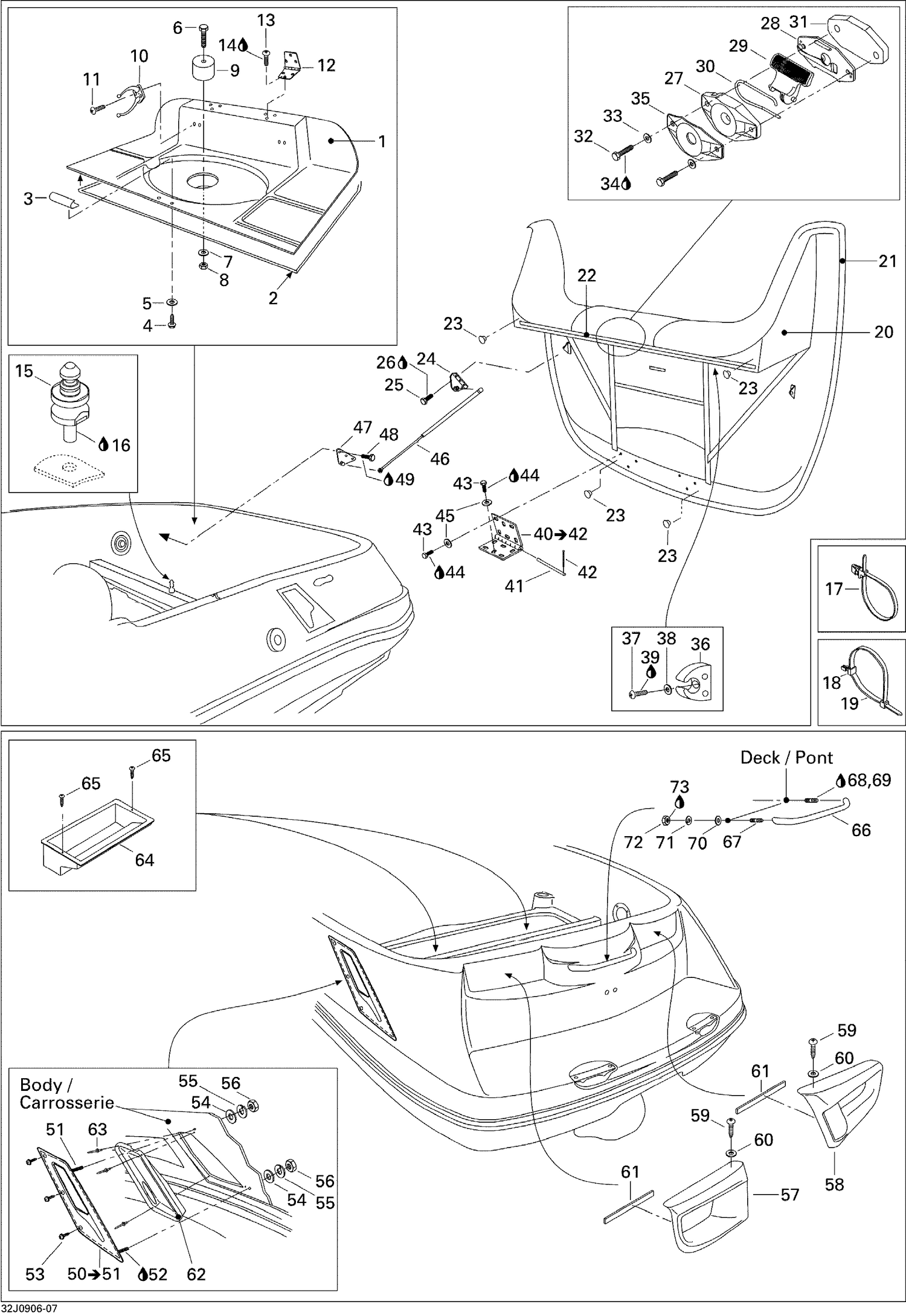

| Ref | Part Number | Description |
|---|
| 1 |
204050743 |
Access Cover |
| 2 |
219704368 |
Seal Tray 1000Mm Long |
| 3 |
291000608 |
HANDLE, WHITE - Call your local BRP dealership |
| 4 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 5 |
234042600 |
Flat Washer 4 mm, Stainless |
| 6 |
207065060 |
Hex. Screw M6 X 50 |
| 7 |
234062600 |
Flat Washer M6, Stainless |
| 8 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 9 |
204072432 |
ACCESS COVER PLUG - Call your local BRP dealership |
| 10 |
204070342 |
POLE CLIP - Call your local BRP dealership |
| 11 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 12 |
204072386 |
HINGE - Call your local BRP dealership |
| 13 |
208563060 |
OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership |
| 14 |
293800060 |
Loctite 243, 10 ml |
| 15 |
204130146 |
Latch Stud |
| 16 |
293800060 |
Loctite 243, 10 ml |
| 17 |
204130098 |
TIE RAP WITH DART - Call your local BRP dealership |
| 18 |
204130099 |
DART, BLACK - Call your local BRP dealership |
| 19 |
293750008 |
Tie Wrap 368 mm |
| 20 |
204073120 |
Engine Cover |
| 21 |
219704368 |
Seal Tray 1000Mm Long |
| 22 |
219704365 |
Was 293200017 Neoprene Seal |
| 23 |
293720017 |
GROMMET - Call your local BRP dealership |
| 24 |
204073074 |
Shock Bracket |
| 25 |
207151660 |
HEX. SCREW M5 X 16 - Call your local BRP dealership |
| 26 |
293800060 |
Loctite 243, 10 ml |
| 27 |
269700109 |
Latch Ass'y This part replaces 269700076. |
| 28 |
269700109 |
Latch Ass'y This part replaces 269000015. |
| 29 |
269700109 |
Latch Ass'y This part replaces 269700077. |
| 30 |
269700017 |
Latch Spring |
| 31 |
269700015 |
SHIM - Call your local BRP dealership |
| 32 |
207065060 |
Hex. Screw M6 X 50 |
| 33 |
234061600 |
Stainless Flat Washer M6 |
| 34 |
293800060 |
Loctite 243, 10 ml |
| 35 |
204070952 |
LATCH PROTECTOR - Call your local BRP dealership |
| 36 |
291000642 |
Pole Support |
| 37 |
208642560 |
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership |
| 38 |
234040600 |
Flat Washer 4 mm |
| 39 |
293800060 |
Loctite 243, 10 ml |
| 41 |
204070204 |
HINGE ROD - Call your local BRP dealership |
| 42 |
204070205 |
Cotter Pin M2.5 X 12 |
| 43 |
207162560 |
Hex. Screw M6 X 25 |
| 44 |
293800060 |
Loctite 243, 10 ml |
| 45 |
234061600 |
Stainless Flat Washer M6 |
| 46 |
204071925 |
Gas Shock |
| 47 |
204073065 |
SHOCK BRACKET - Call your local BRP dealership |
| 48 |
207152560 |
HEX. SCREW M5 X 25 - Call your local BRP dealership |
| 49 |
293800060 |
Loctite 243, 10 ml |
| 51 |
204000130 |
Elevator Bolt |
| 52 |
293800060 |
Loctite 243, 10 ml |
| 53 |
204100154 |
PHILLIPS SCREW 1 - Call your local BRP dealership |
| 54 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 55 |
211200025 |
Lock Washer 1/4” |
| 56 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 57 |
204073360 |
Vent Cover Ass'y, Port Side |
| 58 |
204073362 |
Vent Cover Ass'y, Starboard |
| 59 |
204100049 |
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership |
| 60 |
204100057 |
FINITION WASHER - Call your local BRP dealership |
| 61 |
219704365 |
Was 293200017 Neoprene Seal |
| 62 |
204072315 |
Inlet Vent, Port Side |
| 62 |
204072316 |
Inlet Vent, Starboard |
| 63 |
293150036 |
RIVET_POP 1/8 X ,750 - Call your local BRP dealership |
| 64 |
204073177 |
Seat Storage, Port Side |
| 64 |
204073178 |
Seat Storage, Starboard |
| 65 |
204100095 |
SLOTTED BOLT 1/4?-20 X 1? - Call your local BRP dealership |
| 66 |
204071122 |
GRAB HANDLE - Call your local BRP dealership |
| 67 |
204100050 |
STUD 3/8?-16 X 2? - Call your local BRP dealership |
| 68 |
293800005 |
Loctite 271, 10 ml |
| 69 |
219704458 |
Was 293800041 Loctite Primer 7649 |
| 70 |
234002600 |
Flat Washer 10 mm, Stainless |
| 71 |
234101601 |
Helicoidal Lock Washer M10 |
| 72 |
211100063 |
HEX. NUT 3/8-16 - Call your local BRP dealership |
