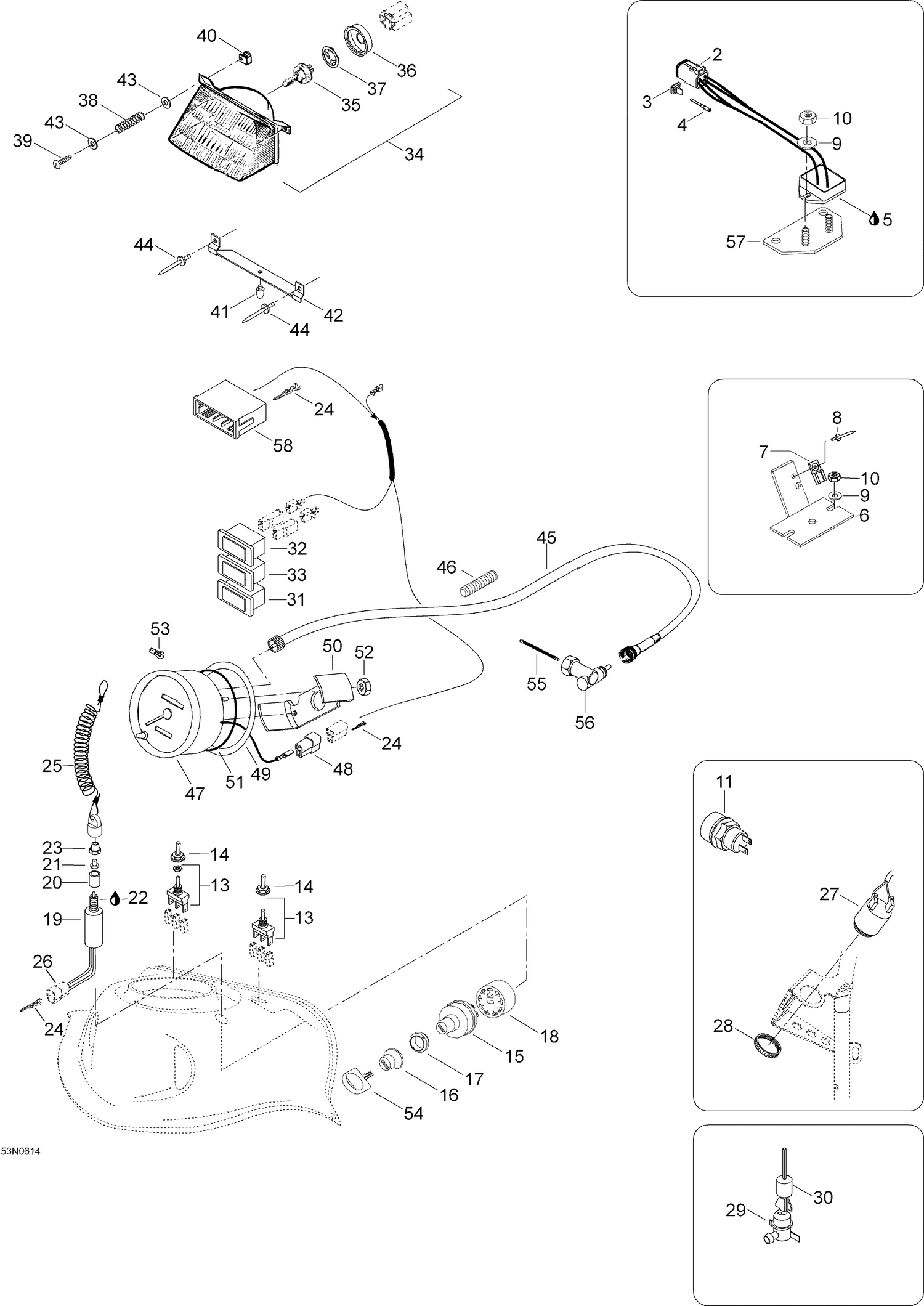

| Ref | Part Number | Description |
|---|
| 2 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 3 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 4 |
515175568 |
Connector |
| 5 |
413707500 |
Dielectric grease |
| 6 |
605350731 |
Cooling plate |
| 7 |
270000141 |
Clip |
| 8 |
36005 |
Rivet |
| 9 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 10 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 11 |
415130372 |
Push Button This part replaces 415101200. |
| 13 |
410107300 |
Switch |
| 14 |
515175281 |
Switch cover |
| 15 |
42019 |
Ignition switch |
| 16 |
570013700 |
Switch boot |
| 17 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 18 |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 19 |
515175653 |
Brake Switch This part replaces 515175571. |
| 20 |
605352540 |
SPACER - Call your local BRP dealership |
| 21 |
570151100 |
Plunger Cap |
| 22 |
293550004 |
Dielectric grease, 150g |
| 23 |
515145900 |
Switch Nut |
| 24 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 25 |
515178283 |
Cap Ass'y This part replaces 515151500. |
| 26 |
42268 |
Connector housing |
| 27 |
515176035 |
HORN - Call your local BRP dealership |
| 28 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 29 |
414681800 |
LEVEL SWITCH - Call your local BRP dealership |
| 30 |
414681900 |
Float |
| 31 |
410113400 |
PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership |
| 32 |
410109600 |
Pilot Lamp |
| 33 |
410109500 |
Pilot Lamp |
| 35 |
515176274 |
Halogen Bulb, 60/55 W, 12 V This part replaces 410503700. |
| 36 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 37 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 38 |
517168600 |
Spring |
| 39 |
243244040 |
PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership |
| 40 |
572078600 |
Plast mutter |
| 41 |
410608200 |
RUBBER STOPPER - Call your local BRP dealership |
| 42 |
539864 |
Stöd |
| 43 |
20002 |
Bricka A5,3 |
| 44 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 45 |
45006 |
Cable for speedometer - Call your local BRP dealership |
| 46 |
390004 |
Tubing |
| 47 |
605152889 |
Speedometer |
| 48 |
42268 |
Female connector housing |
| 49 |
517258500 |
Washer |
| 50 |
414806500 |
Holder |
| 51 |
414807100 |
O-ring |
| 52 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 53 |
410504200 |
INSTRUMENTATION BULB - Call your local BRP dealership |
| 54 |
415129350 |
BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 55 |
45075 |
Insert |
| 56 |
35021 |
Gear unit |
| 57 |
605351360 |
REGULATOR BRACKET - Call your local BRP dealership |
