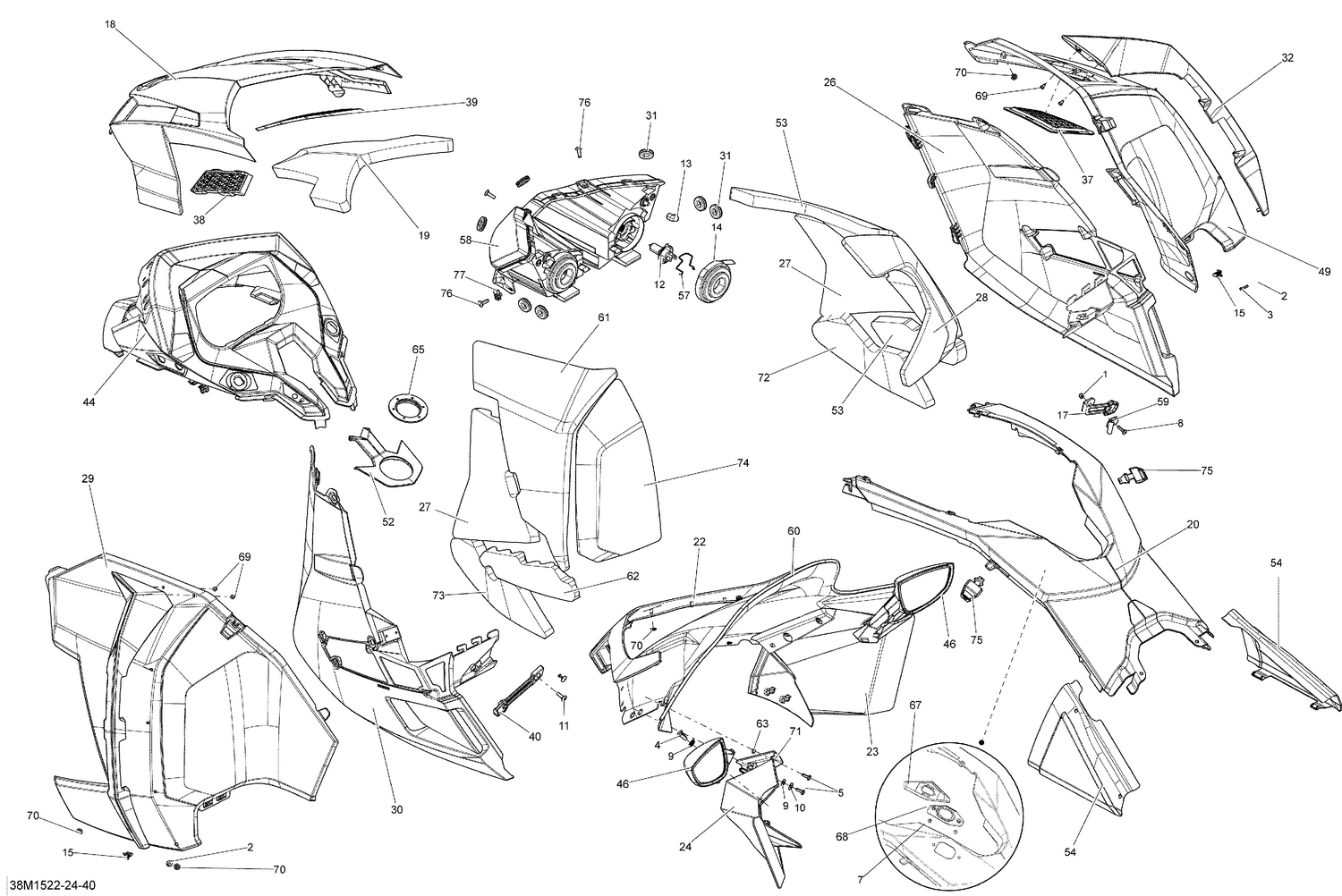

| Ref | Part Number | Description |
|---|
| 1 |
233251434 |
Flange Elastic Nut M5 |
| 2 |
234042600 |
Flat Washer 4 mm, Stainless |
| 3 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 4 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 5 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 7 |
XXX |
Not Available As Spare Parts |
| 8 |
250000792 |
Torx Screw M5 X 20 This part replaces 250000465. |
| 9 |
250200024 |
Rubber Washer 5 mm |
| 10 |
250200025 |
Washer M5 |
| 11 |
250000705 |
Torx Truss Screw M6 X 20 |
| 12 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 13 |
515176498 |
Cap |
| 14 |
219800280 |
Rubber Cap Protector This part replaces 515176499. |
| 15 |
517302785 |
Edge Clip |
| 17 |
517303612 |
RH Panel Latch |
| 18 |
517303739 |
Black Hood |
| 19 |
517304893 |
Hood Foam |
| 22 |
860200230 |
Windshield Support Kit |
| 23 |
517303745 |
RH Console Air Deflector |
| 24 |
517303746 |
LH CONSOLE AIR DEFLECTOR - Call your local BRP dealership |
| 26 |
517304373 |
PANEL_BODY LWR R B-160 - Call your local BRP dealership |
| 27 |
517304894 |
CENTRAL FOAM PANEL RH - Call your local BRP dealership |
| 27 |
517304899 |
LH CENTRAL PANEL FOAM - Call your local BRP dealership |
| 28 |
517304895 |
REAR PANEL FOAM RH - Call your local BRP dealership |
| 29 |
517303753 |
Black LH Pannel |
| 30 |
517304362 |
PANEL_BODY LWR L B-160 - Call your local BRP dealership |
| 31 |
517303756 |
Grommet |
| 32 |
517304196 |
BLACK LH SIDE WIND DEFLECTOR - Call your local BRP dealership |
| 32 |
517304197 |
BLACK RH SIDE WIND DEFLECTOR - Call your local BRP dealership |
| 37 |
517303801 |
PANEL GRILL - Call your local BRP dealership |
| 38 |
517303804 |
LH Hood Grille |
| 39 |
517303805 |
RH Hood Grille |
| 40 |
517303808 |
LH Panel Latch |
| 44 |
517303971 |
INDICATOR SUPPORT - Call your local BRP dealership |
| 46 |
517305100 |
RH Mirror Ass'y |
| 46 |
517305101 |
LH Mirror Ass'y |
| 49 |
517304006 |
Black RH Pannel |
| 52 |
517304027 |
Deep Black, Cap Console |
| 53 |
517304908 |
RH UPPER PANEL FOAM - Call your local BRP dealership |
| 54 |
517304123 |
DEEP BLACK LH FUEL TANK MOULDING - Call your local BRP dealership |
| 54 |
517304124 |
DEEP BLACK RH FUEL TANK MOULDING - Call your local BRP dealership |
| 57 |
517304194 |
RH Headlamp Ass'y |
| 58 |
517304195 |
LH Headlamp Ass'y |
| 59 |
517304221 |
Latch Support |
| 60 |
517304268 |
EXTRA HIGHT WINDSHIELD (620) - Call your local BRP dealership |
| 61 |
517304902 |
LH UPPER PANEL FOAM - Call your local BRP dealership |
| 62 |
517304897 |
CENTRAL FOAM PANEL LH - Call your local BRP dealership |
| 63 |
517304281 |
Rubber Washer 5 mm |
| 65 |
517304518 |
Console Nut |
| 67 |
XXX |
Not Available As Spare Parts |
| 68 |
XXX |
Not Available As Spare Parts |
| 69 |
732601210 |
HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership |
| 70 |
732610072 |
Push Nut |
| 71 |
517225900 |
Flat Washer |
| 72 |
517304905 |
RH LOWER PANEL FOAM - Call your local BRP dealership |
| 73 |
517304901 |
LH LOWER PANEL FOAM - Call your local BRP dealership |
| 74 |
517304904 |
LH REAR PANEL FOAM - Call your local BRP dealership |
| 75 |
517305000 |
Panel Latch |
| 76 |
250000705 |
Torx Truss Screw M6 X 20 |
