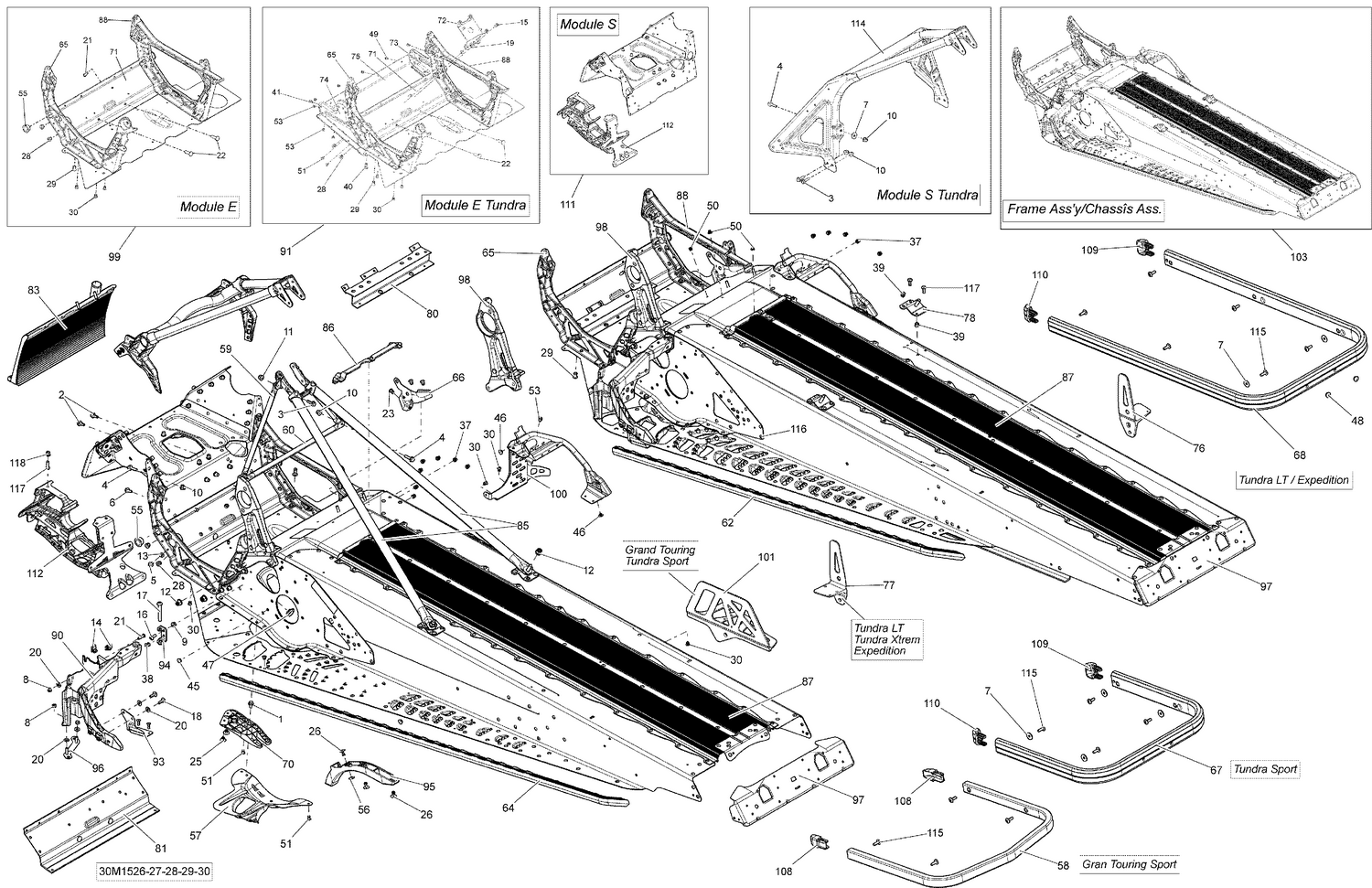

| Ref | Part Number | Description |
|---|
| 1 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 2 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 3 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 4 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 5 |
210261040 |
Hex. Flange Screw M6 X 10 |
| 6 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 7 |
224061201 |
Flat Washer |
| 8 |
232561414 |
Elastic Stop Nut M6 |
| 9 |
233061414 |
Hex. Flange Nut M6 |
| 10 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 11 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 12 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 13 |
234061410 |
Flat Washer 6 mm |
| 14 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 15 |
250000512 |
Socket Screw Head 1/4-20 X 5/8'' |
| 16 |
250000534 |
Tork Screw M6 X 16 |
| 17 |
250000535 |
Torx Screw M8 X 55 |
| 18 |
250000536 |
Tork Screw M6 X 18 |
| 19 |
250100140 |
Elastic Hex. Flange Nut 1/4-20 |
| 20 |
250200039 |
Flat Washer |
| 21 |
250300027 |
Clinch Stud M6 X 20 |
| 22 |
250300038 |
Clinch Stud |
| 23 |
293150096 |
Hemlock Rivet, 6.5 mm |
| 25 |
293150104 |
Pop Rivet 3/16" |
| 26 |
XXX |
Not Available As Spare Parts |
| 28 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 29 |
293150120 |
Hemlock Rivet 6.5 mm |
| 30 |
293150144 |
Stavex Rivet |
| 37 |
293150146 |
Henrob Rivet |
| 38 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 39 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 40 |
293150182 |
Monobolt Rivet 6.4 |
| 41 |
293150191 |
Monobolt Rivet, 4.8 mm |
| 45 |
293730047 |
Black, Dart 8 mm |
| 46 |
293730042 |
Full Moon Dart 5 mm |
| 47 |
XXX |
Not Available As Spare Parts |
| 48 |
293730060 |
Black, Dart 10 mm |
| 49 |
390402200 |
Pop Rivet 3/16" |
| 50 |
390402400 |
Pop Rivet 3/16" |
| 51 |
390909100 |
Avex Rivet |
| 53 |
390909200 |
Avex Rivet |
| 55 |
XXX |
Not Available As Spare Parts |
| 56 |
XXX |
Not Available As Spare Parts |
| 57 |
518324874 |
RH Reinforcement |
| 57 |
518324875 |
LH Reinforcement |
| 58 |
XXX |
Not Available As Spare Parts |
| 59 |
518325114 |
Upper Lateral Column Support |
| 60 |
518325115 |
Center Column Support |
| 62 |
518325159 |
RH ROLLER - Call your local BRP dealership |
| 62 |
518325160 |
LH Roller |
| 64 |
XXX |
Not Available As Spare Parts |
| 65 |
518326796 |
LH Member |
| 66 |
XXX |
Not Available As Spare Parts |
| 67 |
XXX |
Not Available As Spare Parts |
| 68 |
518326611 |
Black Rear Bumper, 154" |
| 70 |
518325782 |
RH Deflector, Black Polypropylene |
| 70 |
518325783 |
LH Deflector, Black Polypropylene |
| 72 |
518325943 |
MAG Engine Support |
| 73 |
518325949 |
RH Front Member |
| 74 |
518325950 |
LH Front Member |
| 75 |
518325951 |
Front Bottom Plate |
| 76 |
518325955 |
RH SLIDE BRACKET - Call your local BRP dealership |
| 77 |
518325956 |
LH Slide Bracket |
| 78 |
518325973 |
RH Rear Base |
| 78 |
518325974 |
LH Rear Base |
| 80 |
XXX |
Not Available As Spare Parts |
| 81 |
518326198 |
Front Member |
| 83 |
518326485 |
Front Radiator |
| 85 |
518326559 |
Rear Member |
| 86 |
518326656 |
Seal |
| 87 |
518326692 |
Rear Radiator Ass'y, 154" |
| 88 |
518326795 |
RH Member |
| 90 |
518326820 |
LH Stirup |
| 91 |
518326927 |
Module E TUNDRA Xtreme |
| 93 |
518326960 |
Support |
| 94 |
518326961 |
U-Attach |
| 95 |
XXX |
Not Available As Spare Parts |
| 96 |
518326986 |
Attach |
| 97 |
518327105 |
Rear Cap |
| 98 |
518327460 |
Driven Pulley Support |
| 99 |
XXX |
Not Available As Spare Parts |
| 100 |
518328938 |
RH Stirup This part replaces 518327863. |
| 101 |
XXX |
Not Available As Spare Parts |
| 103 |
415130261 |
FRAME TUNDRA XTREME NOIR - Call your local BRP dealership This part replaces 415129873. |
| 108 |
XXX |
Not Available As Spare Parts |
| 109 |
520000965 |
Black RH Cap |
| 110 |
520000964 |
Black LH Cap |
| 111 |
XXX |
Not Available As Spare Parts |
| 112 |
XXX |
Not Available As Spare Parts |
| 114 |
518328306 |
Front Member, S Module |
| 115 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. |
| 116 |
293150144 |
Stavex Rivet |
| 117 |
207662044 |
Hex. Flange Screw M6 X 20 |
