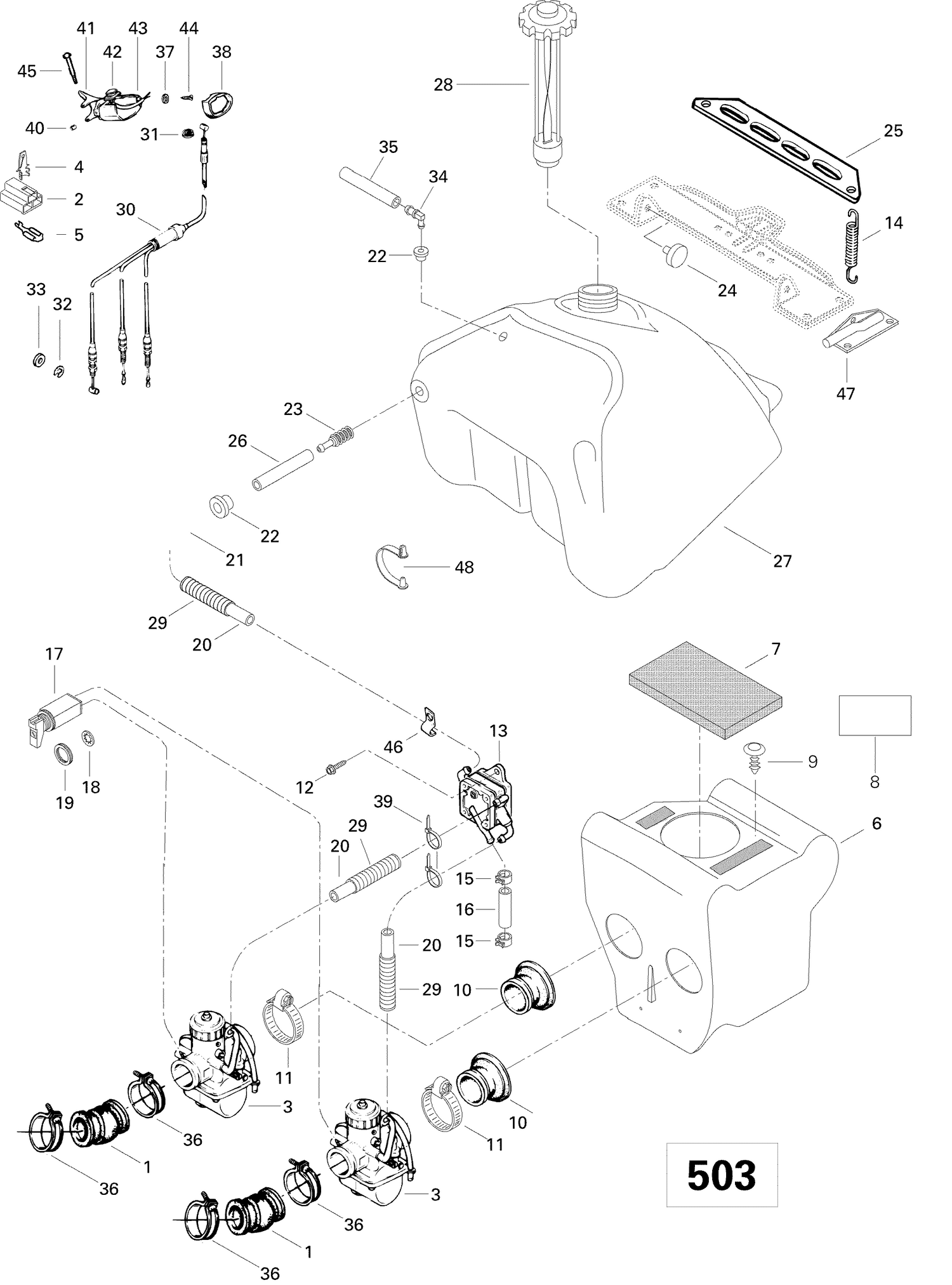

02- Fuel System 500
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 570045000 | Rubber Flange |
| 2 | 409008500 | Female Terminal Housing (3 circuits) |
| 3 | 403123600 | Carburetor VM 34 465 (PTO) |
| 3 | 403123700 | Carburetor VM 34 466 (MAG) |
| 4 | 409210000 | MALE TERMINAL - Call your local BRP dealership This part replaces 561503400. |
| 5 | 561503200 | Female Terminal PACKARD |
| 7 | 414922700 | Air Filter |
| 8 | 414161500 | Warning Decal |
| 9 | 414939500 | Dart |
| 10 | 570043600 | Adaptor 34 mm |
| 11 | 408801600 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 12 | 210262050 | Hexagonal Head Screw This part replaces 732600005. |
| 13 | 403801000 | Fuel Pump |
| 14 | 517182100 | SPRING - Call your local BRP dealership |
| 15 | 414415200 | Spring Clamp |
| 16 | 219704549 | Hose This part replaces 219704439. |
| 17 | 414967000 | CHOKE CABLE - Call your local BRP dealership |
| 18 | 394103300 | Lock Washer, Interior Teeth |
| 19 | 512059364 | NUT-PLASTIC - Call your local BRP dealership This part replaces 414977200. |
| 20 | 219704410 | Polyurethane Hose 10000Mm Long |
| 21 | 414580600 | Elbow Male Connector |
| 22 | 709200285 | Grommet This part replaces 570135100. |
| 23 | 414865700 | Fuel Filter |
| 24 | 707800347 | Grommet This part replaces 570273900. |
| 25 | 517249200 | Fuel Tank Bracket |
| 26 | Not | Available As Spare Part - Fuel Line 4.76 mm Diameter |
| 27 | 571008700 | Fuel Tank |
| 28 | 572161200 | Fuel Tank Cap |
| 29 | 219704400 | Was 409901800 Tubing (13 mm) |
| 30 | 414883100 | THROTTLE CABLE AND HOUSING - Call your local BRP dealership |
| 31 | 414274500 | Circlip |
| 32 | 414753500 | Circlip |
| 33 | 234081100 | Flat Washer 8 mm, Nylon This part replaces 414753300. |
| 34 | 414814100 | Male Connector |
| 35 | 414296900 | Fuel Line 3.18 mm |
| 36 | 408801900 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 37 | 391300700 | WASHER-FLAT - Call your local BRP dealership |
| 38 | 572044600 | THROTTLE COVER - Call your local BRP dealership |
| 39 | 414115200 | Tie-Rap 180 mm |
| 40 | 414440800 | Socket Set Screw M8 X 10 |
| 41 | 572056500 | Heat Throttle Handle(34 mm) |
| 42 | 515177362 | Emergency Stop Switch This part replaces 414612700. |
| 43 | 572028600 | Throttle Handle Housing |
| 44 | 414473200 | Screw |
| 45 | 732601143 | Flange Screw |
| 46 | 414351600 | CLIP - Call your local BRP dealership |
| 47 | 414266900 | RH Tank Bracket |
| 47 | 414267000 | LH Tank Bracket |
