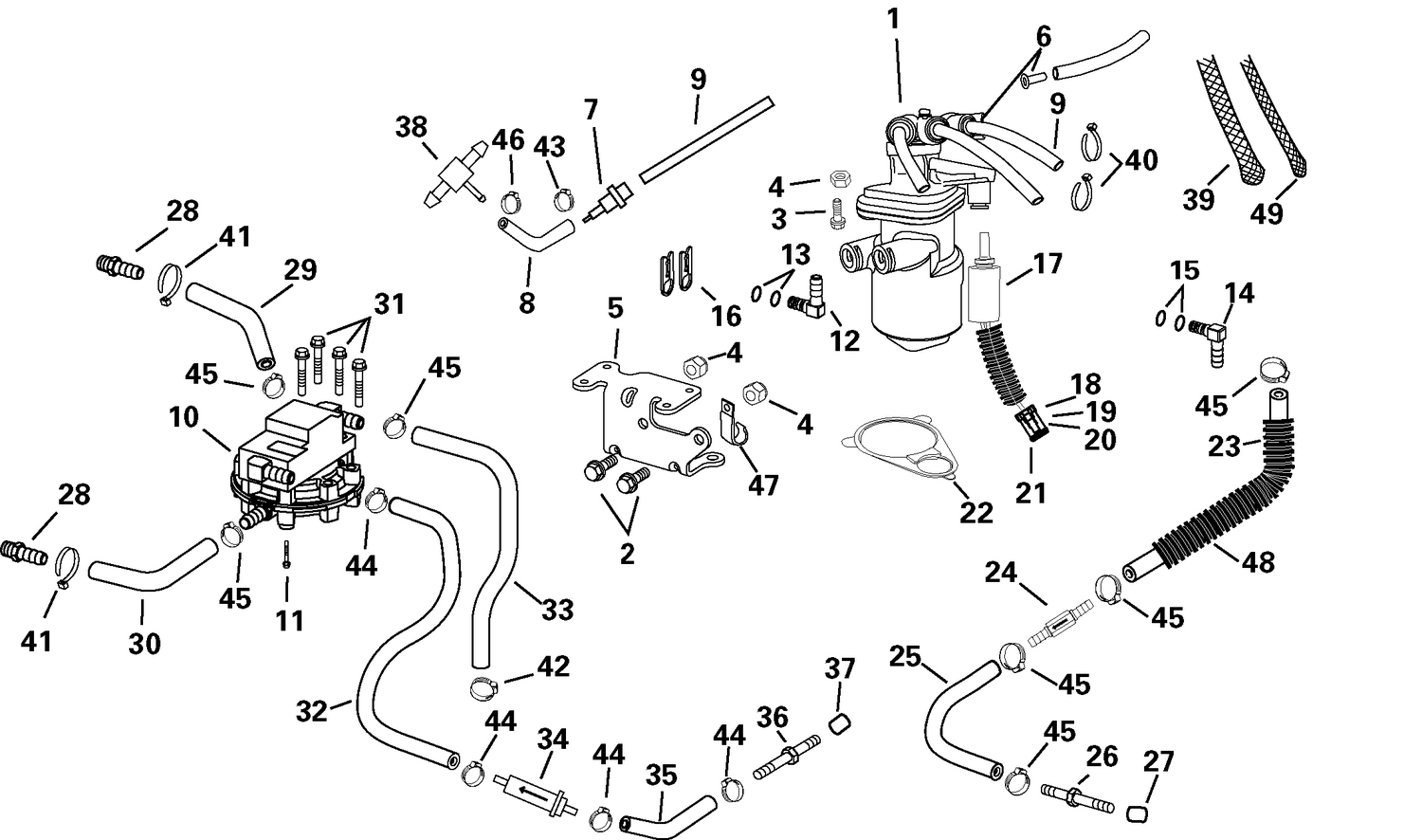

| Ref | Part Number | Description |
|---|
| 1 |
5006143 |
INJECTOR-MANIFOLD Assy, Oil This part replaces 5000836. |
| 10 |
5001221 |
OIL LIFT PUMP Assy |
| 12 |
5000911 |
FITTING, Oil injector inlet |
| 14 |
5000912 |
RACCORD, sortie injecteur d'huile |
| 16 |
0345468 |
DISPOSITIF DE RETENUE, raccord |
| 17 |
5001234 |
PRESSURE SWITCH |
| 22 |
0346889 |
RETAINER, Switch |
| 23 |
0333407 |
FLEXIBLE, filtre à carburant vers pompe à carburant |
| 24 |
5001054 |
PRESSURE REGULATOR |
| 25 |
0349057 |
HOSE, Oil return |
| 26 |
0348841 |
CONNECTOR, Fuel hose |
| 29 |
0344801 |
HOSE, Oil pump pulse, Port |
| 30 |
0333407 |
FLEXIBLE, filtre à carburant vers pompe à carburant |
| 32 |
0350067 |
HOSE, Oil inlet filter to oil lift pump |
| 33 |
0350023 |
HOSE, Pump to injector |
| 34 |
5011891 |
Kit This part replaces 5004958. |
| 35 |
0350068 |
HOSE, Inlet to filter |
| 36 |
0358042 |
FITTING, Fuel hose This part replaces 0349008. |
| 37 |
0328074 |
CACHE, cosse prise |
| 38 |
0345701 |
FITTING, Fuel to Oil tee |
| 39 |
0336269 |
BRAIDED SLEEVE |
| 41 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 46 |
0348838 |
CLAMP, 10.5mm |
| 47 |
0330151 |
CLAMP, Harness to oil tank boss |
