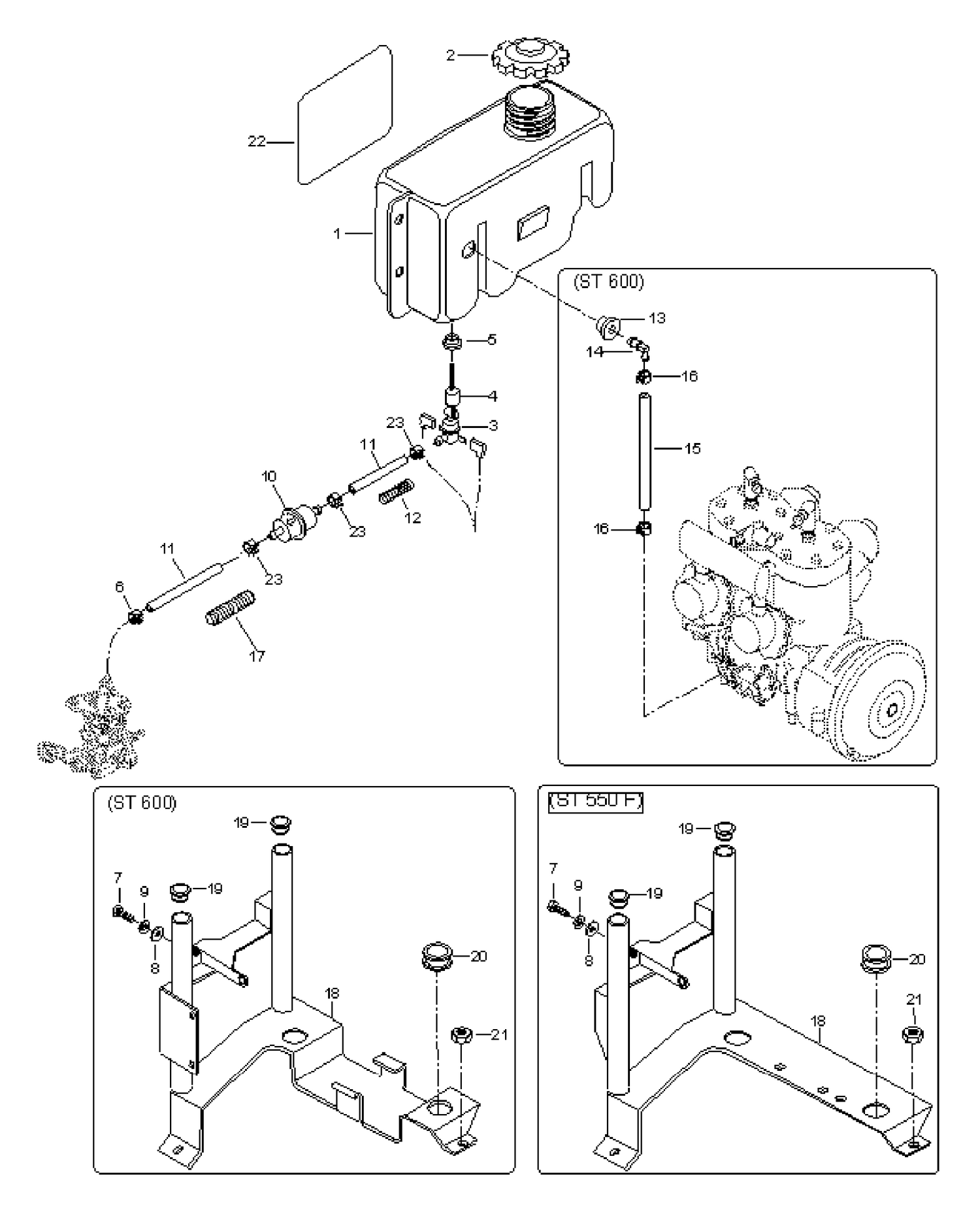

| Ref | Part Number | Description |
|---|
| 1 |
5146370 |
TANK-OIL - Call your local BRP dealership |
| 2 |
519000044 |
CAP - Call your local BRP dealership |
| 3 |
414681800 |
LEVEL SWITCH - Call your local BRP dealership |
| 4 |
414681900 |
Float |
| 5 |
570023000 |
Grommet |
| 6 |
414420700 |
Universal Spring Clamp |
| 7 |
40322 |
SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 8 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 9 |
20052 |
Lock washer |
| 10 |
414536500 |
Oil filter |
| 11 |
39046 |
Oil line 8/11 |
| 12 |
250001 |
Spring |
| 13 |
709200285 |
Grommet This part replaces 570135100. |
| 14 |
414580700 |
Male Connector |
| 15 |
39004 |
Hose 5/8 |
| 16 |
414554800 |
Clamp |
| 17 |
28015 |
Tube |
| 18 |
5246593 |
OIL TANK SUPPORT WELD - Call your local BRP dealership |
| 19 |
28136 |
Plug |
| 20 |
5446766 |
Grommet |
| 21 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 22 |
5443578 |
AL-cover - Call your local BRP dealership |
