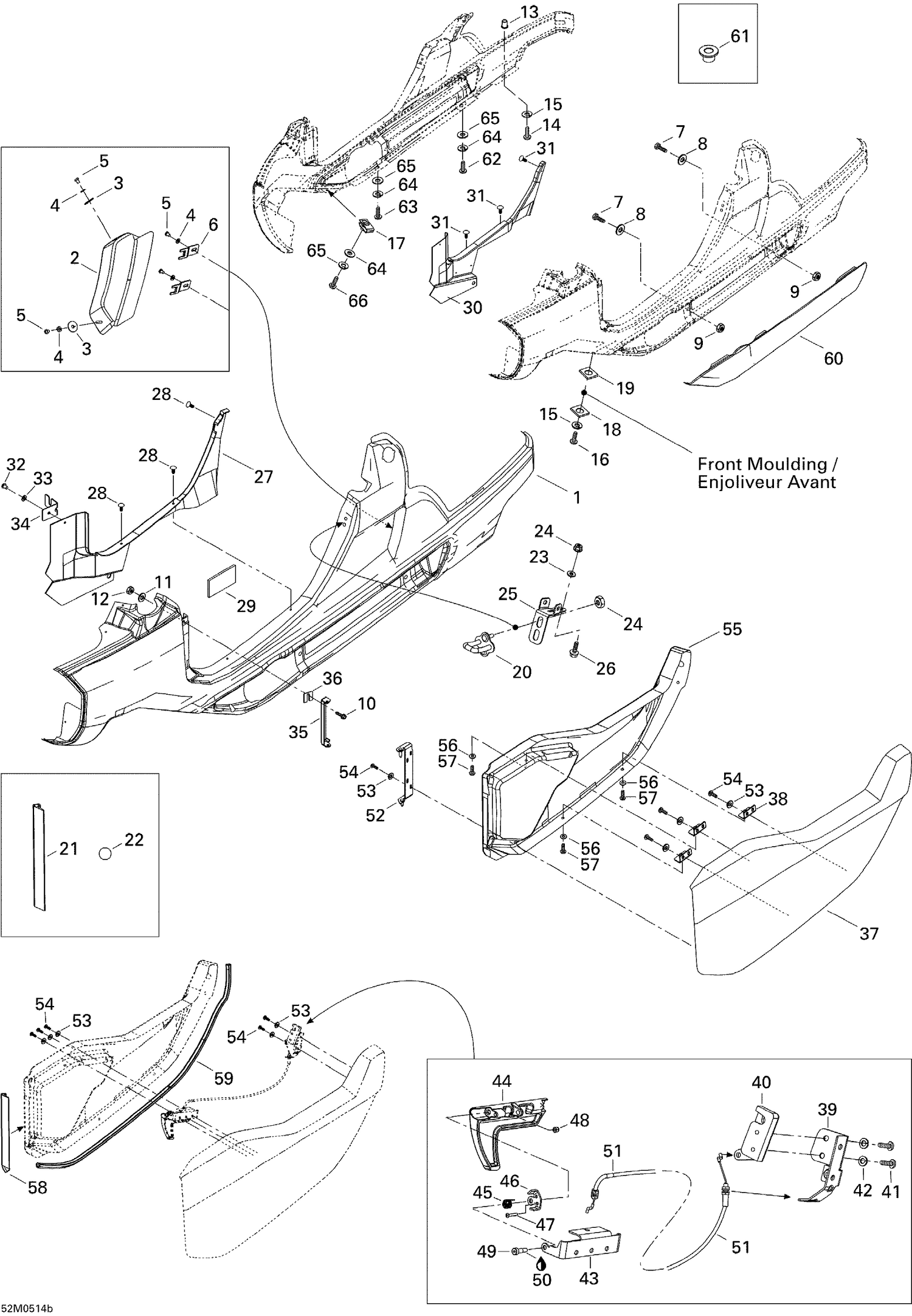

09- Body, Elite 2
Parts (77)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517302889 | Lateral Panel RH |
| 1 | 517302893 | Lateral Panel LH |
| 2 | 517303188 | RH Side Grille |
| 2 | 517303189 | LH Side Grille |
| 3 | 250200029 | Washer M6 |
| 4 | 234161471 | Lock Washer M6, Black |
| 5 | 205460860 | Socket Screw M6 X 8 |
| 6 | 517303203 | Grille Support |
| 7 | 207662044 | Hex. Flange Screw M6 X 20 |
| 8 | 234062410 | Flat Washer 6 mm |
| 9 | 232561414 | Elastic Stop Nut M6 |
| 10 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 11 | 234062410 | Flat Washer 6 mm |
| 12 | 232561414 | Elastic Stop Nut M6 |
| 13 | 517303235 | Flanged Bushing |
| 14 | 205462560 | SOCKET SCREW M6 X 25 - Call your local BRP dealership |
| 15 | 234161601 | Lock Washer Helical M6 |
| 16 | 205464060 | Socket Screw M6 X 40 |
| 17 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 18 | 517303258 | Rubber Spacer 2 mm |
| 19 | 517303259 | Rubber Spacer 5 mm |
| 20 | 517302891 | Door Hook |
| 21 | 517303280 | Seal |
| 22 | 517303317 | Cap |
| 23 | 234062410 | Flat Washer 6 mm |
| 24 | 232561414 | Elastic Stop Nut M6 |
| 25 | 517303231 | Intermediate Support |
| 26 | 207661644 | Hex. Flange Screw M6 X 16 |
| 27 | 517303091 | Interior Moulding LH |
| 28 | 517303276 | GRAY DART - Call your local BRP dealership |
| 29 | 517303301 | Seal |
| 30 | 517303092 | Interior Moulding RH |
| 31 | 517303276 | GRAY DART - Call your local BRP dealership |
| 32 | 250000147 | PHILLIPS SCREW M6 X 25 - Call your local BRP dealership |
| 33 | 250200039 | Flat Washer |
| 34 | 517303253 | Cable Support |
| 35 | 517303239 | Female Half Hinge LH |
| 35 | 517303240 | Female Half Hinge RH |
| 36 | 517303432 | Spacer |
| 37 | 517302895 | Outer Panel RH |
| 37 | 517302902 | Outer Panel LH |
| 38 | 517303165 | Inner Panel Attachment |
| 39 | 517303168 | Latch Support RH |
| 39 | 517303169 | Latch Support LH |
| 40 | 517302872 | Latch Ass'y RH |
| 40 | 517302897 | Latch Ass'y LH |
| 41 | 250000185 | SOCKET SCREW 1/4-20 X 1 - Call your local BRP dealership |
| 42 | 250200042 | Lock Washer 1/4 |
| 43 | 517303167 | Handle Support |
| 44 | 517302904 | Door Handle RH |
| 44 | 517303164 | Door Handle LH |
| 45 | 517303209 | Spring RH |
| 45 | 517303211 | Spring LH |
| 46 | 517303230 | Stop Plate |
| 47 | 205442560 | Socket Screw M4 X 25 |
| 48 | 232541414 | Elastic Stop Nut M4 |
| 49 | 250000171 | Socket Head Shouldered Screw |
| 50 | 293800060 | Loctite 243, 10 ml |
| 51 | 517303191 | Cable |
| 52 | 517303241 | Male Half Hinge RH |
| 52 | 517303243 | Male Half Hinge LH |
| 53 | 234161601 | Lock Washer Helical M6 |
| 54 | 205460860 | Socket Screw M6 X 8 |
| 55 | 517302896 | Door Inner Panel RH |
| 55 | 517302903 | Door Inner Panel LH |
| 56 | 250200039 | Flat Washer |
| 57 | 250000172 | SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 58 | 517303277 | Seal |
| 58 | 517303279 | Seal |
| 59 | 517303316 | Seal |
| 60 | 517302905 | Panel RH |
| 60 | 517302906 | Panel LH |
| 61 | 517303235 | Flanged Bushing |
| 62 | 205462560 | SOCKET SCREW M6 X 25 - Call your local BRP dealership |
| 63 | 205463060 | SOCKET SCREW M6 X 30 - Call your local BRP dealership |
| 64 | 234062600 | Flat Washer M6, Stainless |
| 65 | 234161601 | Lock Washer Helical M6 |
