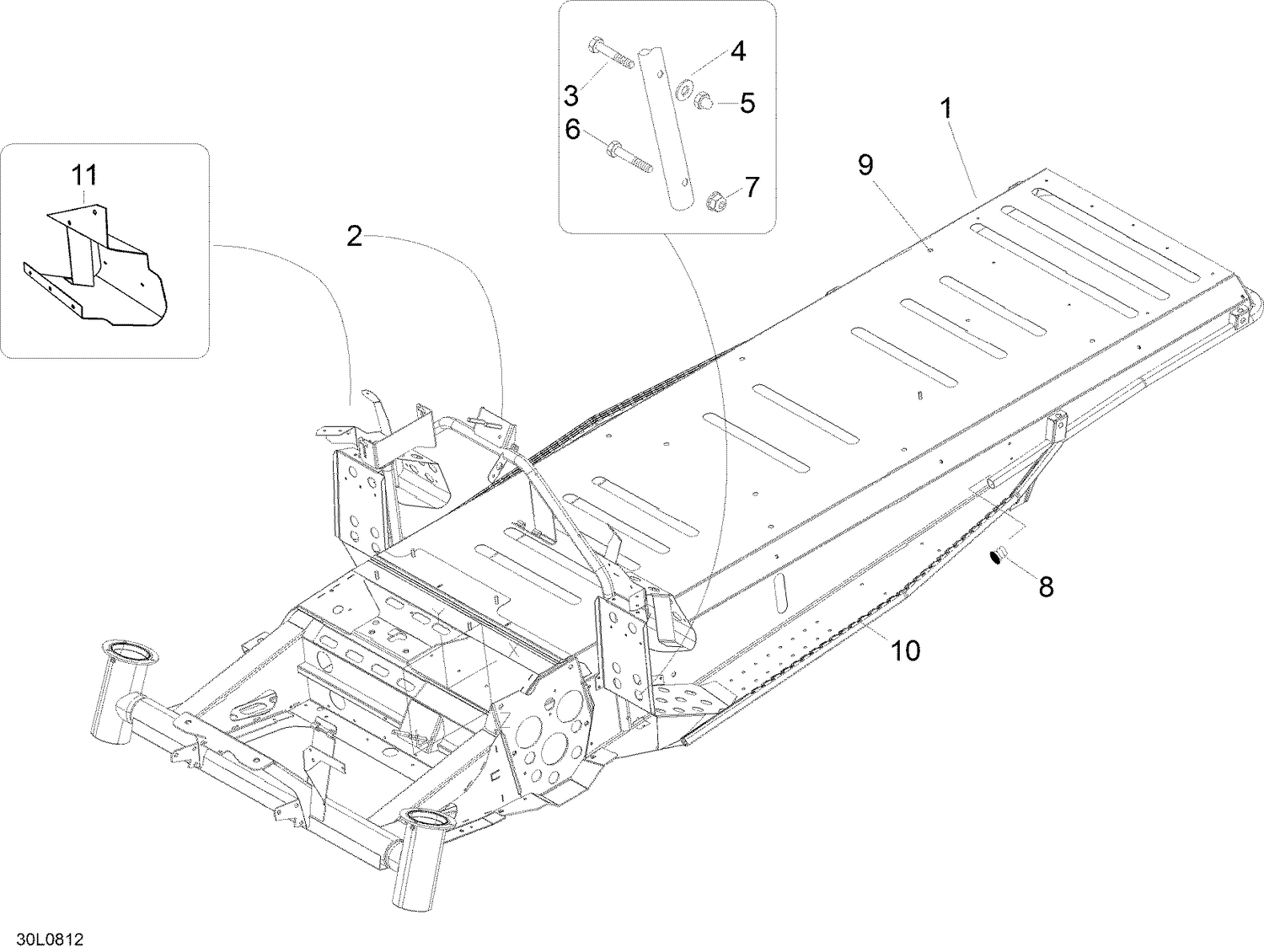

09- Frame
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 605153465 | Handle steering supp. |
| 3 | 40003 | Screw M6 x 35 |
| 4 | 20003 | Washer |
| 5 | 33051 | Nut M6 |
| 6 | 40002 | Screw M6 x 40 |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 8 | 28136 | Filler plug 16/19 |
| 9 | Not | Available As Spare Part - Clinch Nut M8 |
| 10 | 605253506 | RH REINFORCEMENT - Call your local BRP dealership |
| 10 | 605253507 | LH REINFORCEMENT - Call your local BRP dealership |
| 11 | 605253504 | RH TOE REST - Call your local BRP dealership |
